Weihua Manufacturer 5t-50t Telescopic Electromagnetic Double Beam Magnet Overhead Eot Crane Price

Payment Terms: TT or LC

Ref Price : 1000-10000 USD/SET

Supply Capability : 1500 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Feature：
    Bridge Crane
  • Rated Lifting Moment：
    Based on the design
  • Max. Lifting Load：
    50t
  • Max. Lifting Height：
    16m
  • Span：
    10.5m~31.5m
  • Place of Origin：
    China (Mainland)
  • Brand Name：
    WEIHUA CRANE
  • Certification：
    CE ISO CUTR
  • Warranty：
    1 Year
  • After-sales Service Provided：
    Field installation, commissioning and training
  • lifting capacity：
    5t~50t
  • Lifting mechanism：
    Trolley with electromagnetic chuck
  • Power Source：
    3 Phase 380V 50hz or required by customer
  • Work Class：
    A6~A7
  • Language Service：
    English; Russian; French; Spanish

Product Description

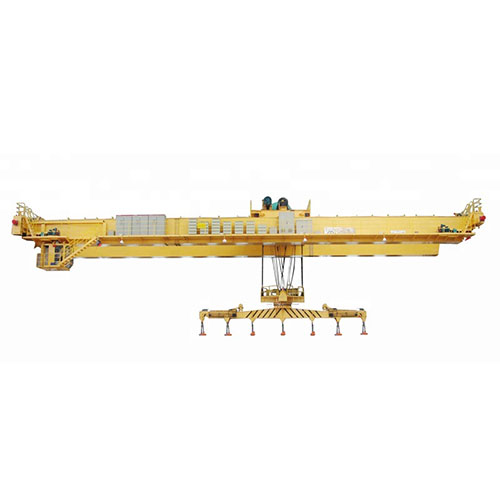

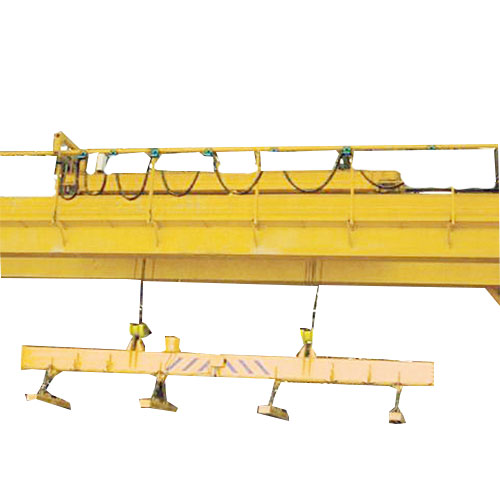

5t-50t Overhead Telescopic Electromagnetic Double Beam Magnet Eot Crane Features:
1.it is used for lifting 5t~50t stuff;
2.It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;
3.Compact structure, light weight and high lifting height;
4.The Max. span reaches 32 meters;

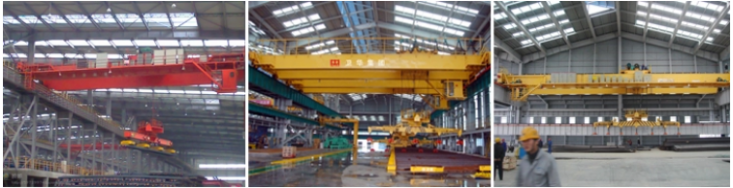

5.It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

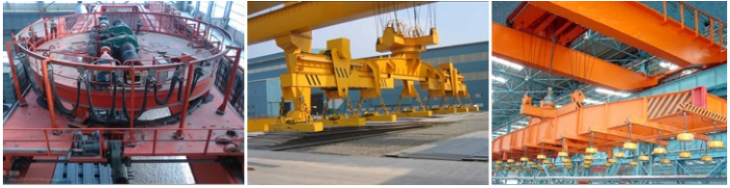

Releated electromagnetic double girder overhead crane

 Mechanism :

1. box-type shaped by wielding;
2. High quality carbon steel Q235B and Q345B;
3. the girder connected by high strength screws;
4. Welding seams are tested by X-ray and ultrasound;
5. Forged wheels;
6. Compact structure, small volume and light weight trolley;
7. Lifting mechanism is open type winch trolley;
8. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
9. Good operation performance, step less speed regulating and running smoothly;
10. Main girders Shot blasting sa2.5 after welding to release internal stresses;
11. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

Electric System:
1. Power supply through step less slide lines;
2. Lifting mechanisms and traveling mechanisms are mutually independent and could travel at the same time;
3. Control panel protection degree is IP54;
4. Reasonable components installation, convenient for check and maintenance;
5. Electric cable is suspended in cable saddle, stationary cable trolley which slides on a galvanized C-type steel;


Safety Protection Devices:
Overload limiter, limit switch (lifting and traveling), interlocking protection devices, buffer, track sweep plate, shield, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.

Specifications of magnet overhead crane

Lifting Capacity(t) Span (m) lifting height (m) working duty lifting speed (m/min) crane travelling speed (m/min) trolley travelling speed (m/min) total power
15 22.5~31.5 16 A6 13.2 36.7 101.4 63
A7 15.8 36.6 103.9 79.5
20 16 A6 12.6 36.2 89 71
15 A7 15.8 42.8 103.9 94.5
32 15 A6 12.5 37 87.3 111.3
16 A7 15.1 43.3 104.3 135.5
40 16 A6 11.7 37.5 87.3 128.5
A7 15.3 43.2 113.9 173

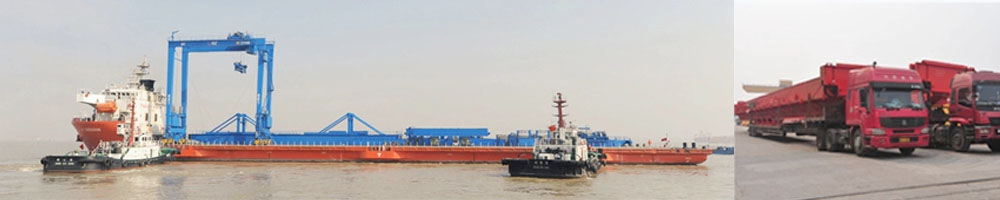

Transportation

Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
