New condition stainless steel key handle larger American type hose clamp made in China

Payment Terms: TT or LC

Ref Price : 0.01-10 USD/PIECE

Supply Capability : 8000000 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Tianjin, China
  • Brand Name:
    Shunfa
  • Usage:
    Pipe Clamp
  • Material:
    Stainless steel
  • Structure:
    Hose Clamp
  • Standard or Nonstandard:
    Standard
  • Band width:
    12.7mm
  • Range Size:
    11-20mm


Overview




Band Width 12.7mm
Sizes 11-20mm to all
Materials Stainless steel



Product Description

Best Service: Quick feedback, on time delivery, refund or replacement for any product faulty

YG item# SAE  Min. Dia. Max. Dia. Min. Dia. Max. Dia.
No. inch inch mm mm
AMH127W4006 6 7/16. 3/4. 11 20
AMH127W4008 8 1/2. 7/8. 13 23
AMH127W4010 10 9/16. 1  1/16 14 27
AMH127W4012 12 11/16. 1 1/4 18 32
AMH127W4016 16 13/16. 1 1/2 21 38
AMH127W4020 20 13/16. 1 3/4 21 44
AMH127W4024 24 1  1/16 2 27 51
AMH127W4028 28 1 1/4 2 1/4 33 57
AMH127W4032 32 1 9/16 2 1/2 40 64
AMH127W4036 36 1 3/4 2 3/4 46 70
AMH127W4040 40 2 3 50 76
AMH127W4044 44 2 1/4 3 1/4 59 83
AMH127W4048 48 2 1/2 3 1/2 65 89
AMH127W4052 52 2 3/4 3 3/4 72 95
AMH127W4056 56 3 4 78 102
AMH127W4060 60 3 1/4 4 1/4 83 108
AMH127W4064 64 3 9/16 4 1/2 91 114
AMH127W4072 72 4 5 103 127
AMH127W4080 80 4 5/8 5 1/2 117 140
AMH127W4088 88 5 1/8 6 130 152
AMH127W4096 96 5 1/2 6 1/2 141 165
AMH127W4104 104 6 3/16 7 157 178


Material
1. 201 Stainless Steel
2. 304 Stainless Steel
3.Alternate materials optional


Features
1. Simple and easy to use, without any tools.
2. Burr-free strip edges: reduced risk of damage to parts being clamped
3. Reusability: can be repeatedly opened and re-assembled
4. Uniform 360°compression and constant surface pressure.
Flexible connection; Good firmness and rot- resistance; No welding needed; Without fire danger; Saving space; no limit on pipes; Non-stop plugging and convenient installation


Related Products


Conducive to construction safety
1  Installation only requires cutting machine, roller slot machines and wrench
2  No welding power cable, welding machines, oxygen and acetylene cylinders, etc., No danger of leakage and fire hazard.
3  Even high-strength high-altitude operations, due to the simple, time period, but also easy to avoid the production safety accidents.

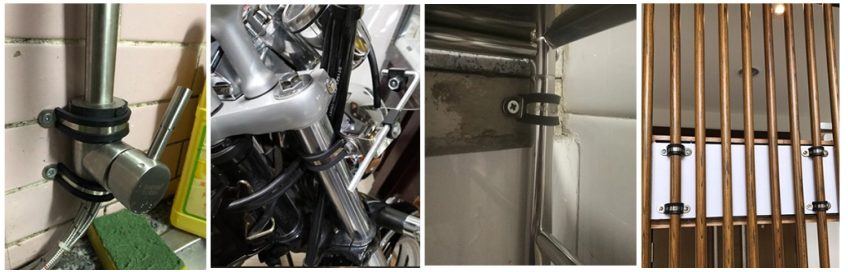

Application Area

Ground surface and underground engineering, Platform for ship building, marine, petroleum, water, supplies for coal gas, natural gas, electric power, industrial production, Wastewater Treatment, and maintenance, etc.Car, Train, Vessel, Water System, Beer Equipment, Coffee Machine, Drink Dispenser, Medical Device, Petrochemical Technology and other pipeline project.

Tianjin Shunfa Universal Clamp Co.,Ltd was founded in 2002. The manufacture covers an area of 340,000 square meters, with a construction area of 250,000 square meters and 1000 employees.The company has great experience in the clamp production industry. Years of technology and quality assurance have enabled us to have a broad customer base in the globle market.

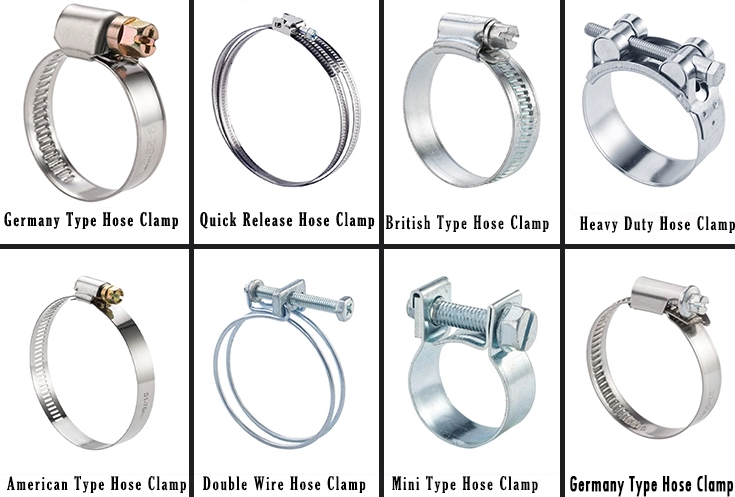

The company's main products are: stainless steel clamp standard parts and non-standard, stainless steel hose clamps, rubber and other products, and exported to Asia, Africa, Europe, the Middle East, the Amerias, and many parts of the world.

We have a first-class technology research and development demand that we provide our customers with the best quality products and services.We sincerely hope to establish long-term trade links with customers from all over the world. If you know more about our company, please contact :shunfa@sino-sources.com


Shunfa Universal Clamp main produce various specifications hose clamp,commit to provide best quality hose clamps products for overseas users.
