Payment Terms: TT or LC
Ref Price : 2000-10000 USD/SET
Product

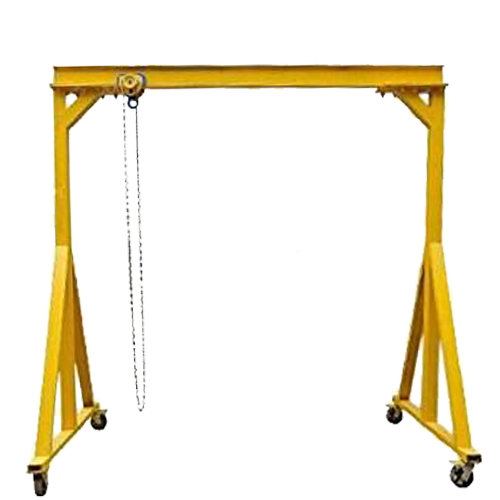

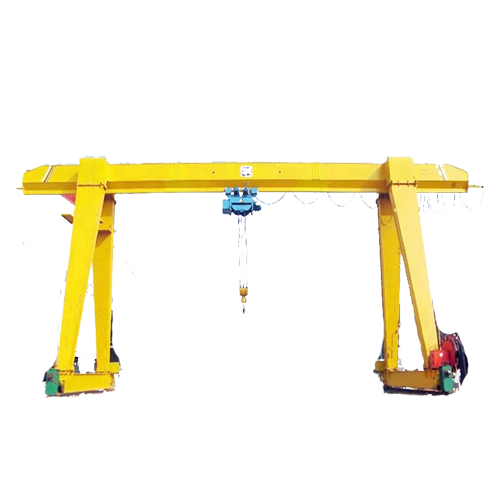

Light Single Girder Gantry Crane is also known as economic gantry crane with the Max. lifting capacity reaching 10t. This movable light gantry crane is mostly used for lifting stuff below 3t. which can be used in situations that suspension cranes are not suitable for. This crane has unique modular design so that it can be simply detached into several parts for easily transport.
This mini movable light single girder gantry crane can be mounted with many kinds of hoists, meeting the demands of various functional operations for different tasks.
Light Single Girder Gantry Crane is used in factory, shipyard, bridge and road construction,etc to do common lifting and unloading works. This kind of crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity double beams gantry crane for your choice according to your different use.
Features of Light Single Girder Gantry Crane:
1. Prefabricated standard modularization design makes it easier for transport and installation;
2. This gantry crane can be easily installed and used on any flat hardening floor;
3. It can be used in many material handling situations;
4. It is very economical for a single unit work;
5. Light weight reduces the time and cost of installation;
6. It offers a safe operation environment;
7. This crane can work with manual hoist or electric hoist;
Technical data
Lifting capacity |
T |
3 |
5 |
10 |
16 |
20 |
|||
Operation type |
Handle/remote control/cab |
||||||||
Speed |
Hoist lifting |
m/min |
8 ,8/0.8 |
8,8/0.8 |
7,7/0.7 |
3.5 |
3.5 |
||
Hoist travelling |
m/min |
20 |
20 |
20 |
20 |
20 |
|||
Crane travelling |
Handle |
20 |
20 |
20 |
20 |
20 |
|||
remote control |
|||||||||
cab |
30,40 |
30,40 |
30,40 |
30,40 |
30,40 |
||||
Motor |
Hoist lifting |
Type /kw |
ZD41-4/4.5 |
ZD1414/7.5 ZDS10.8/4.5 |
ZD1514/13 ZDS11.5/4.5 |
ZD151-4/13 |
ZD152-4/18 |
||
Hoist travelling |
ZDY12-4/0.4 |
ZDY121-4/0.8 |
ZDY21-4/0.8×2 |
ZDY121-4/0.8×2 |
YZD-4/0.8×4 |
||||
trolley travelling |
Handle |
ZDY21-4/0.8×2 |
YZR132M1-6/2.2×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
YZR160M1-6/6.3×2 |
|||
remote control |
ZDY21-4/1.5×2 |
YZR132M2-6/3.7×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
|||||
Handle |
ZDR22-4/1.5×2 |
YZR132M2-6/3.7×2 |
YZR160M1-6/6.3×2 |
YZR160M2-6/8.5×2 |
YZR160M2-6/8.5×2 |
||||
remote control |
ZDR24-4/2.2×2 |
YZR160M1-6/5.5×2 |
YZR160L2-6/11×2 |
YZR160L2-6/11×2 |
|||||
Electric hoist |
Type |
CD1/MD1 |
CD1/MD1 |
CD1/MD1 |
CD1 |
HC |
|||
Lifting height |
m |
6,9 |
|||||||
Work classifications |
A5 |
||||||||
Power |
380V 50HZ 3phase AC |
||||||||
Span |
m |
12,16,20,24,30 |

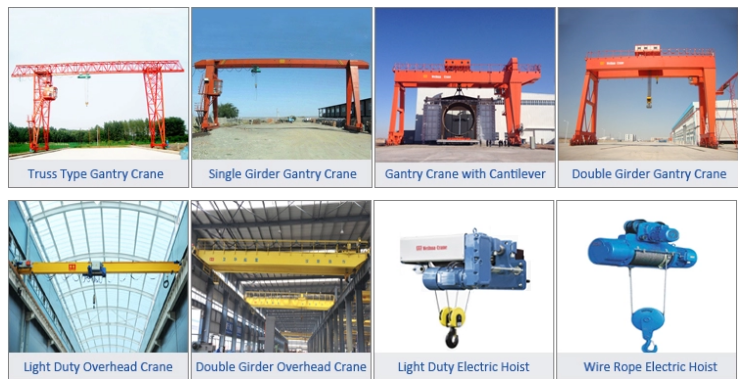

Main products

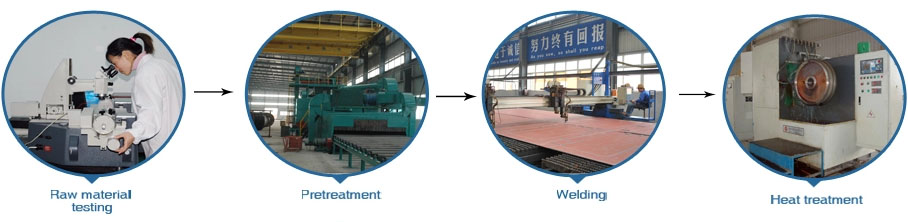

Process
