Cangzhou Qianjinyawa Machinery Manufacturing Co., Ltd.

roller shutter slabs roll forming machine with hydraulic cutting

Payment Terms: TT or LC

Ref Price : US $1,000-10,000 / Set

Supply Capability : 30 Set/Sets per Month

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Overview

Quick Details

  • Brand Name:

  • QJ

  • Model Number:

  • 80

  • Cutting blade material:

  • Cr12

  • material thickness:

  • 0.5-0.9mm

  • forming station:

  • 13

  • use:

  • door

  • Voltage:

  • 380v 3 Phase 60Hz or as your request

  • Roller material:

  • 45# steel with chromium plate

  • Production Capacity:

  • 10-15m/min

  • Dimension(L*W*H):

  • 5.5m*0.8m*1.2m

  • weight:

  • 4.5ton

Packaging & Delivery

  • Packaging Details

  • nude packing in the 40 feet container but with steel rope fixed well
    other compents such as the computer control cabint will be packed with waterproof cloth and cardboard
    if the roll forming is too long we can divide into two parts but in one package with welding

  • Delivery Time

  • Shipped in 30 days after payment



Factory Overview

roller shutter slabs roll forming machine with hydraulic cutting

Qianjin Forming----Your Best Cold Roll Forming Machine solution Supplier!!!

roller shutter slabs roll forming machine with hydraulic cutting

Roll shutter slabs machine specification

NO.

Item

Specification

1

Processing material

Color steel/galvanized

2

Processing thickness

0.5-0.9mm

3.

main motor power

4KW with Cycloidal reducer

4.

Shaft

Φ50mm,high grad 45#steel quenched and tempered treatment, hard chrome plated 0.05-0.07mm

5.

forming station

12 steps

6. Straighten rollers 5 groups
7. sidewall connect bar 25mm zinc plated

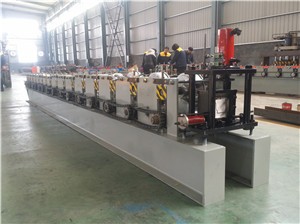

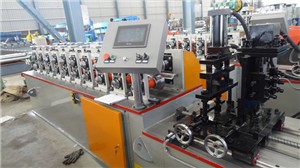

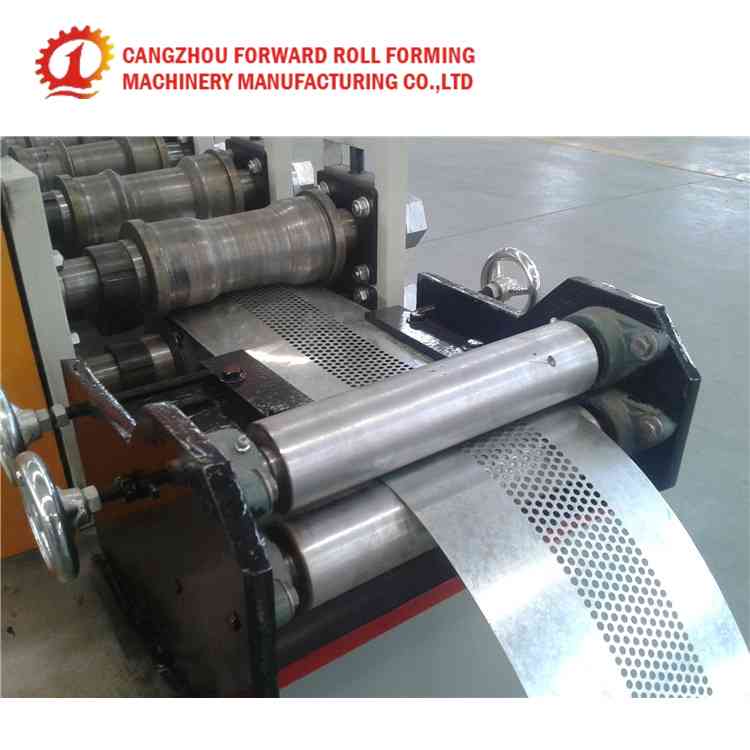

Roller shutter slabs Machine picture





Orther choice

roller shutter slabs roll forming machine with hydraulic cuttingroller shutter slabs roll forming machine with hydraulic cutting

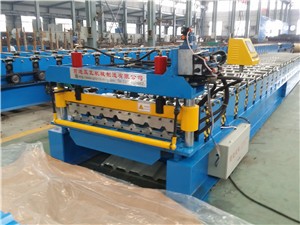

Rain gutter machine                            Roofing sheet making machine



roller shutter slabs roll forming machine with hydraulic cutting


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
