Rubber Tyred Container Gantry Crane Manufacturer

Payment Terms: TT or LC

Ref Price : 5000-50000 USD/SET

Supply Capability : 1700 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Product Name:
    Rubber Tyred Container Gantry Crane / RTG
  • Capacity:
    35t, 40t
  • Working Level:
    A6, A7, A8
  • Span:
    23m, 27m

Rubber Tyred Container Gantry Crane Description:

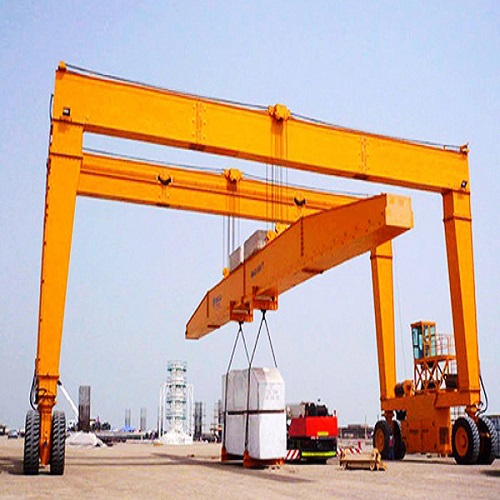

Rubber tire container gantry crane is employed to handle containers, boats/yacht, large component at the loading/unloading places and container yard. This rubber tyred crane is fitted with multiple hooking point's spreaders to meet the needs of different lifting situations. The whole crane can carry out 360° steering with flexible movement.






Full hydraulic drive for crane traveling mechanism and lifting mechanism with Step less speed change. The long traveling use hydraulic closed circuit with good transmission efficiency, less fault. There are safety indicator and overlord limiter to ensure safety of operators and products. All operation are controlled by CAN-BUS control.



Features of Rubber Tyred Container Gantry Crane:

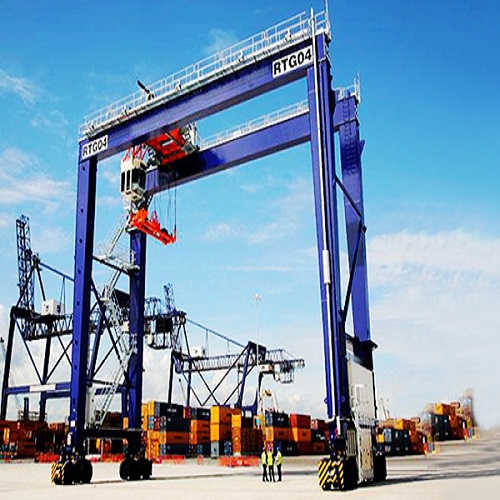

1. Rubber tyred container gantry crane is usually called RTG for short, which is employed to stack containers in container storage yards. Rubber tyred container ganry crane is flexibly moved by its own rubber tires for transshipping containers.

2. Weihua Group rubber tyred container gantry crane is equipped with specialized spreaders to lift standard-sized 20GP, 40GP, 45HQ containers and hydraulic storage tanks.

3. The trolley and crane traveling mechanisms equip three-in-one reducer with convenient maintenance.

4.  The tires of this container gantry crane can rotate 90°and move obliquely at 20° and 45°.

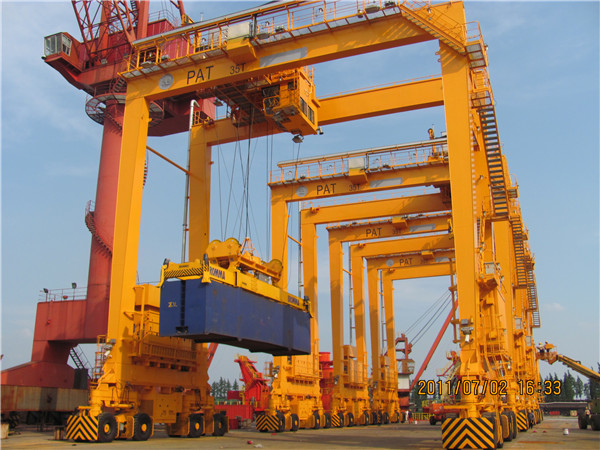

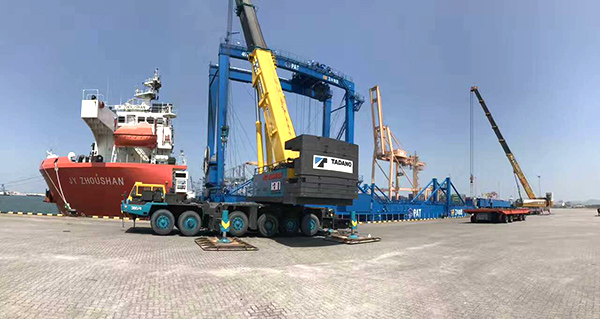

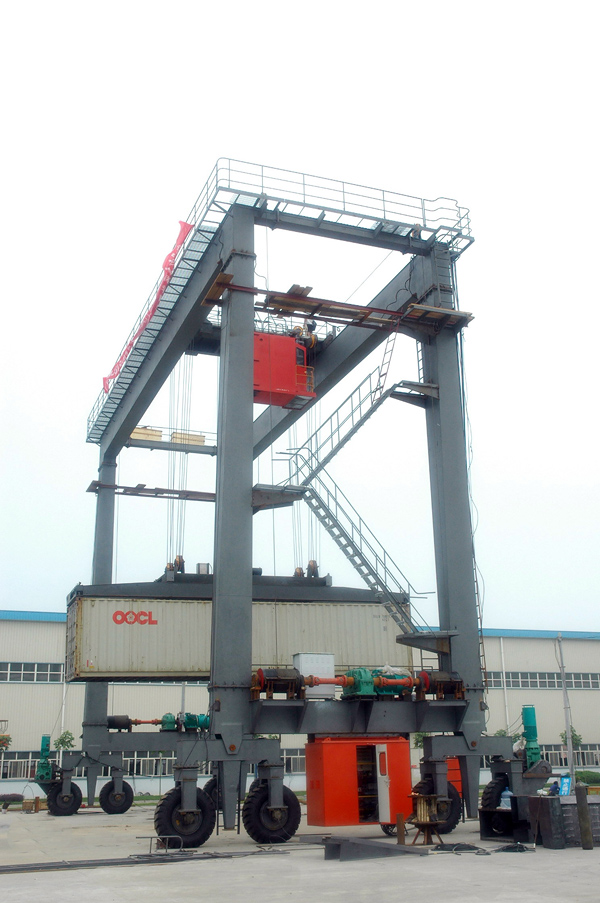

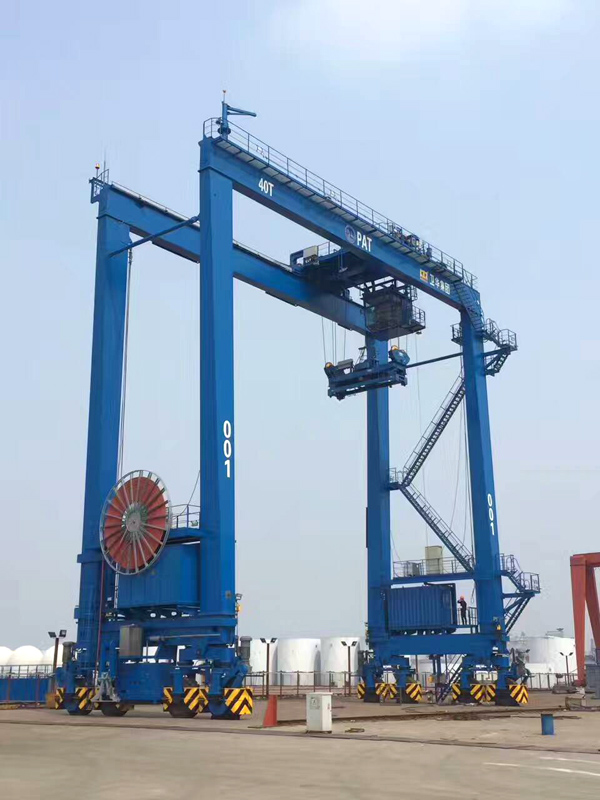

Rubber Tyred Container Gantry Crane Working status:










Specification of Rubber Tyred Container Gantry Crane:


Model LJ35/40-23 Light Type LJ40-32
Lifting Capacity(under spreader)(t) 35, 40 40
Work Duty A7, A8 A6, A7
Span (m) 23, 47 23, 47
Lifting Height (m) 12.2~17.8 16.5
Stack Layers/Passing Layers  3/4~5/6 5/6
Container Model 20′,40′, 45′ 20′,40′, 45′
Spreader Rotating Angle ±5° ±5°
Hoisting Speed (m/min) 13/26, 23/52 12/18, 18/28
Cross Travel Speed (m/min) 50,70 24
Long Travel Speed (m/min) Full Load-90, Without Load-130 Full Load-20 Without Load-40
Max. Wheel Load (KN) 310 310
Total Rating (KW) 150, 230 110, 150
Power Supply Electric, Diesel Engine, Electric-disel Engine


Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
