self propelled 5 ton mobile hydraulic scissor lift

Payment Terms: TT or LC

Ref Price : 10000-30000 USD/PIECE

Supply Capability : 200 PIECE

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Place of Origin:
    Henan, China (Mainland)
  • Brand Name:
    Weihua
  • Lift Mechanism:
    Scissor Lift
  • Power:
    2.2kw
  • Min. Lifting Height:
    0.5m
  • Max. Lifting Height:
    14m
  • Table Size:
    1200*800*55mm
  • Overall Dimensions:
    2500*1350*2300mm
  • Weight:
    135kg
  • Certification:
    CE ISO SGS
  • Warranty:
    12 Months
  • Scissor Lift Material:
    Steel

self propelled 5 ton mobile hydraulic scissor lift

Product Description


It is ideal lift platform for aerial maintain and clean, used indoor or outdoor. With AC driven system.
Electric lift makeslow noise and no emission when working. 90-degree steering can run in both high and low speeds, The scissor lift can be easily and flexibly operated in crowded working conditions such as construction site,elevator,and narrow corridor. Liftdown, turning,forward and backward movements can be easily operated by single person.

Lift height: 4m - 16m
Load capacity: 100kg - 3000kg
Platform size and power: as your requirement
Product name:Movable hydraulic scissor lifting platform
Model:SJY

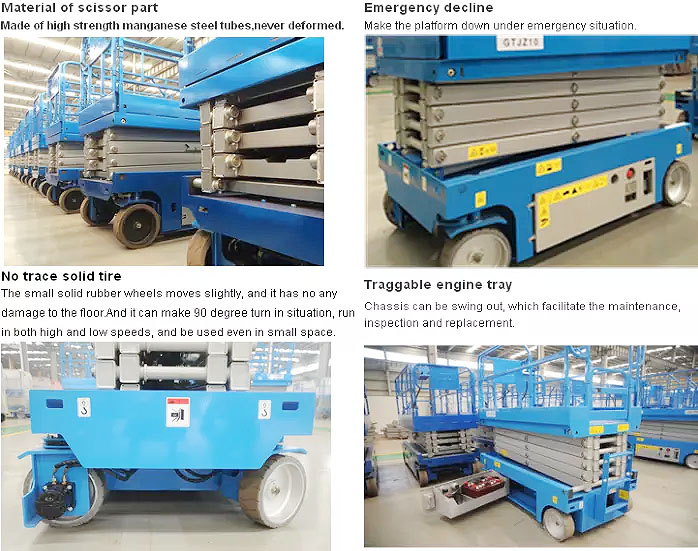

Material of scissor part
Made of high strength manganese steel tubes,never deformed.
Emergency decline
Make the platform down under emergency situation.
No trace solid tire

The small solid rubber wheels moves slightly, and it has no any damage to the floor.And it can make 90 degree turn in situation, run in both high and low speeds, and be used even in small space.

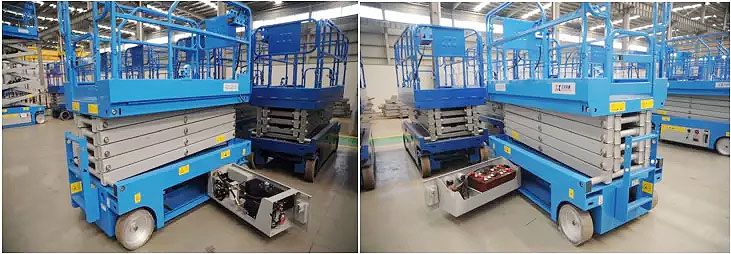

Traggable engine tray
Chassis can be swing out, which facilitate the maintenance, inspection and replacement.

self propelled 5 ton mobile hydraulic scissor lift

models

items


07series


08series 12series 14series
GTJZ

0807HD


0808HD

1008HD

1012HD

1212HD

1412HD

1414HD

1614HD

capacity

230k

g

380kg 230kg 450kg 320kg 320kg 450kg 200kg
Capacity-extension deck 113kg 113kg 113kg 113kg 113kg 113kg 113kg 113kg
Max occupancy


2

2 2 2 2 2 2 2

Max working

height-A

7.80m 8.20m 10.10m 10.10m 12.00m 13.80m 13.50m 15.70m

Max platform

height-B

5.80m 6.20m 8.10m 8.10m 10.00m 11.80m 11.50m 13.70m
Length-C

1.86m


2.42m 2.42m 2.42m 2.42m 2.42m 2.79m 2.79m
Width-D

0.76m


0.83m 0.83m 1.17m 1.17m 1.17m 1.27m 1.27m

Height(raillings

unfolded)

2.19m 2.24m 2.37m 2.36m 2.49m 2.62m 2.49m 2.62m

Height-E(railling

folded)

1.85m 1.94m 2.07m 1.80m 1.93m 2.06m 1.93m 2.06m

Platform size

(L×w-F)

1.67m× 0.74m 2.27m× 0.83m 2.27m× 0.83m

2.27m× 1.14m

2.27m× 1.14m 2.27m× 1.14m 2.64m× 1.14m 2.64m× 1.14 m

Extension

deck

size -G

0.90m 0.90m 0.90m 0.90m 0.90m 0.90m 0.90m 0.90m

Ground

clearance

(stowed)

0.10m 0.10m 0.10m 0.10m 0.10m 0.10m 0.10m 0.10m

Ground

clearance

(elevated)

0.02m 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m 0.02m
wheelbase

1.40m


1.87m 1.87m 1.87m 1.87m 1.87m 2.24m 2.24m

Min turning

radius

(inside)

0m 0m 0m 0m 0m 0m 0m 0m

Min turning

radius

(outside)

1.60m 2.25m 2.25m 2.23m 2.23m 2.23m 2.25m 2.25m

Lifting/

driving motor

24V/3.0Kw 24V/3.3Kw 24V/3.3Kw 24V/3.3Kw 24V/3.3Kw 24V/4.5Kw 24V/4.5Kw 24V/4.5Kw

Driving speed

(stowed)

3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h 3.5km/h

Driving speed

(elevated)

0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h 0.8km/h

Lifting/

lowering speed

18/22sec


24/34sec 28/40sec 28/40sec 45/36sec 50/38sec 60/45sec 80/60sec
batter

4×6V/

225Ah

4×6V/

225Ah

4×6V/

225Ah

4×6V/

225Ah

4×6V/

240Ah

4×6V/

260Ah

4×12V/

300Ah

4×12V/

300Ah

charger

24V/25A


24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A 24V/25A
Max gradeability

0.25


0.25 0.25 0.25 0.25 0.25 0.25 0.25
Max tilt

3°/1.5°


3°/2° 3°/1.5° 3°/2° 3°/2° 3°/1.5° 3°/2° 3°/1.5°
tires

Φ323×

100mm

Φ381×

127mm

Φ381×

127mm

Φ381×

127mm

Φ381×

127mm

Φ381×

127mm

Φ381×

127mm

Φ381×

127mm

Weight

1260kg


1980kg 2100kg 2230kg 2480kg 3100kg 3020kg 3180kg




 Brake release

manual loweing valve design make it easy to realse the machine and let it down automatically when emergency happens or when the machine is out of power.

Removable platform control panel (DTC controller)

the joystick on the platform is portable and removable, we use DTC controlling system to guarantee the stability of the whole machine movements, including lifting, lowering, steering, forward, backward etc



Application

It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline.



Features

1)Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platforms.

2)Moving forward,turning around and lifting up are easily operated.

Performances

Reliability and Versatility ,Enhance Effiency

Excellent Mobility Compact body can easily pass through single and double channel doorway,using non-marking solid tire.
Special Locations Features of low noises is perfectly suitable for the noise-sensitive environment,such as office buildings,shopping malls, hotels,schools,ect.
Compact and Flexible

Most models are equipped with zero inside turning radius capacity, can be easily and flexibly operated in crowded working conditions such as construction site ,elevator,and narrow corridor.Lift-up,lift-down,turning,forward and backward movements can be easily operated by one person.


More self-propelled Hydraulic Scissor Lift Platform

self propelled 5 ton mobile hydraulic scissor liftself propelled 5 ton mobile hydraulic scissor lift

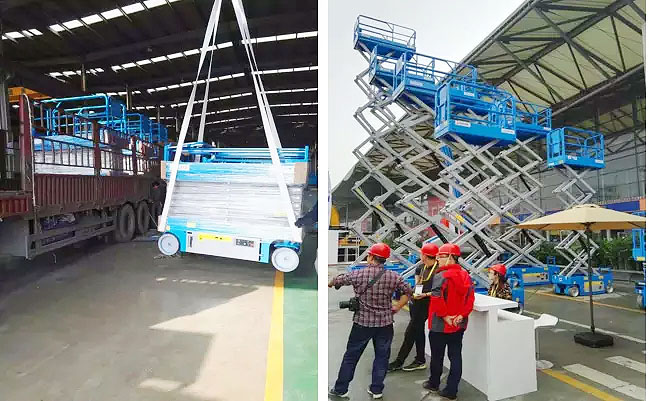

Shipment pictures

self propelled 5 ton mobile hydraulic scissor lift



Company Information

The products meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.

self propelled 5 ton mobile hydraulic scissor liftMORE PRODUCT SERIES


self propelled 5 ton mobile hydraulic scissor lift

WEIHUA founded China’s first crane design R & D team and there are 500 personnel now, developed the anti-swing technology independently and has obtained more than 100 patents. Weihua has been the post-doctoral scientific research workstation of Henan Province for four consecutive 4 years. Weihua has its own independent laboratory and has passed the CNAS certification, it is the only one industrial crane production and testing base appointed by government.

self propelled 5 ton mobile hydraulic scissor lift





Company Information




From 1988 to the present, WEIHUA Group started from an area of less than 3 acres, 100000 yuan investment in the workshops to the current development of The employees is more than 6800, the whole coverage production base of large crane is 3420000 square meters. WEIHUA annual sales reached 1 billion yuan in 2006. Won social-wide recognition and praise by credit management and good service, took the lead go through the ISO9001 quality certification in the local area and same industry by its strict quality management and stable product manufacturing quality, WEIHUA initially forms the enterprise culture, enterprise image and widely brand influence with Weihua characteristics.

Further more, as the designated supplier of Jiuquan Satellite Launch Base, Weihua accelerated the launch of Chang'e successfully.

self propelled 5 ton mobile hydraulic scissor lift




Packaging and Shipping




self propelled 5 ton mobile hydraulic scissor lift






FAQ




1. What's the information should I provide when inquiry?
More details or drawings, better.
A: Lift capacity B: span C: lift height D: power sourceor other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons .B: remote control with push buttons
C: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
4. Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
5. How can we install the crane?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
6. Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
