Cangzhou Qianjinyawa Machinery Manufacturing Co., Ltd.

shutter door roll forming machine

Payment Terms: TT or LC

Ref Price : US $1,000-10,000 / Set

Supply Capability : 20 Set/Sets per Year

Loading Port : TianJin

Inquire Now

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

Quick Details

  • Condition:

  • New

  • Type:

  • Tile Forming Machine

  • Tile Type:

  • Steel

  • Use:

  • Floor

  • Production Capacity:

  • 12m/min

  • Place of Origin:

  • Hebei, China (Mainland)

  • Brand Name:

  • QJ

  • Model Number:

  • Request

  • Power(W):

  • 5.5KW

  • Voltage:

  • 380V 50Hz 3phases

  • Dimension(L*W*H):

  • 5200*800*1200MM

  • Weight:

  • 3Tons

  • Certification:

  • CE ISO

  • Warranty:

  • 18 Months

  • After-sales Service Provided:

  • Engineers available to service machinery overseas

  • Color:

  • Choosed

  • Raw material:

  • 45# Steel

  • Control system:

  • PLC Control

  • Usage:

  • Building

  • Suitable to process:

  • Galvanized Board

  • Name:

  • shutter door machine

  • The shaft:

  • 70mm Solid

  • Cutting blade material:

  • Cr 12 High Grade Steel

  • Thickness:

  • 0.3--0.8mm

  • Product name:

  • shutter door roll forming machine

Packaging & Delivery

  • Packaging Details

  • shutter door roll forming machine :
    Nude packing in one 20 feet container, but fixed well with steel rope, other components are with waterproof.

  • Delivery Time

  • Shipped in 35 days after payment

Product Description

  shutter door roll forming machine



shutter door roll forming machine details

1

Suitable material Color steel sheet , galvanized steel sheet,
2 Main motor power 5.5KW with Cycloidal reducer
3 Hydraulic station power 4KW
4 Hydraulic oil 40#
6 Thickness 0.3mm~0.8mm
7 Diameter Φ70mm
8 Electric tension 380V 3phase 50HZ
9 Material of roller High grade 45# forged steel
10 Rolling galvanization thickness 0.05mm
11 Processing speed 12-16m/min
12 Processing precision within 10m+/-1.00mm
13 Material of cutting blade Cr12 quenched







Product Overviews

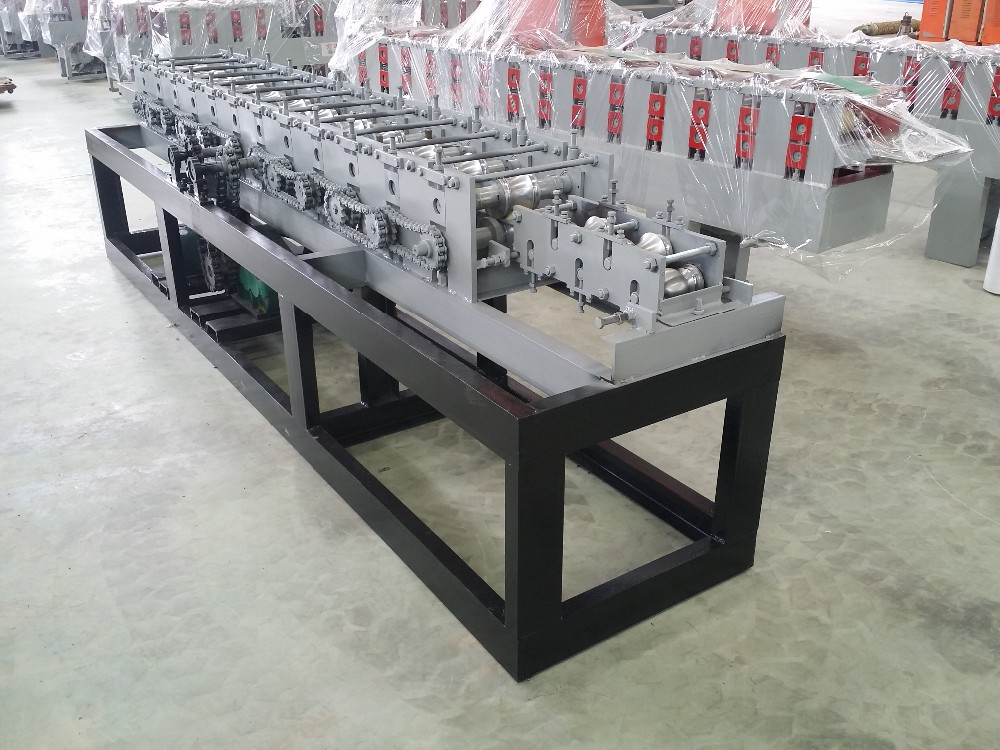

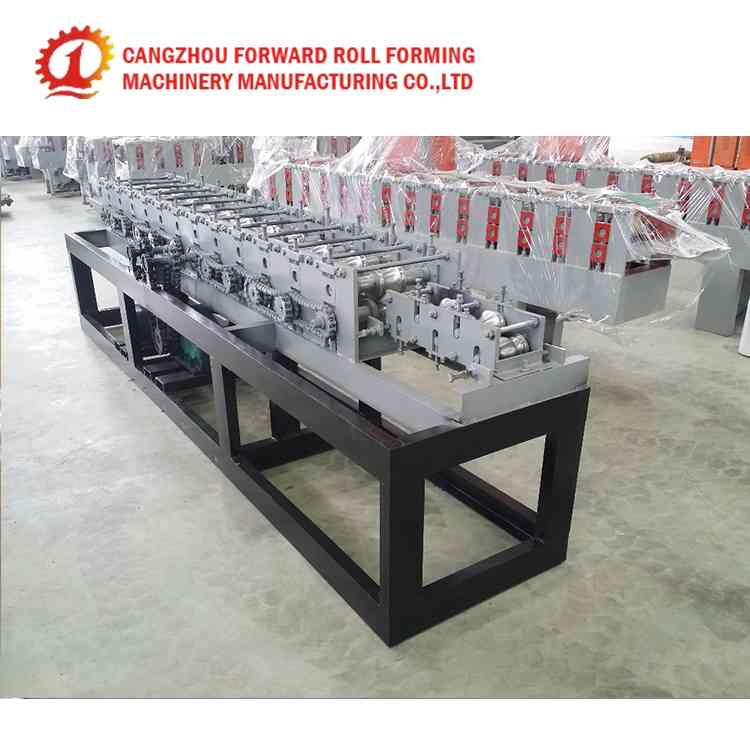

 shutter door roll forming machine overviews



shutter door roll forming machineshutter door roll forming machineshutter door roll forming machine

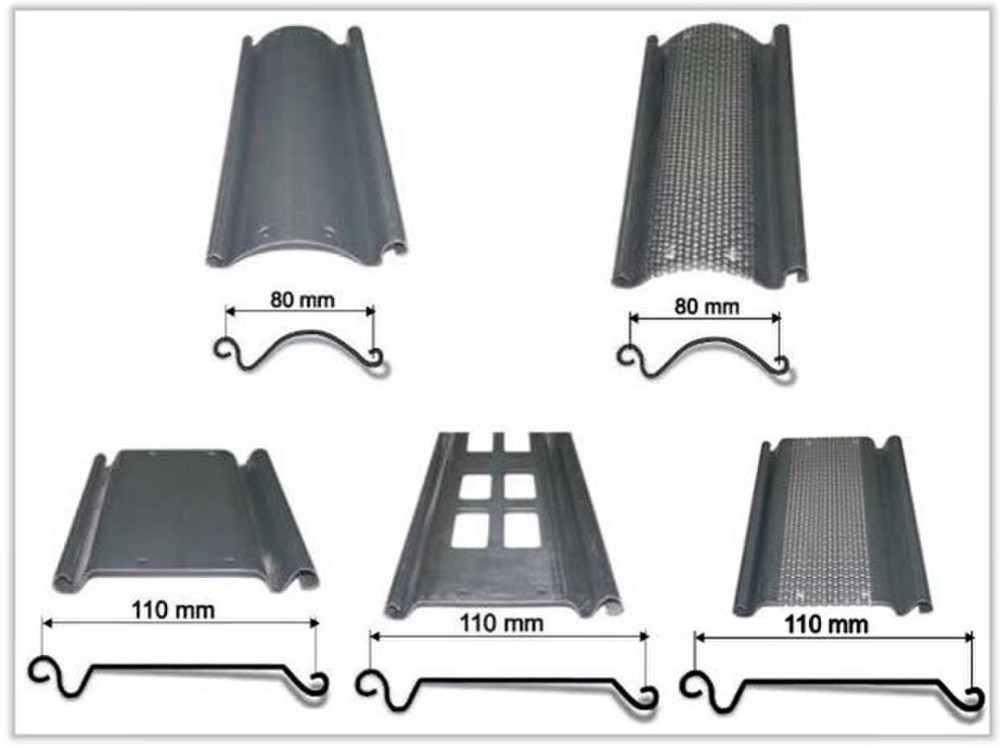

panel shows

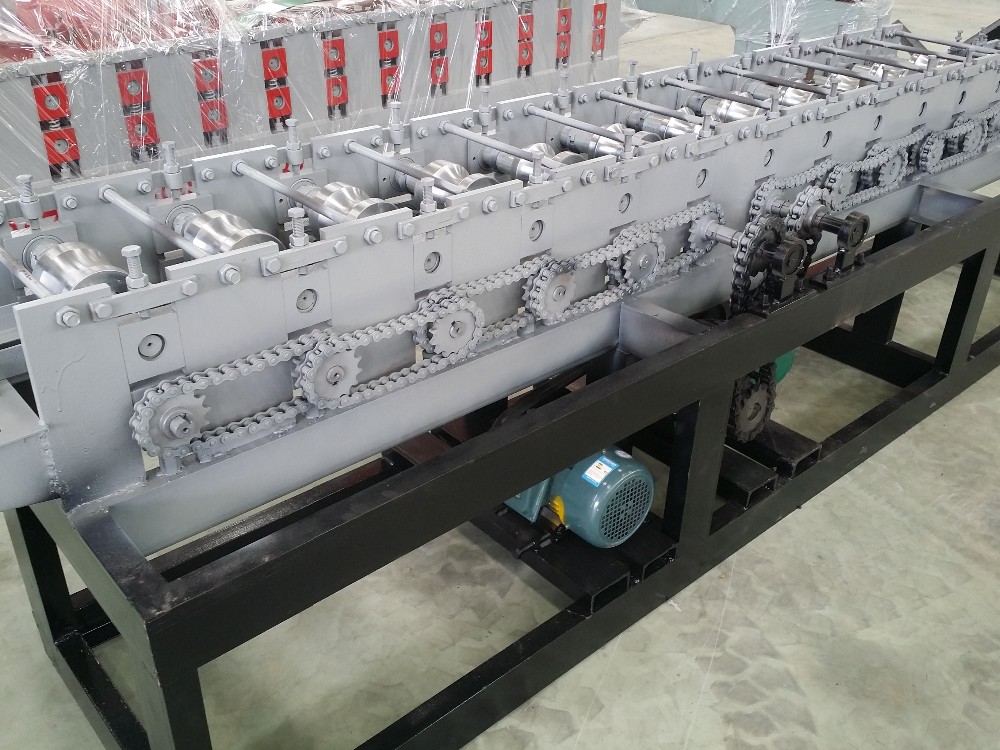

 shutter door roll forming machine overviews



shutter door roll forming machineshutter door roll forming machine


FAQ

Q1. What's your delivery time?

A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.



Q2. Do you have after-sales support?

A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.



Q3. Do you sell only standard machines?

A3:No, most of our machines are built according to customers specifications,using top brand components.



Q4. What will you do if the machine is broken?

A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.



Q5. Can you be responsible for transport?

A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?

A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).

2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

shutter door machine shutter door machine shutter door machine

roller shutter forming machine
shutter door roll forming machine steel door frame machines

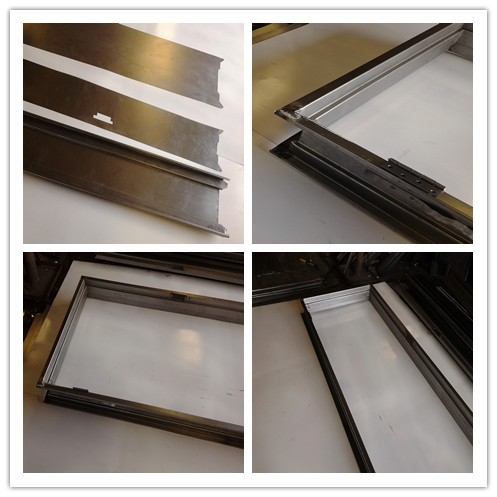

real life

shutter door roll forming machine

Trade Shows

shutter door roll forming machine

Company information

shutter door roll forming machine


Cangzhou Forward Roll Forming Machinery Manufacturing Co., Ltd.

We have been devoted to designing, developing and manufacturing pressure equipment for 10 years. We have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system.

Our main products are all construction equipment ,such as color steel roofing sheet roll forming machines, C&Z purline machine, steel roof tile roll forming machines, floor deck forming machines, EPS sandwich panel roll forming machine, highway guardrail forming machine, shearing machine, bending machine, slitting machine.
