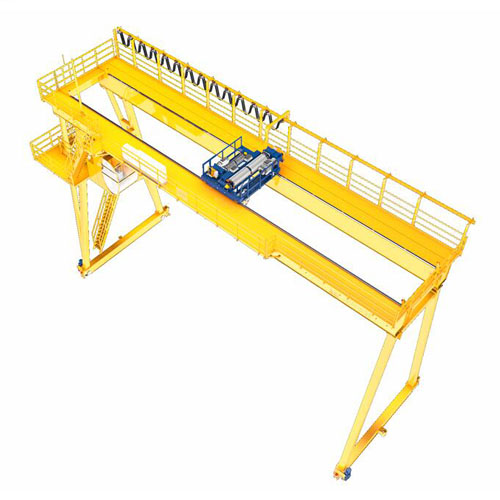

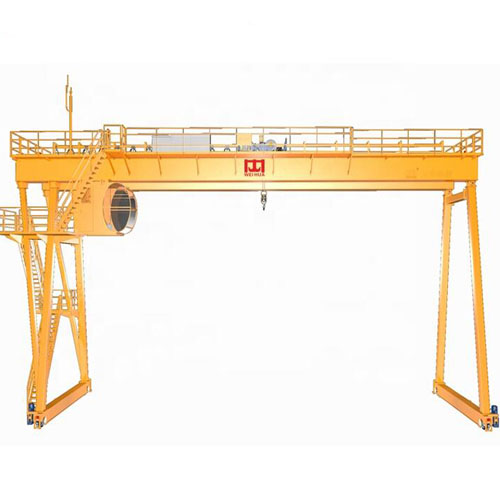

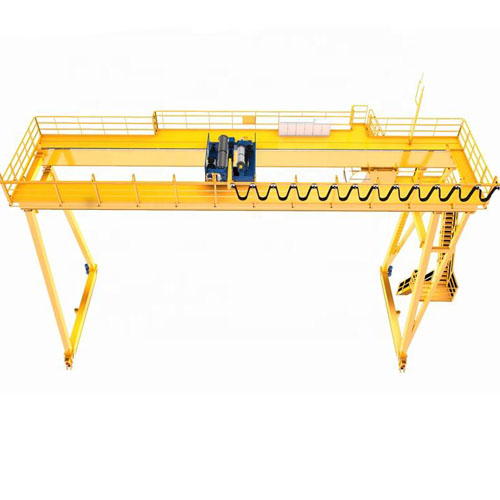

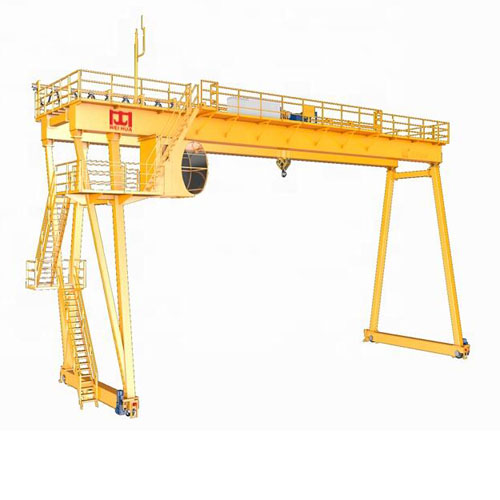

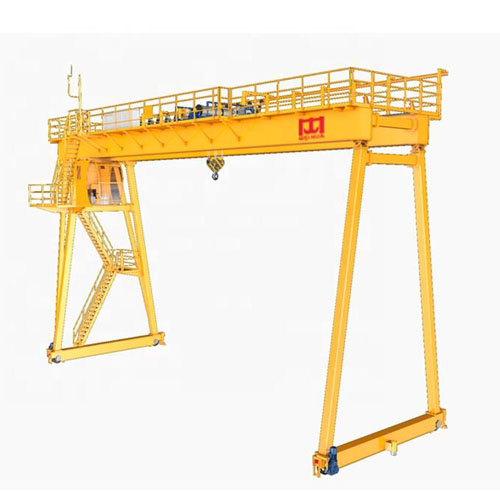

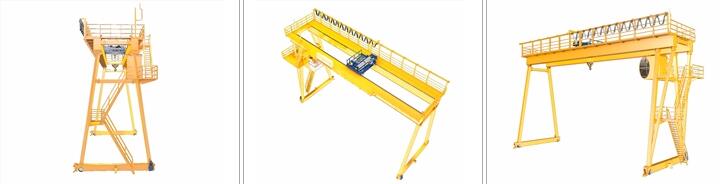

WEIHUA european type mobile double girder gantry crane

Product Description:

Double girder gantry crane is one kind of heavy duty lifting machinery. It is the ideal lifing equipment in factories, mines, agriculture, electric power, construction building site, dock and warehouse for installation of the machines, lifting the cargos, loading and unloading the trucks. The MG model double girder gantry crane 50 ton is suitable for general loading, unloading and moving works in outdoor storage.

Advantages:

1.compact structure, resonable layout, safe reliability;

2.convenient maintenance, excellent swivelling function advantages.



Features:

1. It is used for lifting 5t~800t stuff;

2. It has beautiful box-typed welded main girders. Computer optimized design for main girders with good performance and light weight;

3. Compact structure, light weight and high lifting height;

4. The Max. span reaches 35 meters;

5. It's widely used in workshops, metallurgy, warehouses and assembly shops etc.

Mechanism :

1. High quality carbon steel Q235B and Q345B;



2. connected by high strength screws;

3. Welding seams are tested by X-ray and ultrasound;

4. Compact structure, small volume;

5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;

6. Good operation performance, step less speed regulating and running smoothly;

7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

Electric System:

1. Control panel protection degree is IP54;

2. Reasonable components installation, convenient for check and maintenance;

Safety Protection Devices:

Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.



Main Components:

electric motor	Gearbox	Brake
low-vibration, quiet running Thermal contacts to protect against overheating Designed for extended operation periods, classified in accordance with FEM IP 54 enclosure the motor brand is customized	Three stage, helical gear reducer Low running noise Lubrication for life the brand is customized	DC disc brake with brake release monitoring (optional) Minimum safety factor of 1.8 Rapid response through integrated brake modul
slide wire	crane cable	steel wire rope
safe and reliable, low electric shock hazard energy conservation, low loss long service life easy for installation and maintenance	insulated conductor high waterproof grade high safety factor	wear-resisting, corrosion resistance high tensile strength good flexibility
wheel	couplings	steel drum
Manufactured from fine gain, fully killed, vacuum degassed forged medium carbon steel Provide an additional 40% load carrying capability over rim toughened wheels	Compensation for axial, radial and angular misalignment Convenient axial plugging assembly No brittlement at low temperature Good slippery and frictional properties Resistance to chemical corrosion	Generously dimensioned drum for long rope service life Reliable operation even in critical environments It encircles the drum completely so that the rope may not uncoil even when the hoist is in unload condition

Technical Data

Specifications of gantry crane:

capacity (t)	span (m)	lifting height (m)	working duty	main hois speed (m/min)	aux. hoist speed (m/min)	crane travel speed (m/min)	long travel speed (m/min)	rail	total power (KW)
10	18~35	10	A5	0.8~7.8	/	3.3~33	3~30	43kg/m	21.74
20/5	18~32	10	A5	0.6~6	0.78~7.8	3.5~35	3~30	43kg/m	39.
32/5	18~26	10	A5	0.5~5.2	0.78~7.8	3.1~31	3~30	43kg/m	59
	26~35	12	A5
50/10	18~26	10	A5	0.4~3.9	0.78~7.8	3.6~36	3~30	43kg/m	71.4
	26~35	12	A5
75~800	Customized

Why Choose Us:

After-Sales Service:

Our after-sales service provide:

1. 14 months warranty when products leave the factory, or 12 months warranty after installation

and commissioning in addition to the human damage factors.

2. 2 years spare-parts provided for better maintenance.

3.Professional technical staffs provide installation, commissioning and training services.

4.Delivery with English user manual, parts manual, product certification and other relevant certificates.

5.Technical advisory for any time and Engineers available to service machinery overseas
