ZSW Vibrating Feeder made in China

Payment Terms: TT or LC

Ref Price : 1-50000 USD/SET

Supply Capability : 50000 SET

Loading Port : TianJin

Inquire Now Chat Online

Sino-Sources Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Qulck Details

  • Condition:
    New
  • Application:
    quarry, building
  • Power Type:
    Electric
  • Capacity(t/h):
    showing in parameter
  • Model Numbe:
    ZSW series
  • Power(W):
    showing in parameter
  • Dimension(L*W*H):
    showing in paratmeter
  • Weight:
    showing in paratmeter
  • Certification:
    ISO9001:2008
  • Warranty:
    3 years
  • After-sales Service:
    rovided: Engineers available to service machinery overseas

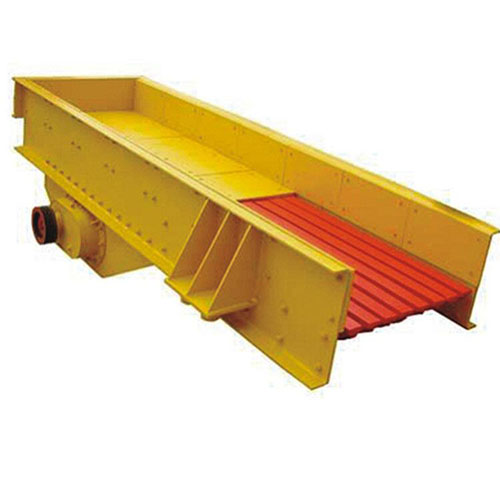

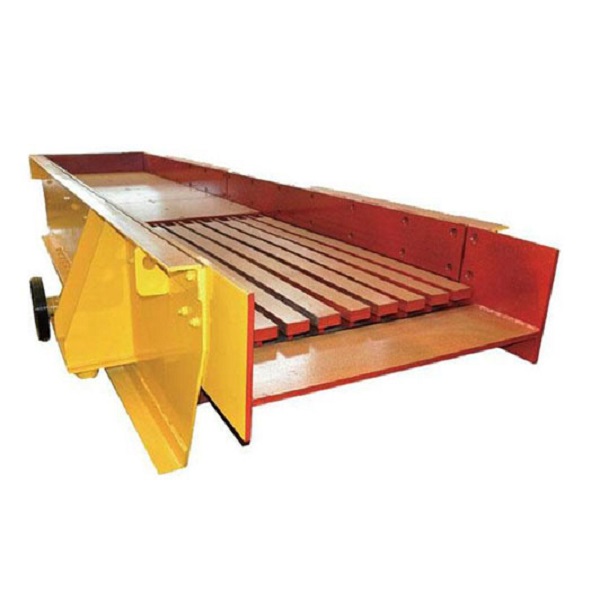

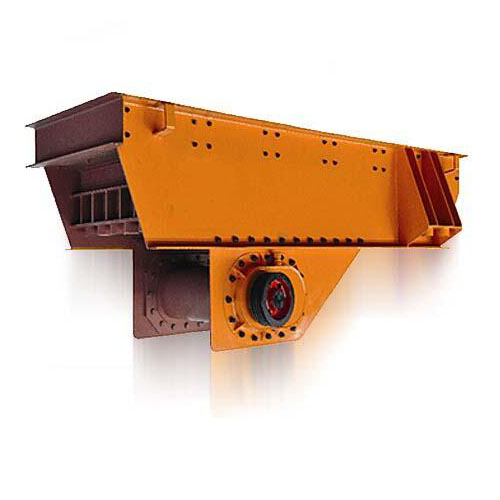

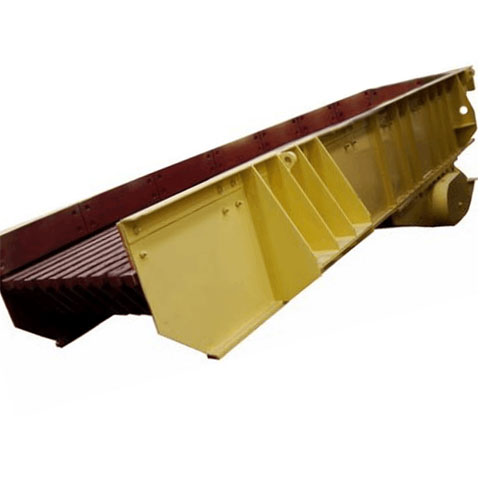

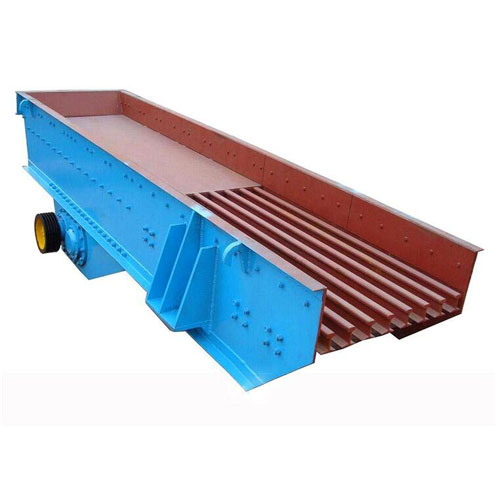

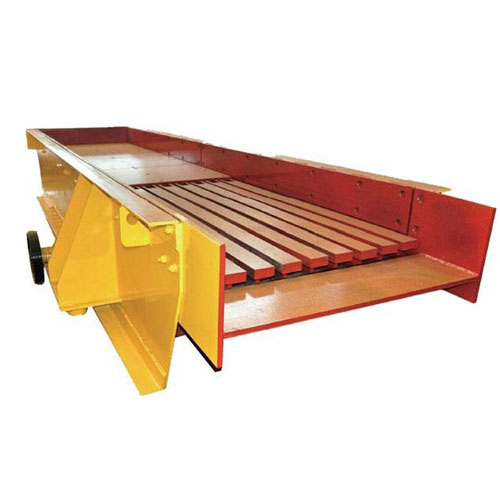

ZSW Vibrating Feeder Description:


As a kind of linear vibrating-type feeding machine, the series of feeding machine applies the exciters with the stable vibration, reliable operation and long service life, therefore, it can make the continuous and uniform feeding for the crusher, enhance the productivity and continuous working capacity of crusher machinery, as well as carrying out the initial screening for materials. In general, it is used for feeding materials to the jaw crusher. Therefore, it has been widely used for the crushing & screening combination equipment in the mineral separation, building materials, water conservancy, chemical industry and other fields, such as, which can feed and dose materials to the crusher, coal preparation, transport and packaging machinery.


Structural Features:


1. It has the initial screening capacity.
2. It can make the continuous and uniform feeding.
3. It has favorable material liquidity without blockage.
4. It is easy to make installation and repairing.


Vibrating Feeder Specification:


Specification
Model Max feed granularity (mm) Processing capacity (t/h) Power (kw) Double vibration amplitude (mm) weight (t)
ZSW380x95 500 96-210 11 9 4.1
ZSW490x110 580 160-350 15 10 5.3
ZSW600xl30 800 400-560 22/30 10 7.5
ZSW600xl50 1000 460-615 30/37 9 8.7
ZSW600xl80 1200 600-1000 37/45 9 12.6

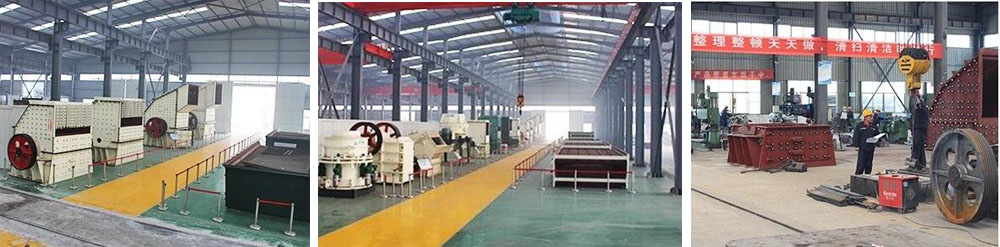

Factory

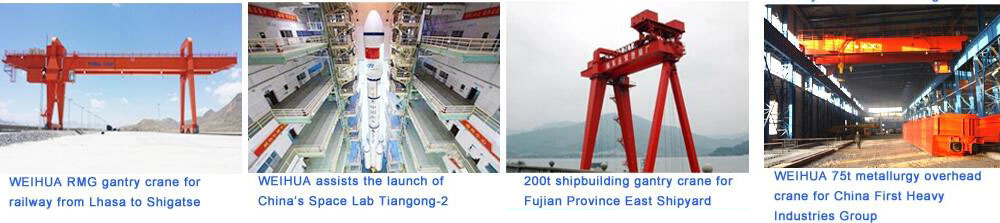

Other Products




Customer Visiting:



Weihua Group, a leading crane manufacturing company in China, was Founded in 1988. We has been committed to heavy machinery researching and marketing.


The main product covers shipbuilding gantry crane, lifting machinery, port container crane, heavy mining machinery and construction machinery, etc. The whole coverage of Weihua Group is 3,420,000 m2 with 6,800 employees.


Weihua adheres to scientific and technological innovation and owns a 600-people R&D team, 494 patents, CNAS laboratory, etc. For the cranes, Weihua have made many breakthroughs which include anti-sway crane system, CNC high precision positioning crane system, self-climbing crane for wind power maintenance and so on.


In recent years, Weihua cranes have been employed to serve China's Aerospace Engineering projects such as launching of Shenzhou spacecraft, Long March carrier rockets and Tiangong space laboratory. You can also find Weihua products in the fields of manufacturing, metallurgy, nuclear power, railway,port, petrochemical and wind power.


Weihua products also find its places in the global markets and won much praise from108 countries like America, Japan, Russia, Singapore, Korea, Thailand, Malaysia, Mexico, etc.


Our success comes from customers' success. Welcome to Weihua.
