Wall type jib crane introduction:

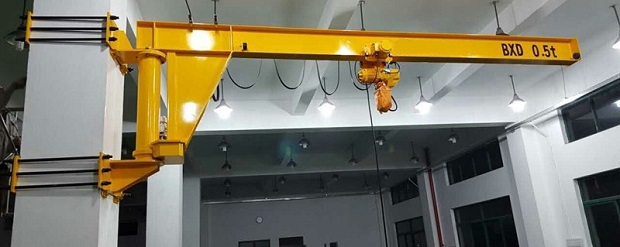

BX type wall mounted jib crane (also known as: wall column type jib crane, wall hoist, wall type jib crane) , consists of a bracket, an arm device and a chain electric hoist. The cantilever is fixed on the wall or cement column and can be rotated according to the user's needs. The swivel part is divided into manual swivel and electric swivel. The electric chain hoist is mounted on the cantilever rail for lifting heavy objects.

Wall type jib crane features:

The wall type cantilever crane has the advantages of novel structure, reasonableness, simplicity, convenient operation and operation, flexible rotation, light weight, flexible load movement, etc. It is an energy-saving and efficient material lifting equipment.

Wall type jib crane application:

This type of cantilever crane can be widely used in the lifting of transportation of production lines, assembly lines, warehouses and docks in factories, mines and workshops.

Specification of BX wall mounted jib cranes:

Type		BX0.125	BX0.25	BX0.5	BX1	BX2	BX3
Rated lifting weight（T）		0.125	0.25	0.5	1	2	3
Lifting height（m）		3	3	3	3	3	3
Maximum radius of gyration（m）		3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6	3 4 5 6
Maximum working radius（m）		L－200mm
Minimum working radius(m)		1	1	1	1	1 1.5 1.8
Boost speed（m/min）		8/2	4/1，10/2.5	5/1.25，10/2.5	5/1.25 8/2	4/1	4
Horizontal running speed（m/min）		7，14，28
Swing speed（r/min）		0.8
Swing angle（°）		180
Motor capacity	Swing motor（kw）	0.37	0.37	0.37 0.55	0.37 0.55	0.55 0.75 1.1	0.55 0.75 1.1
	Lifting motor（kw）	0.2/0.05	0.2/0.05 0.5/0.13	0.5/0.13 1.0/0.25	1.0/0.25 1.5/0.35	1.5/0.35	2.3
	Running motor（kw）	0.14	0.14	0.14	0.2	0.2	0.4
