Quick Details

• hole distance：

  125mm
• Warranty：

  1 Year
• Place of Origin：

  China
• Selling Units：

  Single item
• Outer Tube：

  48mm/56mm/60mm
• Single package size：

  XX cm
• Material：

  Q195 / Q235 / Q345
• Project Solution Capability：

  graphic design
• Design Style：

  Industrial
• Model Number：

  steel prop
• Inner Tube：

  40mm/48mm
• type：

  heavy duty or light duty
• After-sale Service：

  Online technical support
• Surface treatment：

  Powder Coated/HDG/electro galvanized
• hole amount：

  18 - 20 pcs
• Brand Name：

  youfa
• Thickness：

  1.8mm/ 2.0mm/2.2mm/2.4mm/3.0mm
• Type：

  Steel prop
• Advantage：

  Stable
• Application：

  outdoor
• Certificate：

  BV certification

Product Description

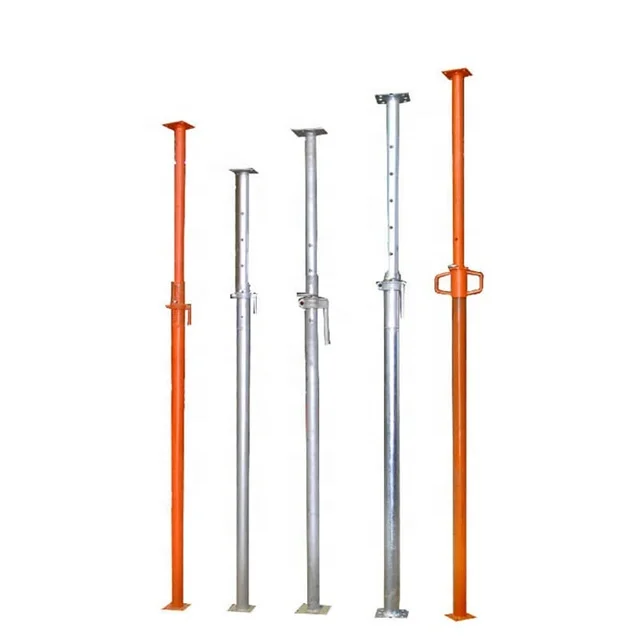

steel props

Adjustable Height Prop is for shoring with level plate on construction.
Four type steel props are available, such as Spanish Prop, Italian Prop. Middle East Prop and Push-pull Prop.
Normal widely used in multi construction and building.
In order to suit the project and environment, painted or galvanized surface can be provided, various & reasonable length is

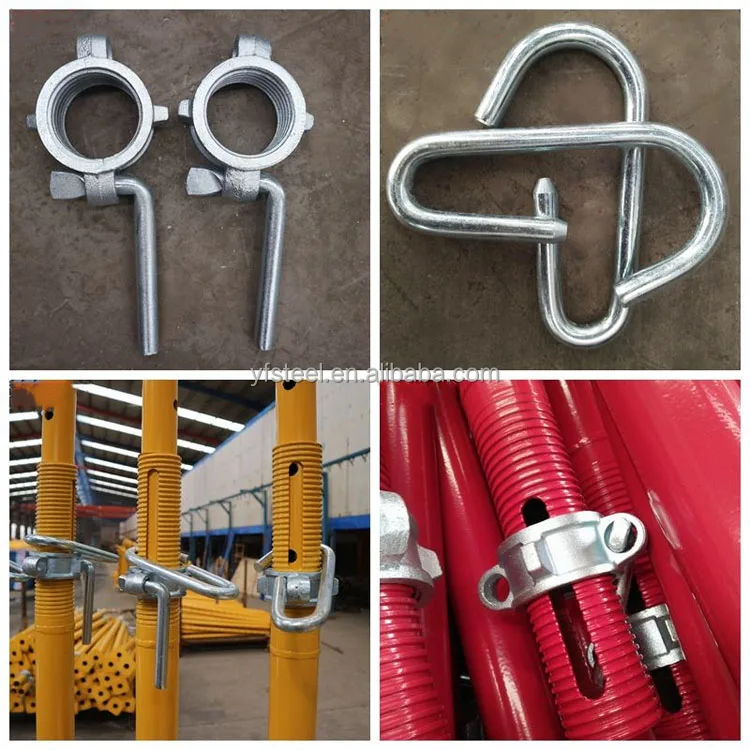

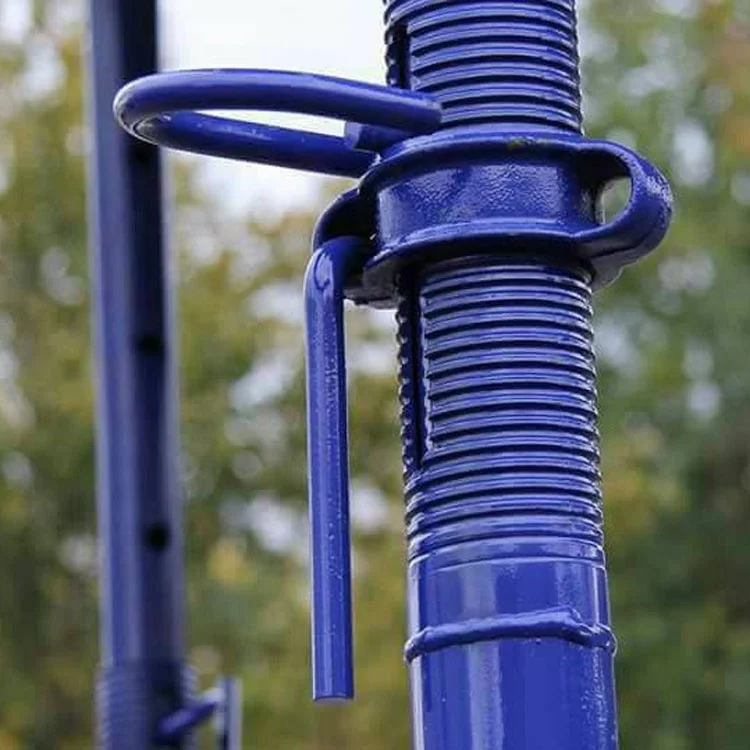

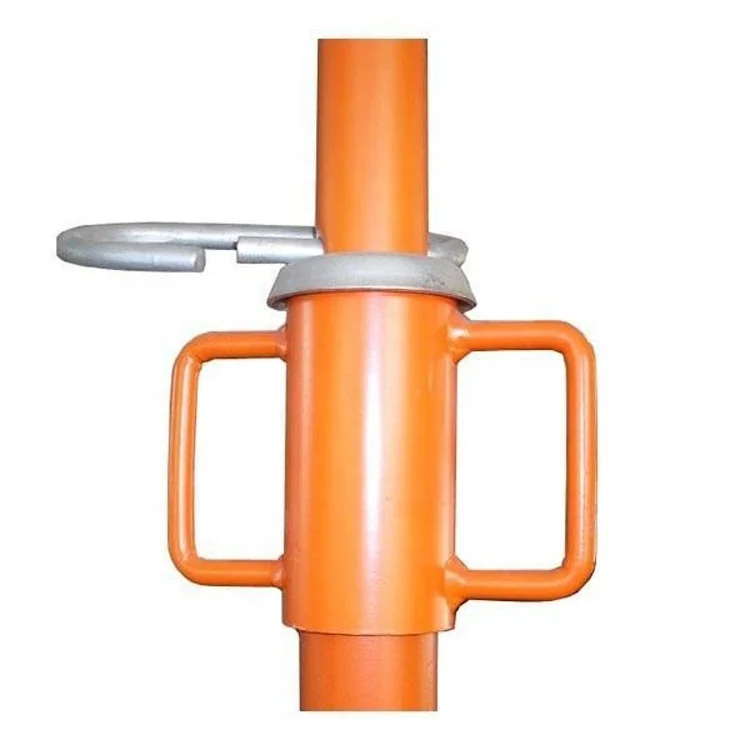

available, and with the option of the cup nut or sleeve, on iron or cast iron, or with the External thread or internal.
The props are usually used.

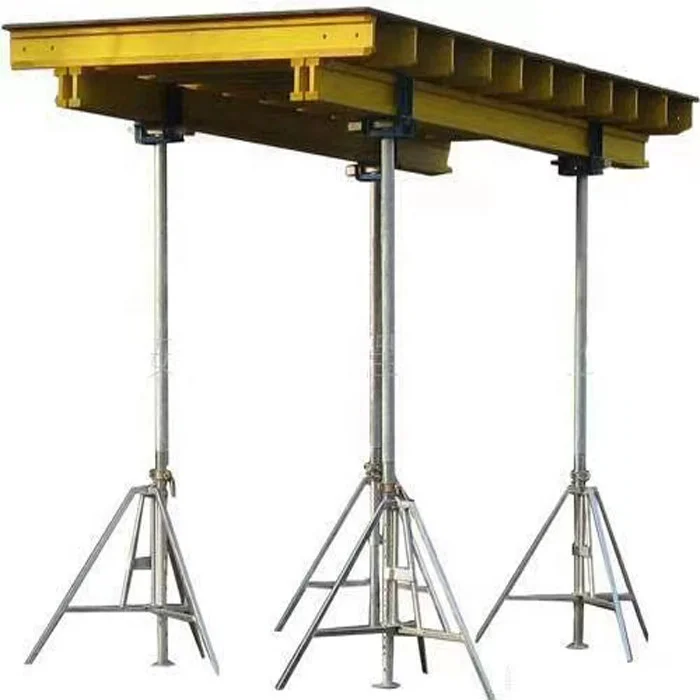

To support slab formwork.
To cater for different widths between walls.
To support concrete beams
Prop Advantage:
Long using time.
Recycling and Cycle use.
use simply
Normal characteristic strength for prop: 20.4kN to 51.0kN
Standard: EN 1065:1998

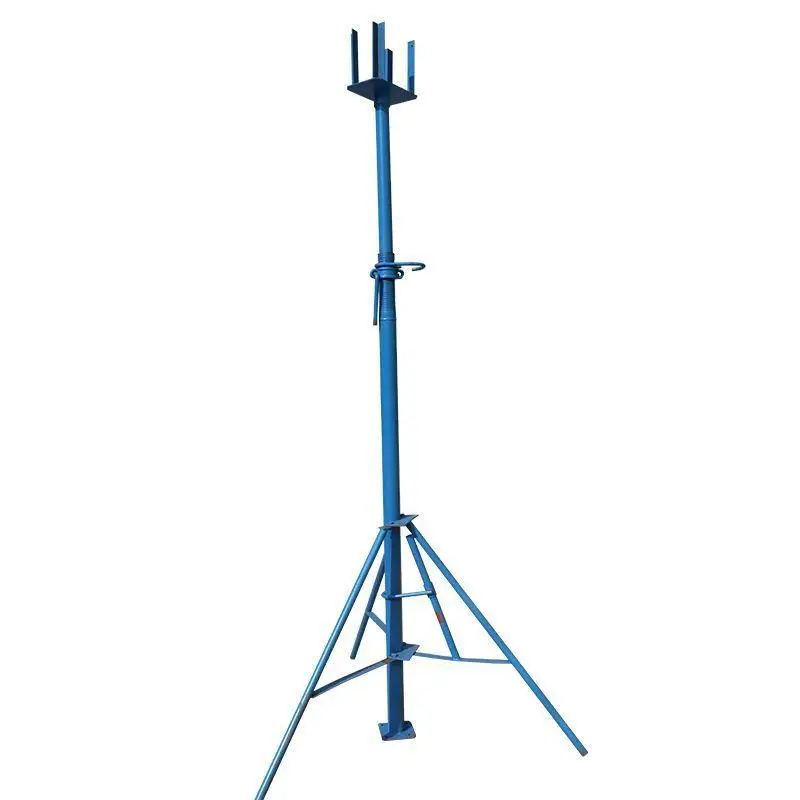

Tripod

Tripods can be fitted with steel props, scaffolding. Surface treatment:Painted,electro galvanized Supporting height:680/800mm Material:Q235

Specification

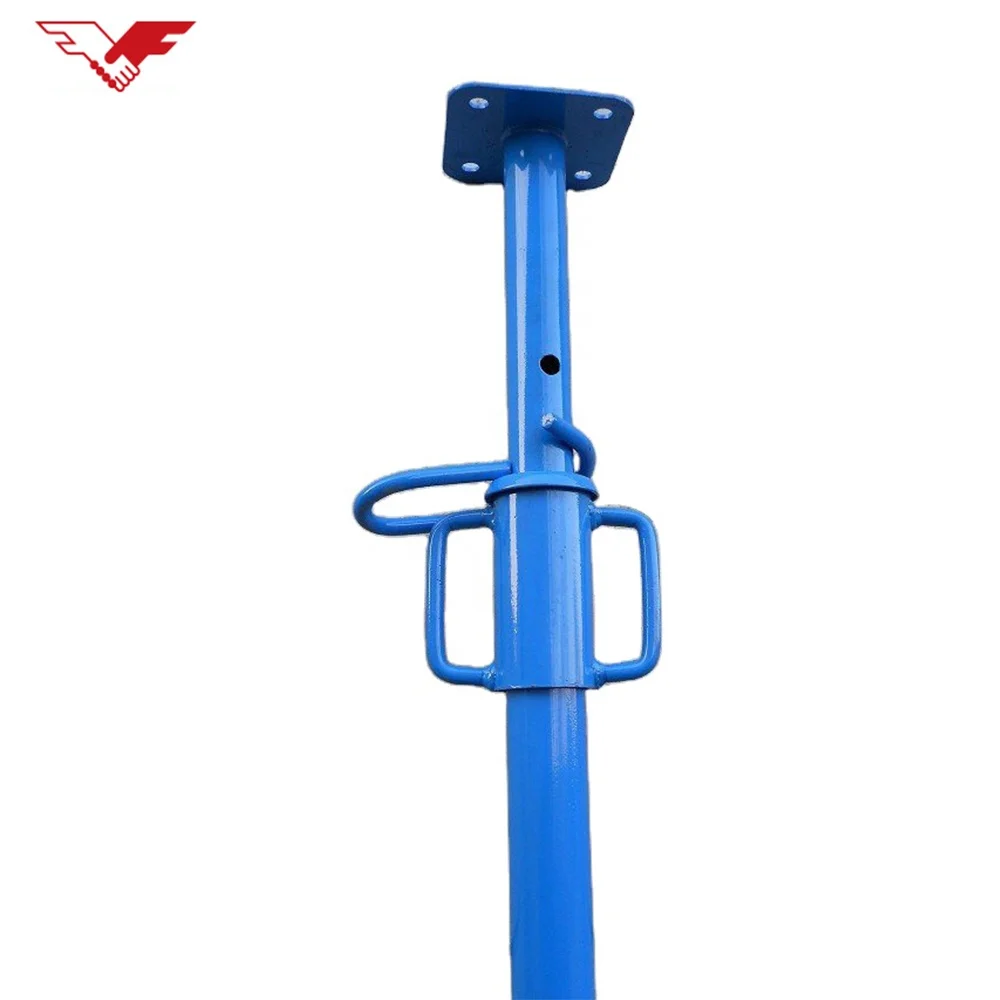

light duty Italian prop
adjustable height	outer tube	inner tube	wall thinkness
1600-2900mm	56mm	40mm	1.5-2.75mm
1800-3200mm	56mm	40mm	1.5-2.75mm
2000-3600mm	56mm	40mm	1.5-2.75mm
2200-4000mm	56mm	40mm	1.5-2.75mm
surface treatment	painted,powder coated,electro-galvanized,hot dip galvanized

light duty Spanish prop
adjustable height	outer tube	inner tube	wall thinkness
800-1400mm	48mm	40mm	1.5-2.5mm
1600-3000mm	48mm	40mm	1.5-2.5mm
2000-3500mm	48mm	40mm	1.5-2.5mm
2200-4000mm	48mm	40mm	1.5-2.5mm

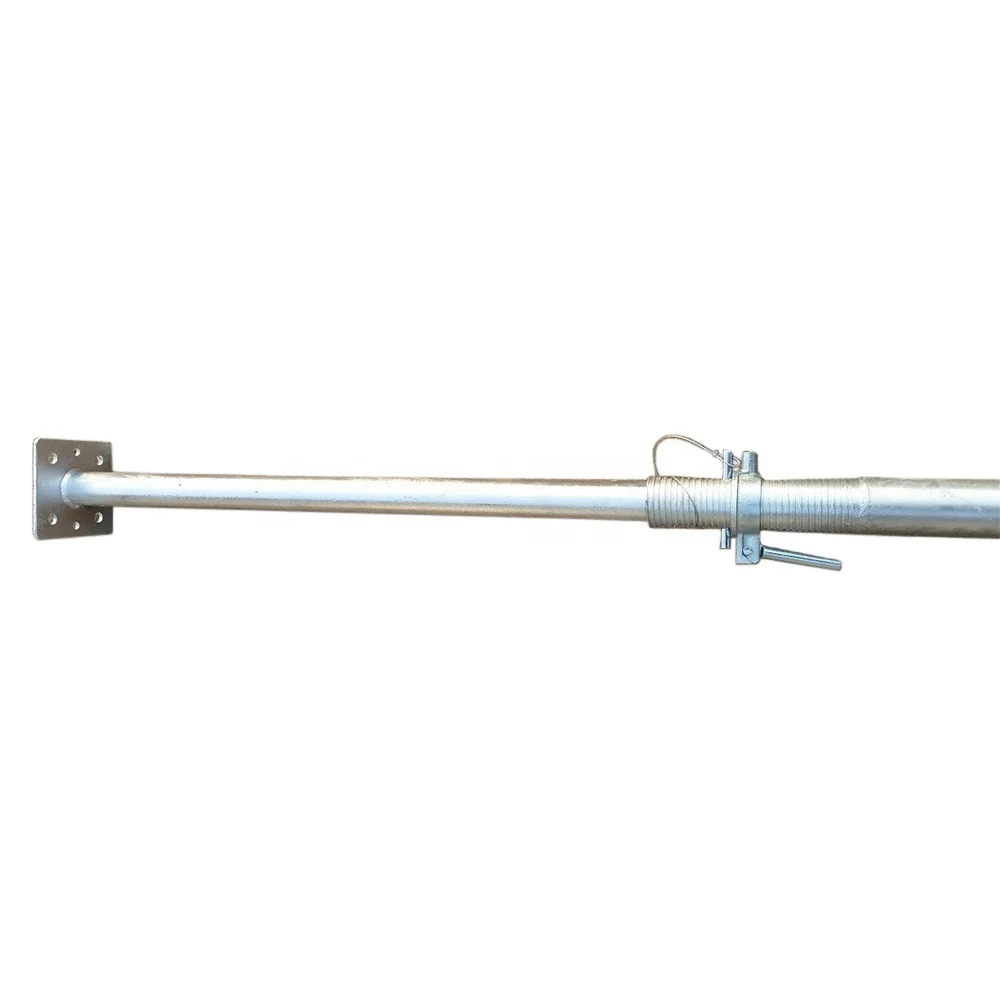

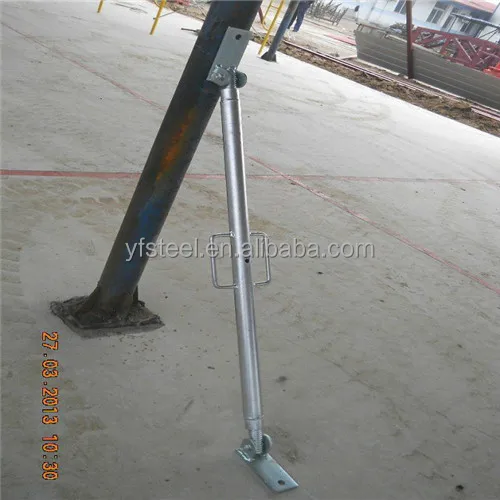

Triangle prop /push-pull prop
adjustable height/mm	main tube	solid screw	top and base plate	weight
700-1000	48.3*3.25	32	170*70*8	8.64
900-1200	48.3*3.25	32	170*70*8	9.35
1700-2000	48.3*3.25	32	170*70*8	12.22
2000-2300	48.3*3.25	32	170*70*8	13.30
2200-2500	48.3*3.25	32	170*70*8	14.02
2500-2800	48.3*3.25	32	170*70*8	15.40
3000-3300	48.3*3.25	32	170*70*8	17.30

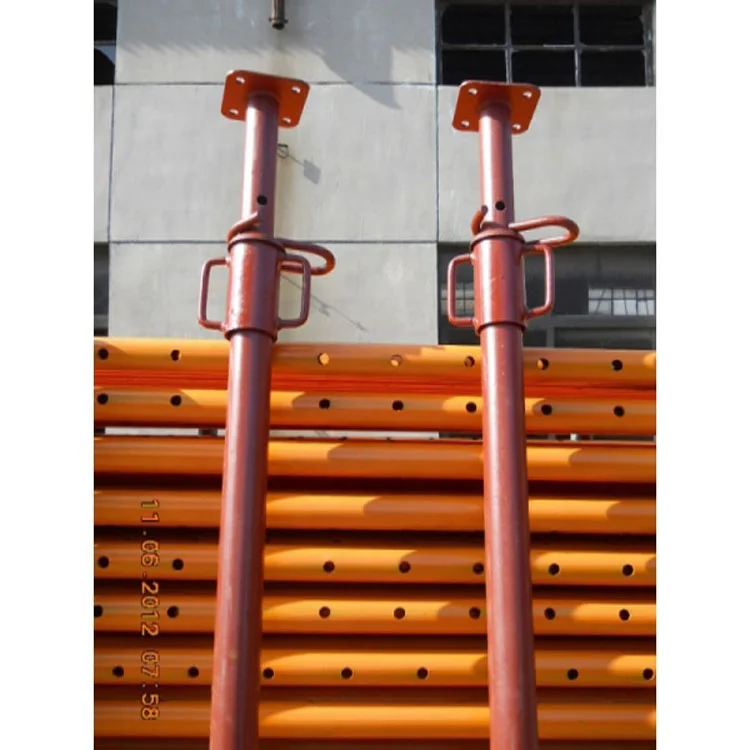

heavy duty Middle East prop
adjustable height/mm	outer tube	inner tube	wall thinkness
1500-2800	60mm	48mm	1.6-4.0mm
1700-3000	60mm	48mm	1.6-4.0mm
1800-3200	60mm	48mm	1.6-4.0mm
2100-3900	60mm	48mm	1.6-4.0mm
2200-4000	60mm	48mm	1.6-4.0mm
3000-5500	60mm	48mm	1.6-4.0mm

Packing & Delivery

packed in bundle or according to clients requirement
