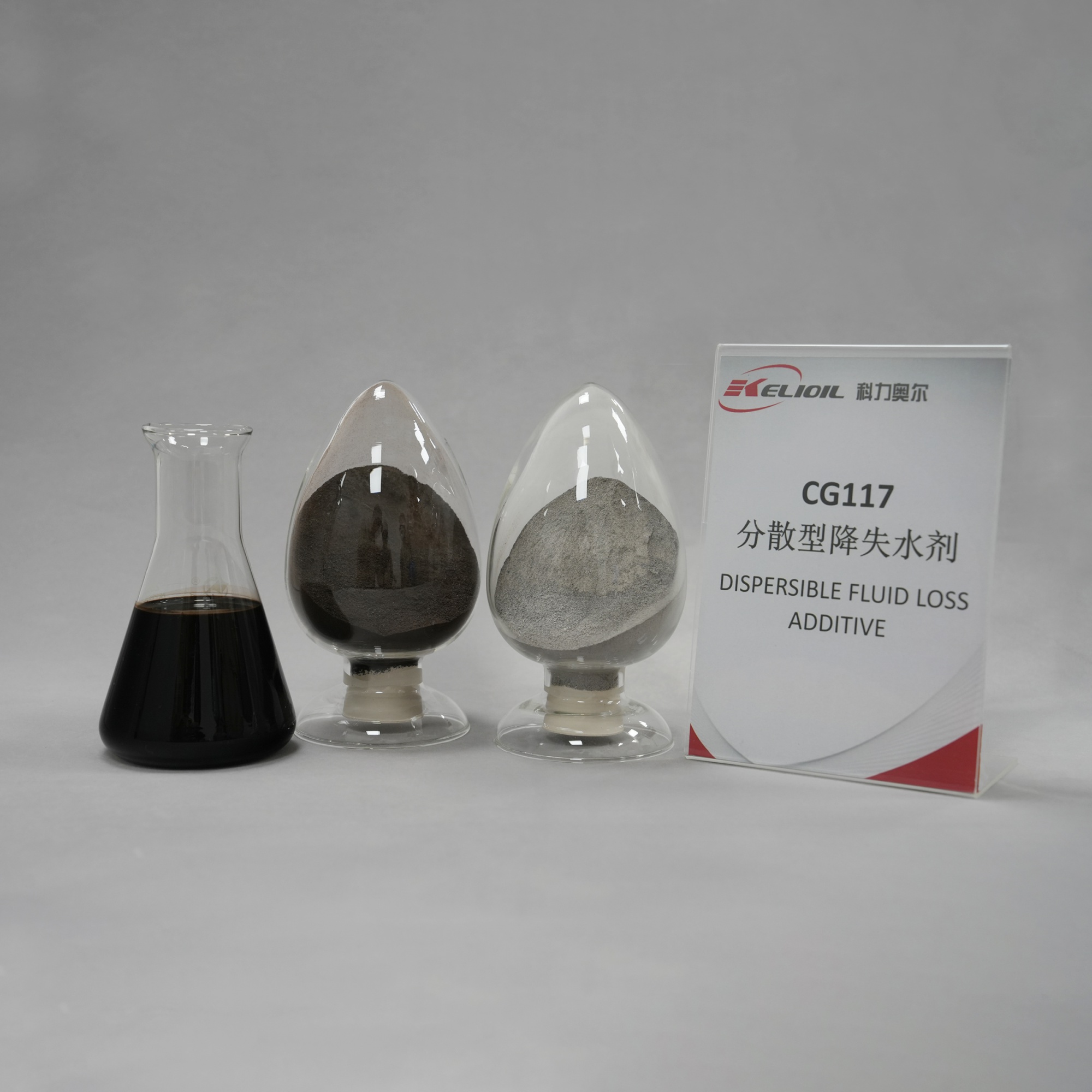

CG117 Seawater-resistant Type Fluid Loss Additives

Payment Terms: TT or LC

Ref Price : 2.9-2.9 USD/KG

Supply Capability : 999 KG

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Dosage:
    Recommended dosage is 2.0-6.0 (BWOC) for liquid products, and 0.6-2.5% (BWOC) for powder product.
  • Test Condition:
    25℃, Atmospheric Pressure

This series of fluid loss additives are suitable for fresh water, sea water and cement slurry systems containing 2% CaCl2, especially for sea water cement slurry systems.
While having a certain degree of dispersibility, it can also maintain the suspension stability of cement slurry.
The thickening time is short and the early strength development of cement stone is good.


SUMMARY

  • CG117 fluid loss additive is a synthetic polymer which is capable of effectively reducing water loss filtering from the slurry to porous formation during cementing process.
  • Control fluid loss in both normal and high density cement slurries.
  • With slightly weaker dispersion, maintain suspension stability of cement slurries.
  • Shorten thickening time and enhance the early strength development of cement stone, helping in preventing gas migration.
  • The fluidity of cement slurry in seawater system could keep normal, and fluid loss performance is good too.
  • Applicable in fresh water slurries, seawater slurries and slurries containing 2% CaCl2.
  • Used below temperature of 180℃(356℉, BHCT).
  • Compatible well with other additives.
  • CG117 series contains of L-type liquid, L-A type anti-freezing liquid and S-P type powder.
  • Recommended dosage is 2.0-6.0 (BWOC) for liquid products, and 0.6-2.5% (BWOC) for powder product.


PHYSICAL AND CHEMICAL INDICATORS


CG117S-P

CG117L

Appearance:Black or brown powder

Appearance:Black or brown liquid

Bulk Density, g/cm30.80±0.20

Density, g/cm31.10±0.05(L), 1.15±0.05(L-A)

Water-SolubilitySoluble

Water-Solubility: Soluble



CEMENT SLURRY PERFORMANCE

Item

Test Condition

Technical Indicator

Density of heavyweight cement slurry, g/cm3

25℃, Atmospheric Pressure

2.20±0.01

Fluid loss,

ml

Fresh water slurry

80℃,6.9MPa

≤80

Seawater slurry

≤100

Slurry containing 2% CaCl2

≤80

Thickening performance



Initial consistency, Bc

80℃/45min,46.5MPa

≤30

40-100 Bc thickening time, min

≤20

Free fluid, %

80℃, Atmospheric Pressure

≤1.4

Compressive strength for 24h, MPa

≥14


PACKING AND STORAGE

  • The liquid type products should be used within 12 months after production. Packed in 25kg, 200L and 5 US gallon plastic barrels.The powder type products should be used within 24 months after production. Packed in25kg bag.
  • Customized packages are also available.
  • Once expired, it shall be tested before use.



                 Keiloil·Global Factory-www.kelioil.com/en

Established in 2006, Tianjin Kelioil Engineering Material and Technology Co., Ltd. is a high-tech enterprise specializing in the independent R&D and large-scale production of oilfield cementing additives. Kelioil holds multiple intellectual property rights, including invention patents.


KELIOIL R&D Center is headquartered in Universal Enterprise Park, Xiqing District, Tianjin. The production base is located in Ninghe District, Tianjin, with an area of 30,000 square meters, including over 10,000 square meters of workshops. It is equipped with multiple automated production lines for liquid and powder drying, as well as advanced packaging lines. With an annual capacity of about 10,000 tons, KELIOIL meets the demands for multi-variety, small-batch, and customized production.


The main products of KELIOIL are fluid loss additives, which are suitable for low, conventional, and high-density cement slurries, as well as high-temperature and salt-resistant cement slurry systems. Customized solutions, such as low-temperature accelerators and seawater-resistant additives, etc., are also available. These products are widely used in major oilfields across China and exported to many countries and regions.
