Construction Ring Lock Scaffold Manufactures Youfa Brand Hot Sale Steel Scaffolding in Pakistan

Payment Terms: TT or LC

Ref Price : 10-15 USD/PIECE

Supply Capability : 10000 PIECE

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Place of Origin：
    China
  • Warranty：
    1 Year
  • Selling units：
    Single item
  • Single package size：
    30X4.83X4.83 cm
  • Material：
    Q235/Q345
  • Standard：
    EN74/BS1139/AS1576
  • Project Solution Capability：
    Others
  • Design Style：
    Modern
  • Model Number：
    ringlock scaffolding
  • After-sale Service：
    Online technical support, Other
  • Surface treatment：
    Hot Dip Galvanized Painted
  • Brand Name：
    youfa
  • Thickness：
    3.25/2.75MM
  • Type：
    ringlock scaffolding
  • Packing：
    Bundle
  • Advantage：
    Easy Assembling
  • Product name：
    Ring Lock Scaffolding
  • Single gross weight：
    1.700 kg
  • Application：
    Building Construction
  • Diameter：
    48.3 Mm
  • Certificate：
    ISO9001:2008
Product Description
Specification
Ring lock scaffolding system
Components
Standard, ledger, brace ,etc
Finish
Hot dip galvanized
Material
Q355 / Q235/ Q195

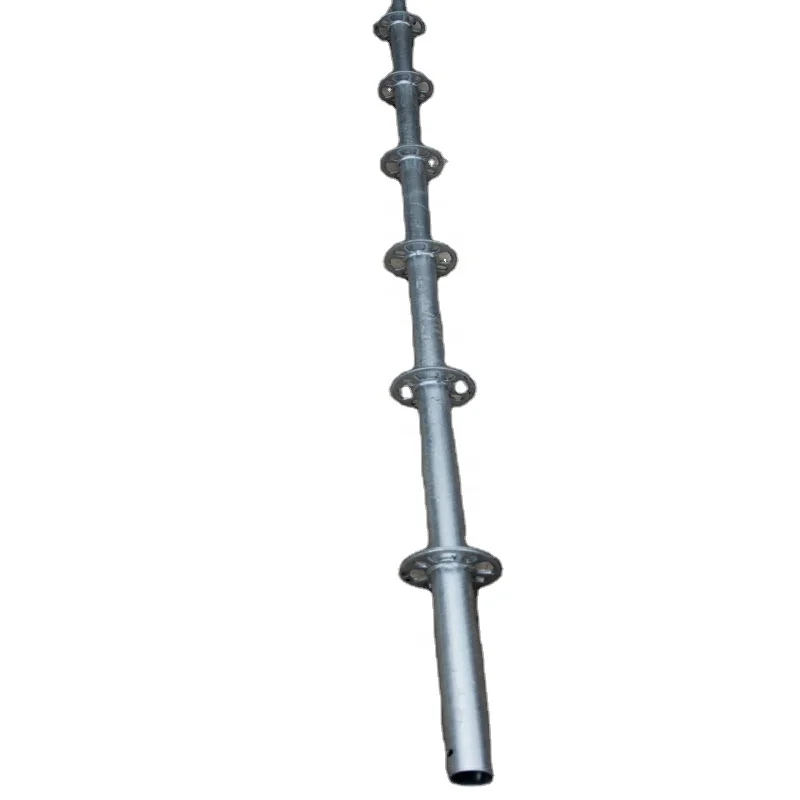

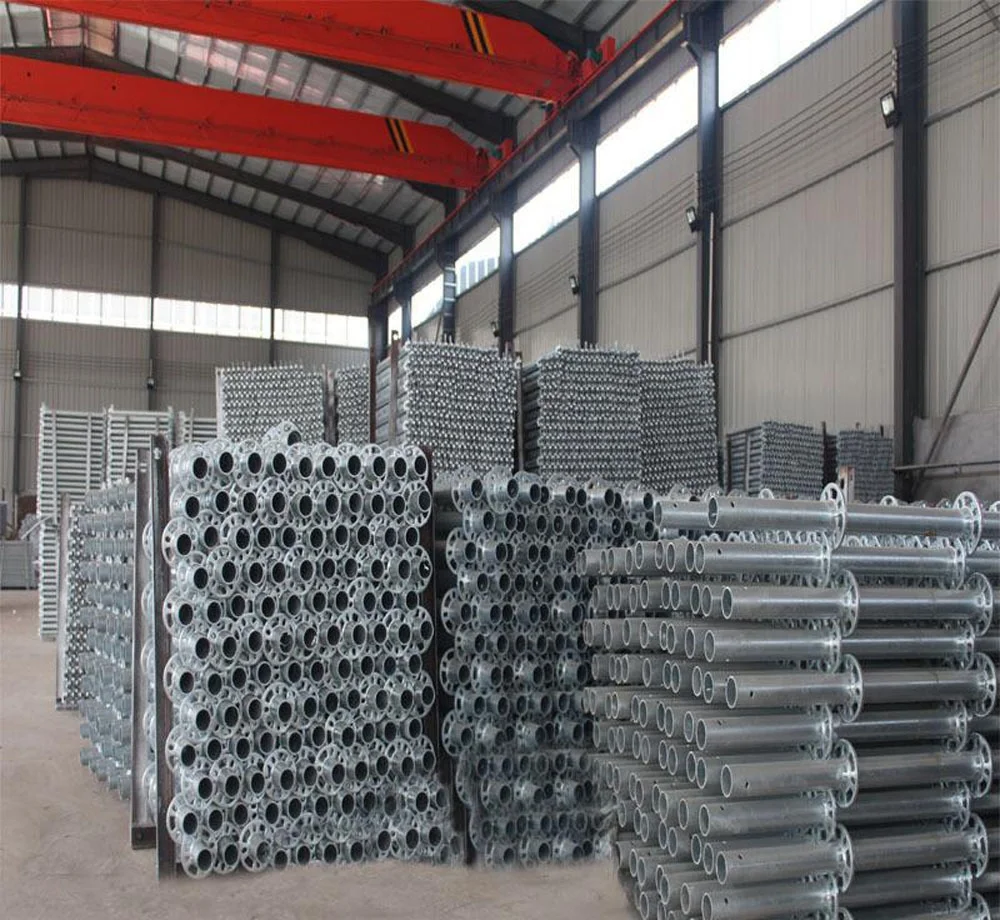

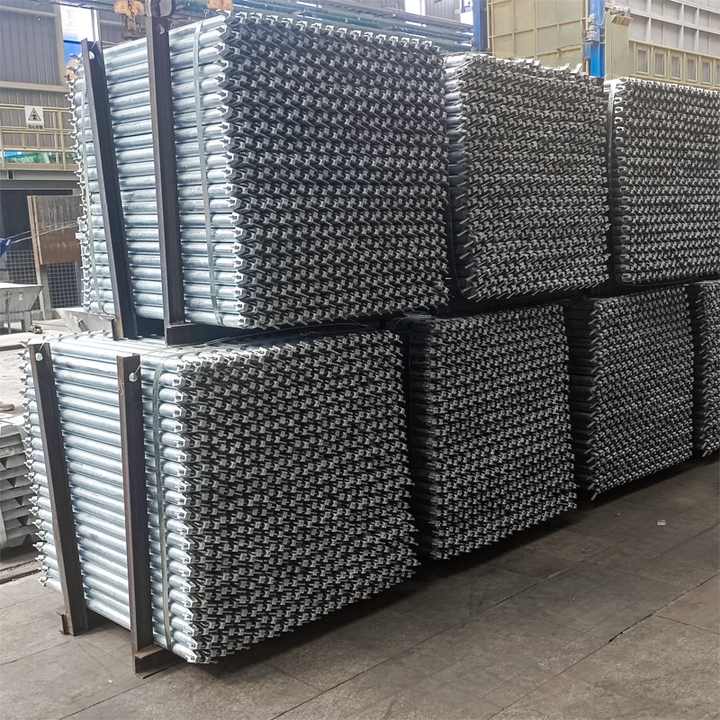

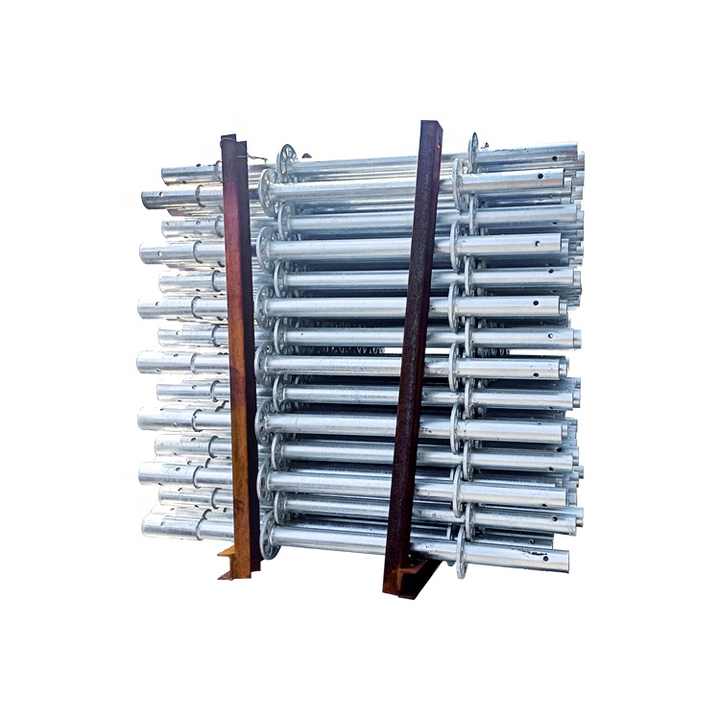

Ringlock standard/verical
The vertical standard bears the loads from the scaffold down to the earth, providing vertical support for the scaffolding. The standard has rosettes at 50 cm interval, a spigot on the top and drilled holes at both end.

Material:Q345
Diameter:48.3 mm
Wall thickness:3.25 mm or customized by customer.
Length:300/1000/1200/1800/2000/2400/3000mm

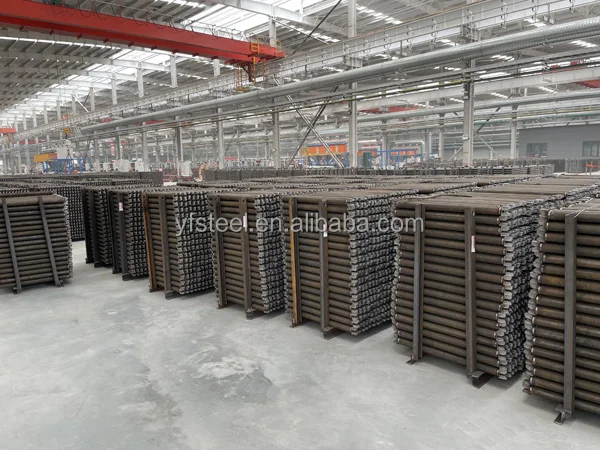

Ringlock ledger/horizontal
The horizontal ledgers in several lengths are used as horizontal supports for loads and planks.Ledgers are also used as guard
rails.

Material:Q235
Diameter:48.3 mm
Wall thickness:2.75 mm or customized by customer.
Length:500/1000/2000/3000mm

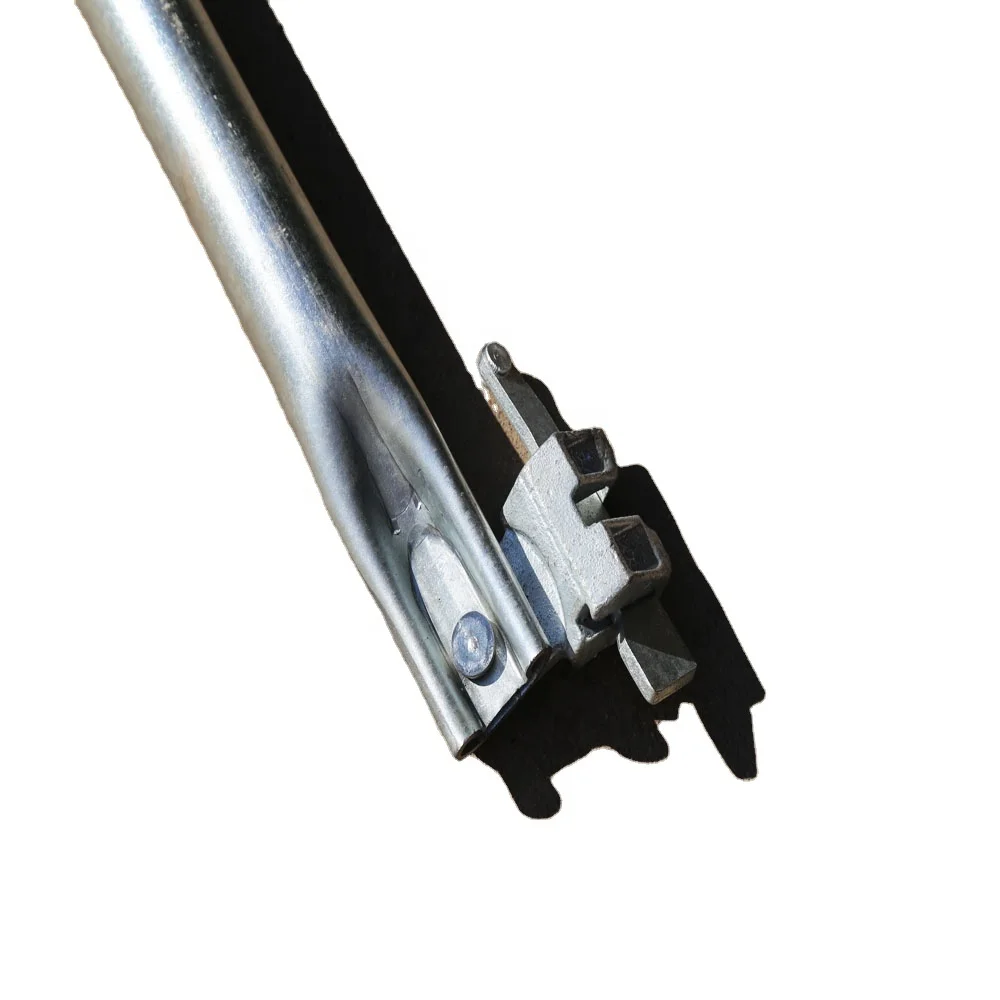

Ringlock diagonal brace
Braces are used for lateral bracing, increasing stiffness of the scaffold.Braces can also be used as guard rails in conjunction with the stair system.

Material:Q195
Diameter:48.3/42mm
Wall thickness:2.75 mm or customized by customer.
Length:1829*1500/2048*1500/2048*2000/1829*2000mm

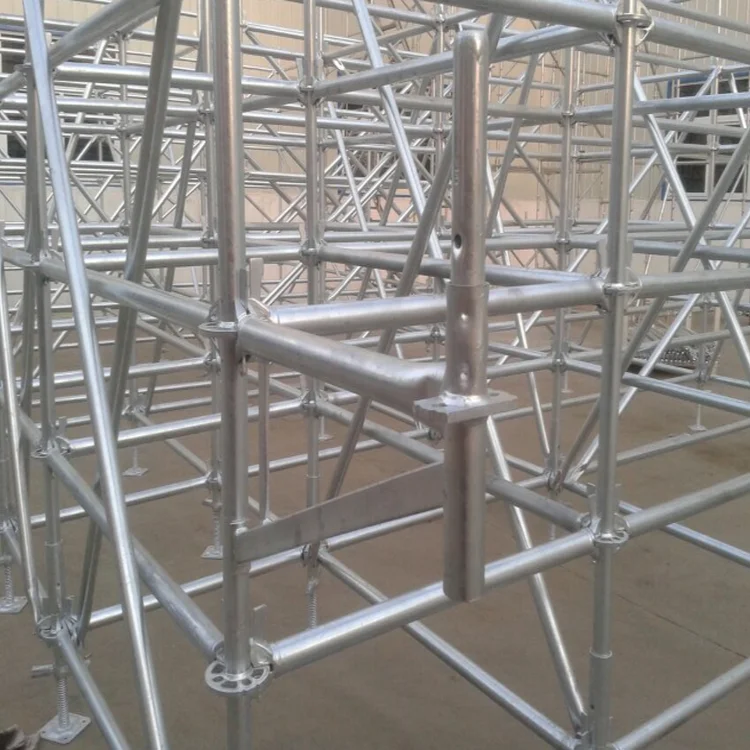

Ringlock Side Brackets
Side Brackets are used for supporting for extension platform.

Material:Q235
Diameter:48.3mm
Wall thickness:3 mm or customized by customer.
surface funishing: HDG

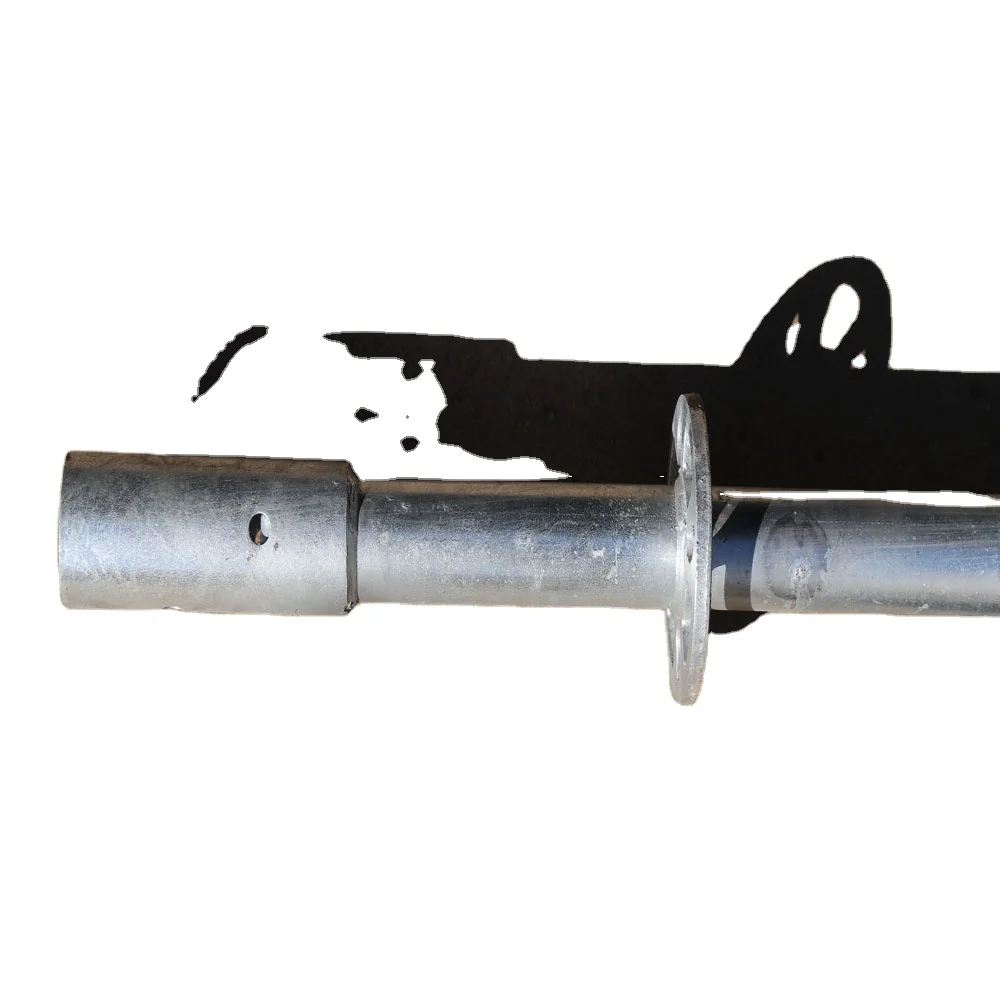

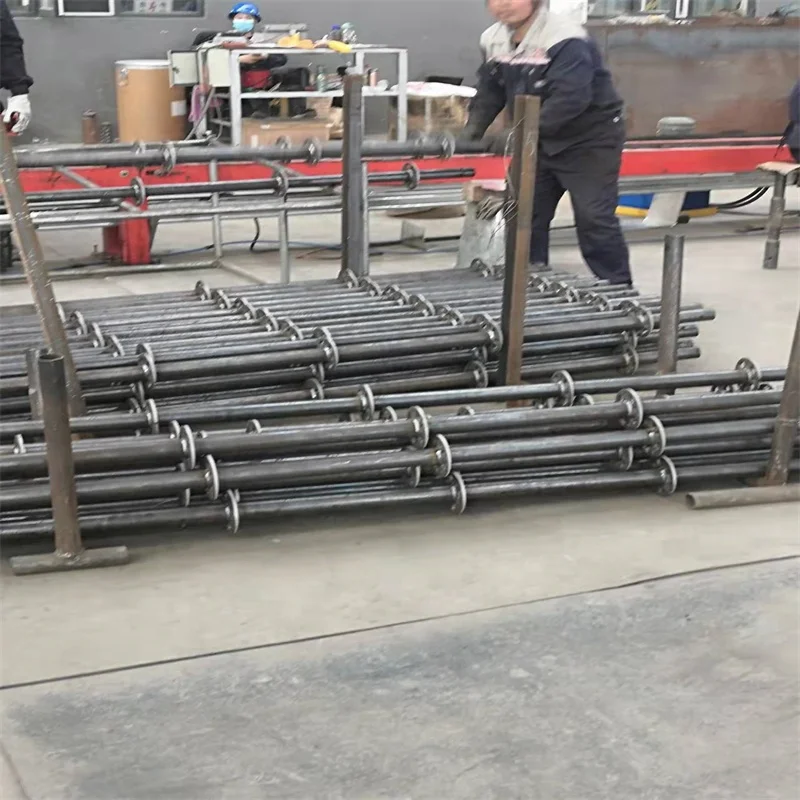

Ringlock Base collar
welding with rosette used to conect the base jack and the vertical stand

Material:Q345
Diameter:48.3mm
Wall thickness:3 mm
Length:650/880mm

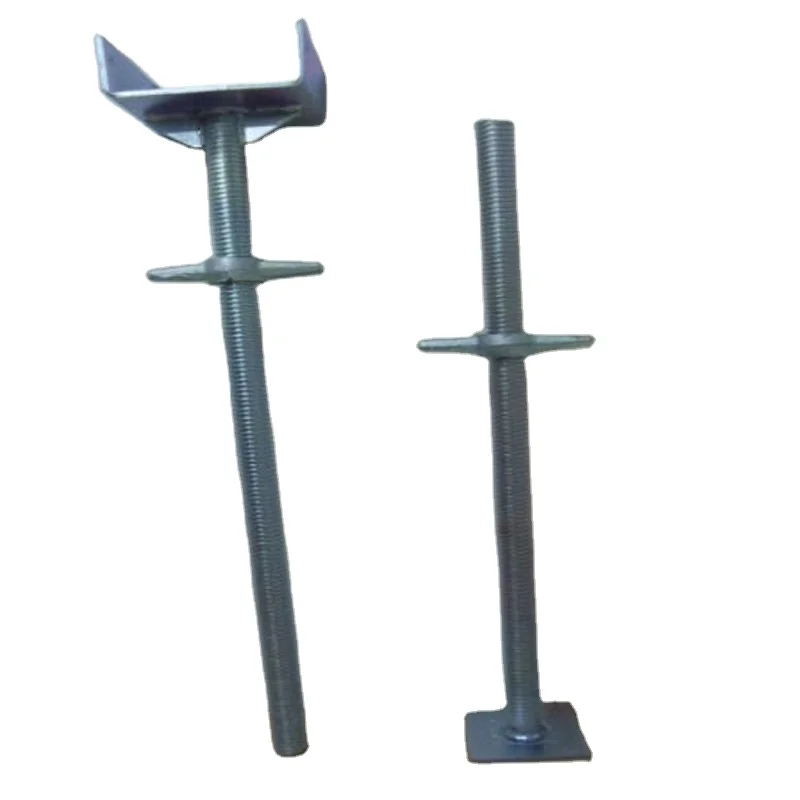

Ringlock jack base and U head
Jack base: adjust the balance and support the system
Type:Hollow
Diameter:48*5mm
Base palte:200*200*6 mm
Height:800 mm

U head: keep the top balance and support the top building

Type:Hollow
Diameter:48*5mm
U Base palte:150*150*50*6 mm
Height:800 mm

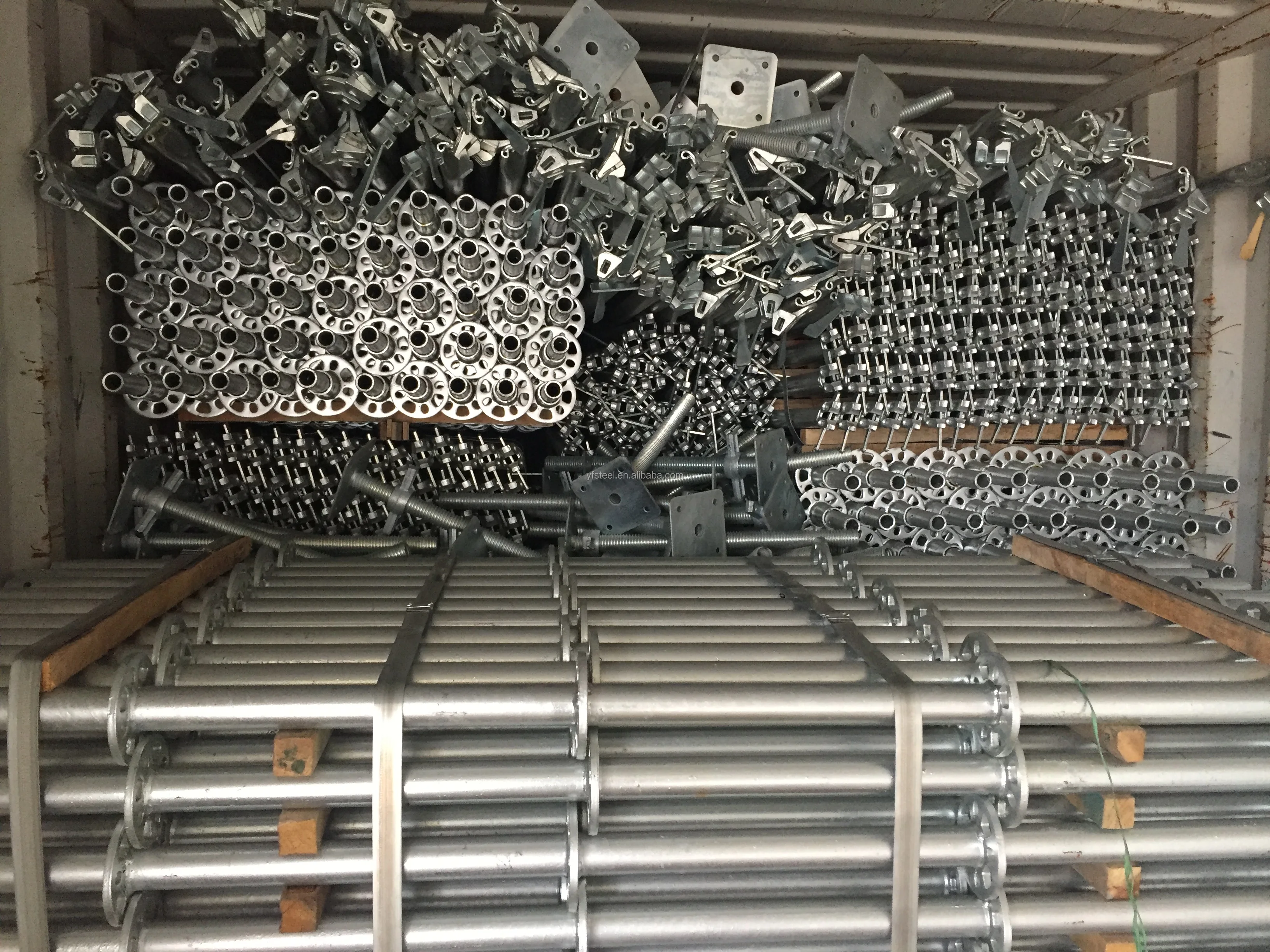

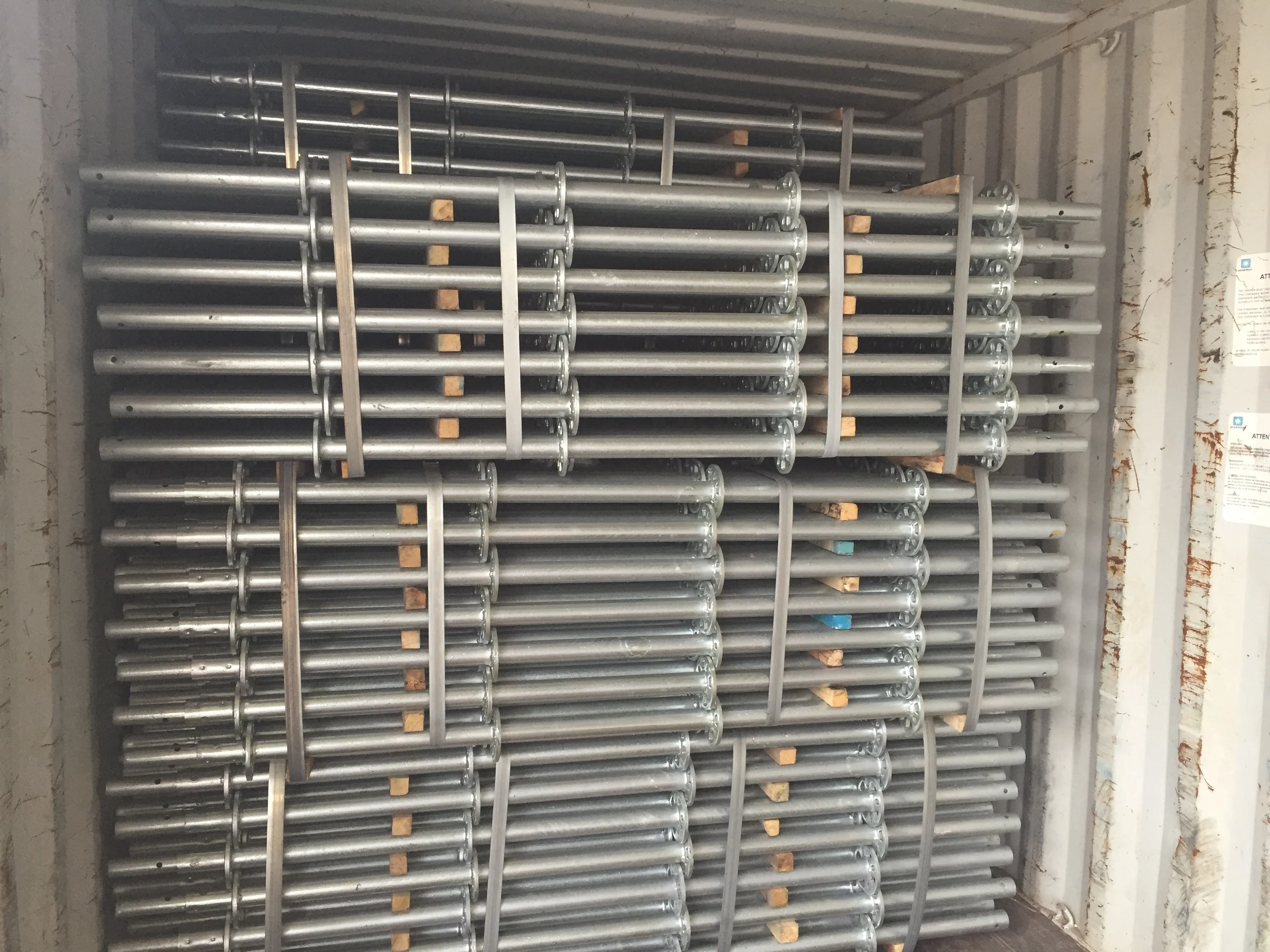

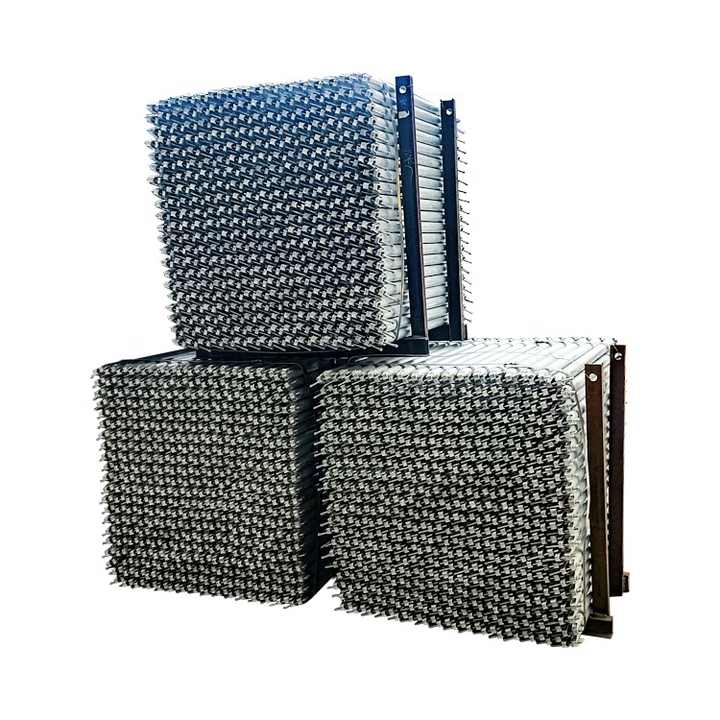

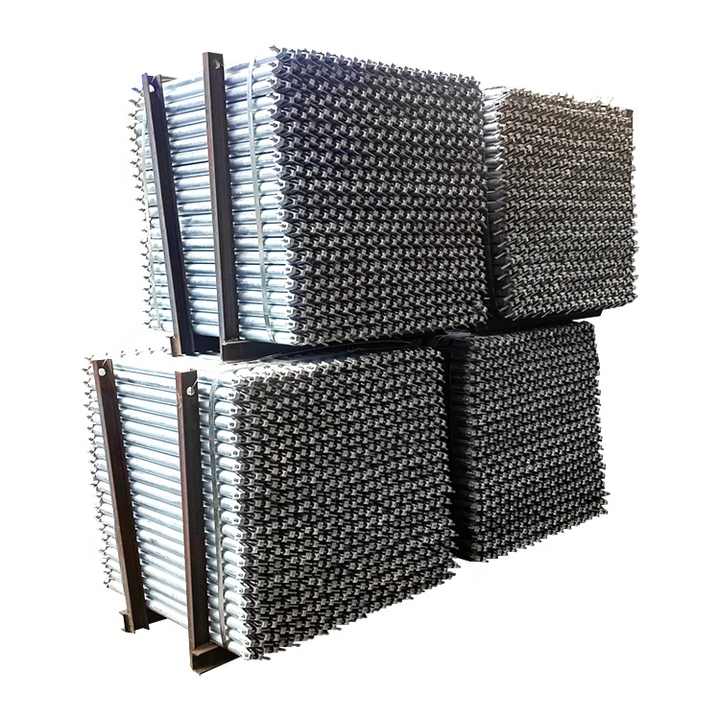

Packing & Delivery

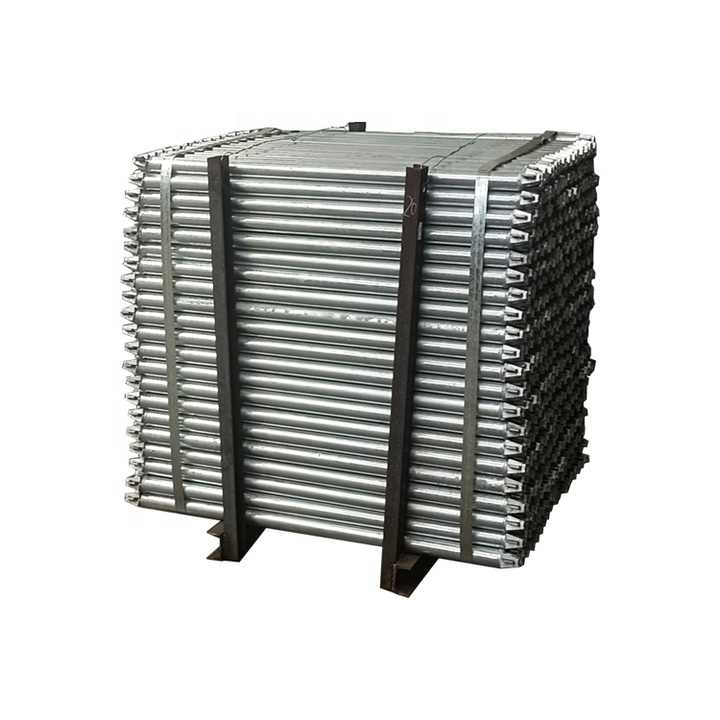

packing in bundle or as customers requirement

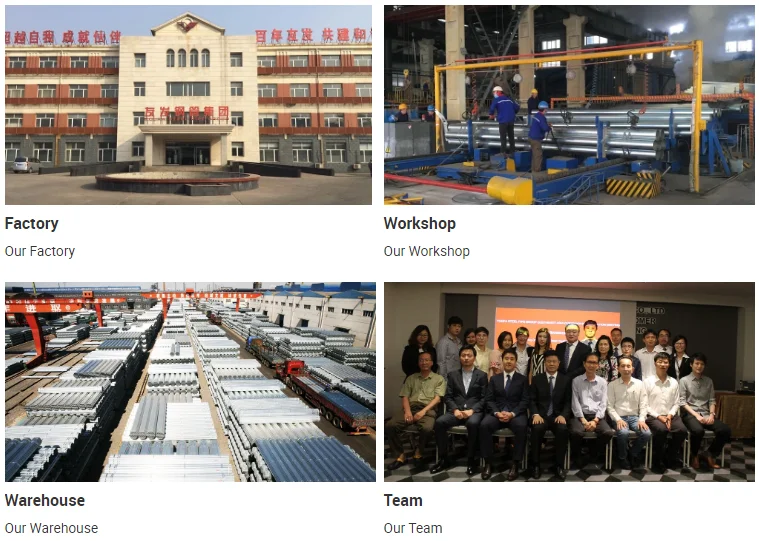

Company Profile
Youfa international trade Co., Ltd

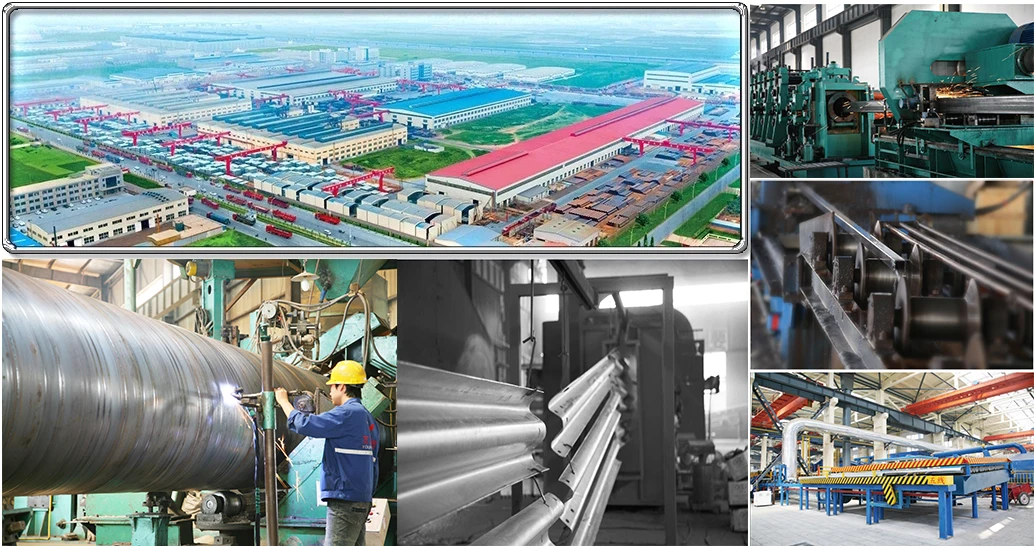

Tianjin Youfa International Trade Co., Ltd. was founded in March 2010, as a subsidiary of
Youfa Steel Pipe Group. We are Manufacturer and trading combination comany. Our product cover steel pipe,scaffolding system ,etc.
We have decades of steel pipe production experience and many years of export experience, through a variety of certification.

Tianjin Youfa International Trade Co., Ltd.  was founded in March 2010, as a subsidiary of Youfa Steel Pipe Group. Our company is located at Dafeng Road, Hongqiao District, Tianjin. There are about 60 employees. The annual sales amount of the steel is nearly 100,000 tons.

Tianjin Youfa International Trade Co., Ltd. as a foreign trade window of Youfa Steel Pipe Group is responsible for the import and export of Youfa brand products.

Our products have been manufactured according to API, ASTM, EN, BS, ISO, DIN and JIS internationally advanced standards, and also approved by the third party. They are widely used in oil and natural gas, low pressure liquid and mineral powder delivery, and also can be used for structure and piling field in industrial and civil construction. Paying attention to the quality of products and services, possessing normative QAS, we have acquired certificates of ASTM A795, API5L, ISO9001 and EN10219. Based on the high quality and considerate service, our products have set up a prominent brand image in markets at home and abroad. Our markets mainly are Middle & South America, Southeast Asia, the Middle East and Africa and so on, covering nearly 100 countries and obtaining a well-deserved reputation. We have built long-term cooperation with many clients and have received wide acclaim.

Pursuing the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!
