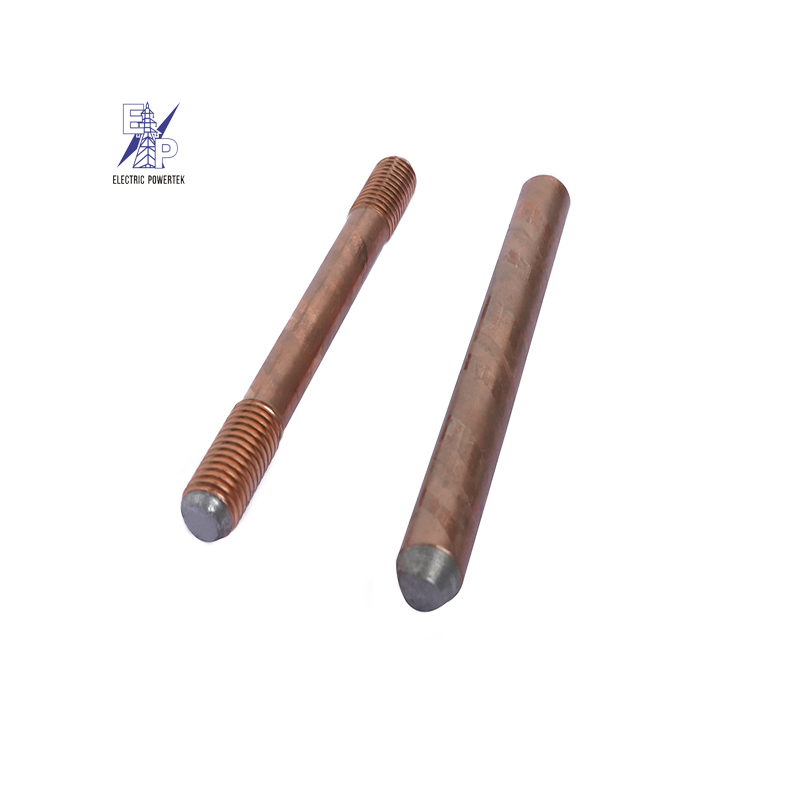

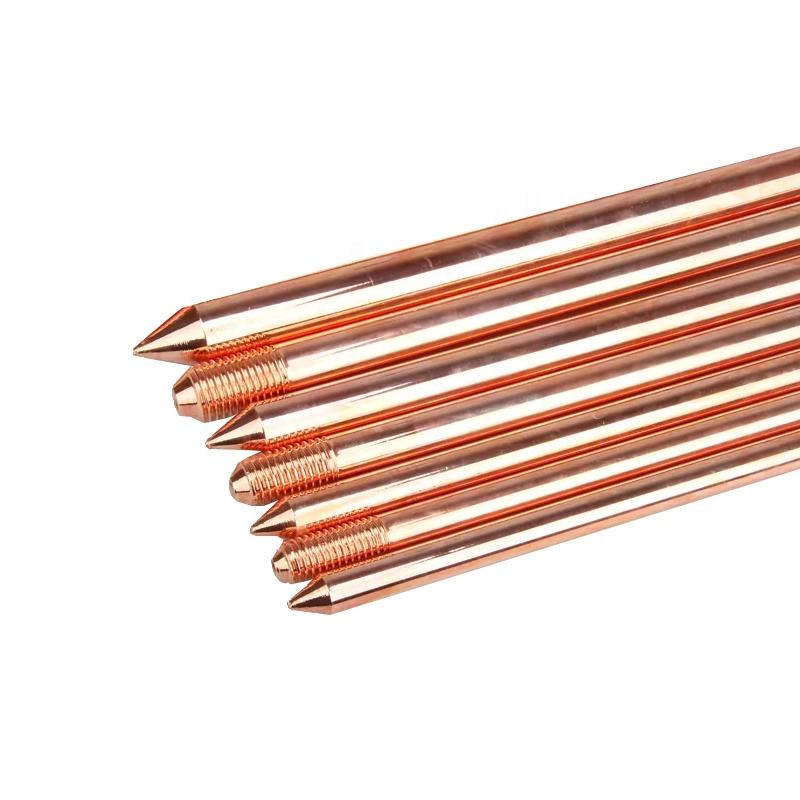

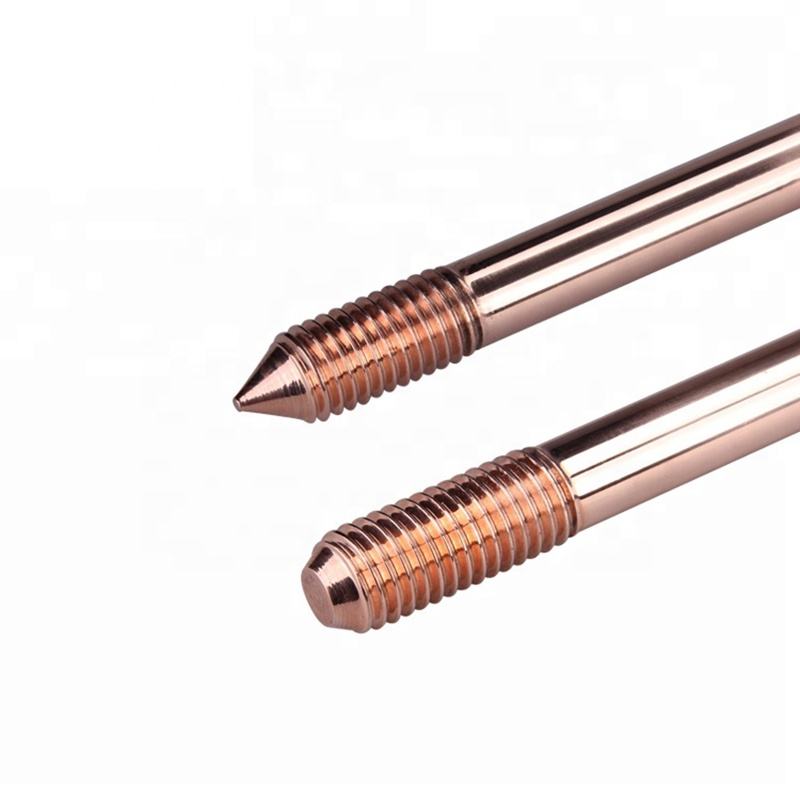

The Copper Plated Grounding Earth Rod is designed to provide reliable and long-lasting grounding solutions for electrical systems. Made with a high-strength steel core and coated with a uniform layer of copper, this rod ensures excellent conductivity and corrosion resistance, making it suitable for various soil conditions.
High Conductivity: The copper plating provides superior electrical performance for effective grounding.
Durable Protection: Copper coating resists corrosion and extends service life even in harsh environments.
Strong Core: The steel core offers maximum mechanical strength for easy installation and stability.
Versatile Use: Widely applied in power distribution, telecommunication systems, lightning protection, and industrial projects.
As a trusted Ground Rod & Earth Rod Supplier, we provide products that meet international standards and deliver consistent quality. Our copper plated earth rods undergo strict manufacturing processes to ensure uniform copper thickness, strong bonding, and dependable performance. With both standard and customized sizes available, we can meet the specific requirements of different projects worldwide.
Ideal for residential, commercial, and industrial grounding systems, ensuring safety and system reliability.
When requiring high speed production and enough copper coating at the same time, it needs copper ions deposit fast on the iron substrate. And, the good malleability and excellent bonding force put forward strict requirements of the manufacturing procedures. By using high concentration, high temperature, high current density and fully stirwith air, it achieves high speed deposition of the copper ions, qualifiedcopper coating (over 0.254mm), excellent bonding force,goodsmoothness and malleability of the copper coating.
The thickness of the copper layer is very uniform, and the thickness difference of the copper layer at any point on a rod does not exceed 10um, which can completely avoid point corrosion and effectively extend the product life.
The steel core uses high-quality steel core with carbon content of 0.18%-0.2%, and the tensile strength is maintained at 650-700Mpa.
Perfect copper bonding force! Copper layer stripping test, copper and steel do not crack, processing thread copper layer does not fall off.

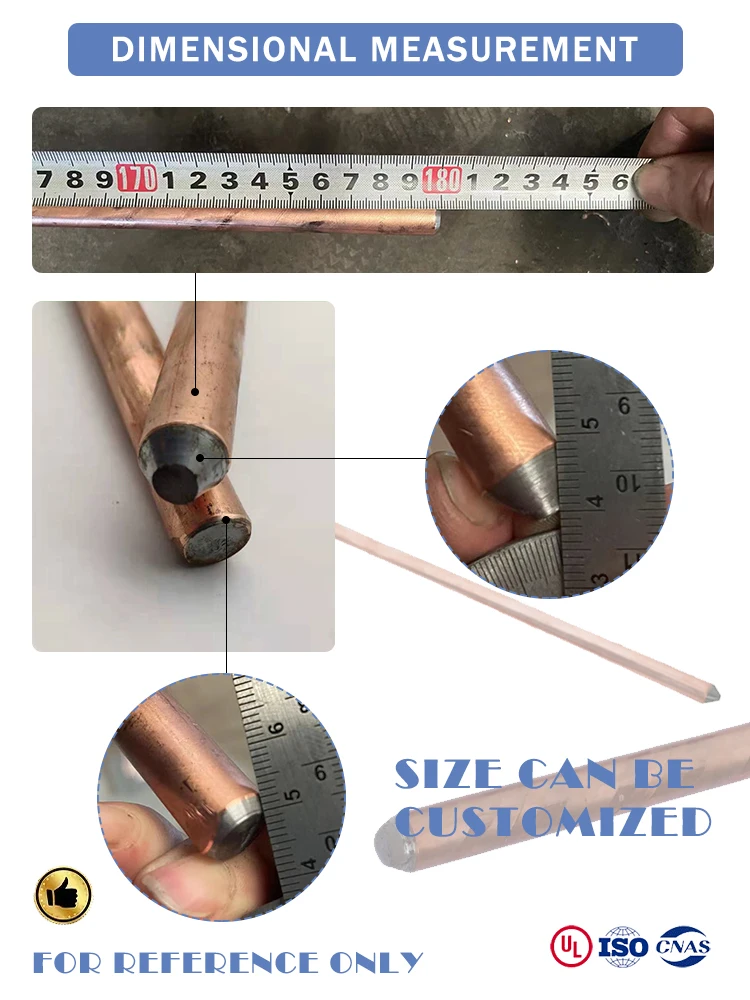

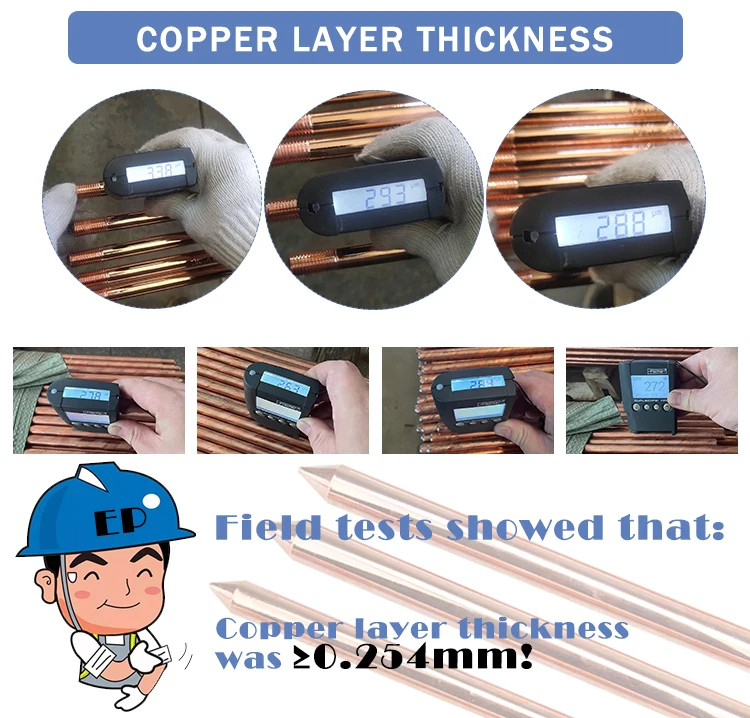

Measured by an electronic thinkness guage at the points and with frequency specified in the instruction, which guaranteed minimal thickness (0.254 mm). This thickness enables to perform the thread after copper bonding, so as the bottom of the thread is covered with copper.

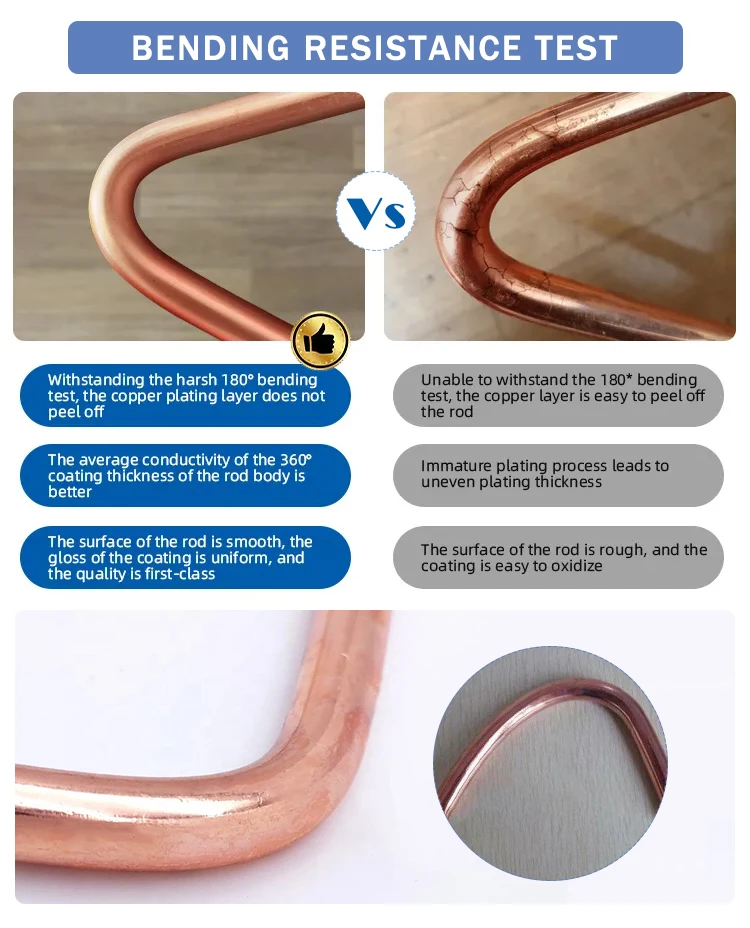

Is tested by bending the rod at 180 degree.Lack of cracks and exfoliation.
The service life of the grounding rod is protected and the integrity of the whole electrode is maintained.

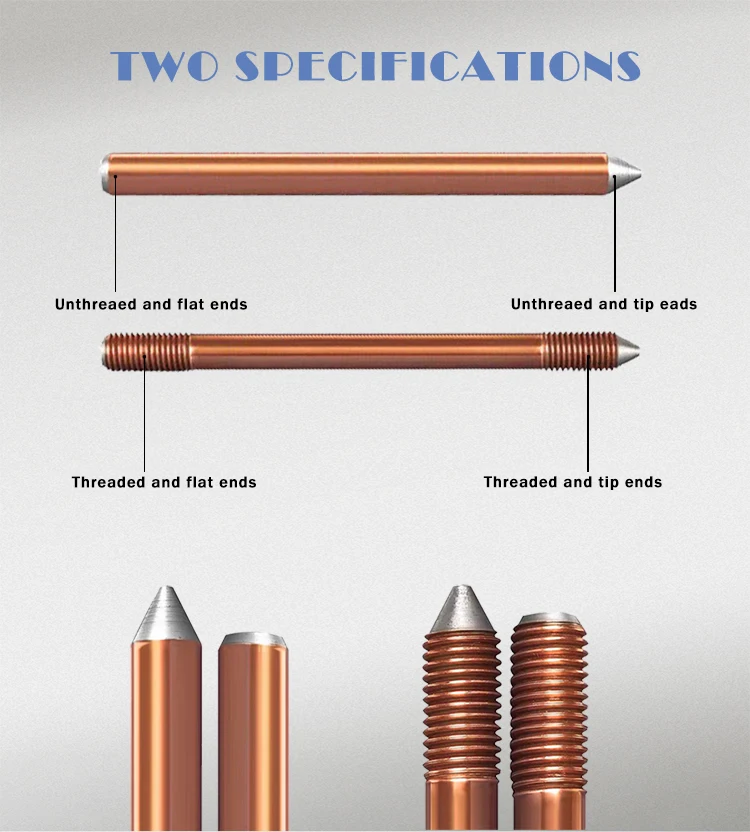

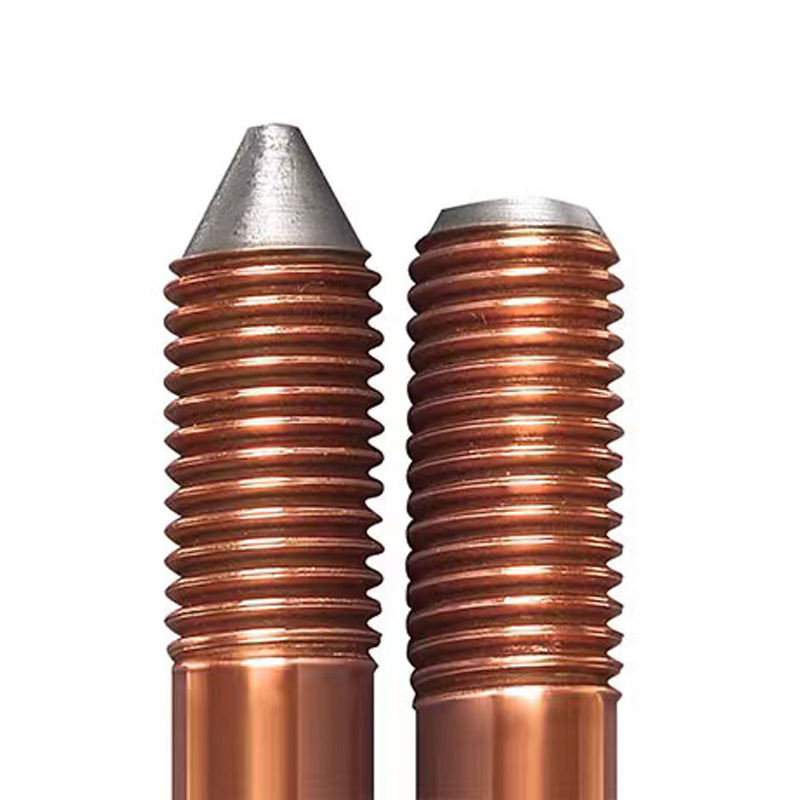

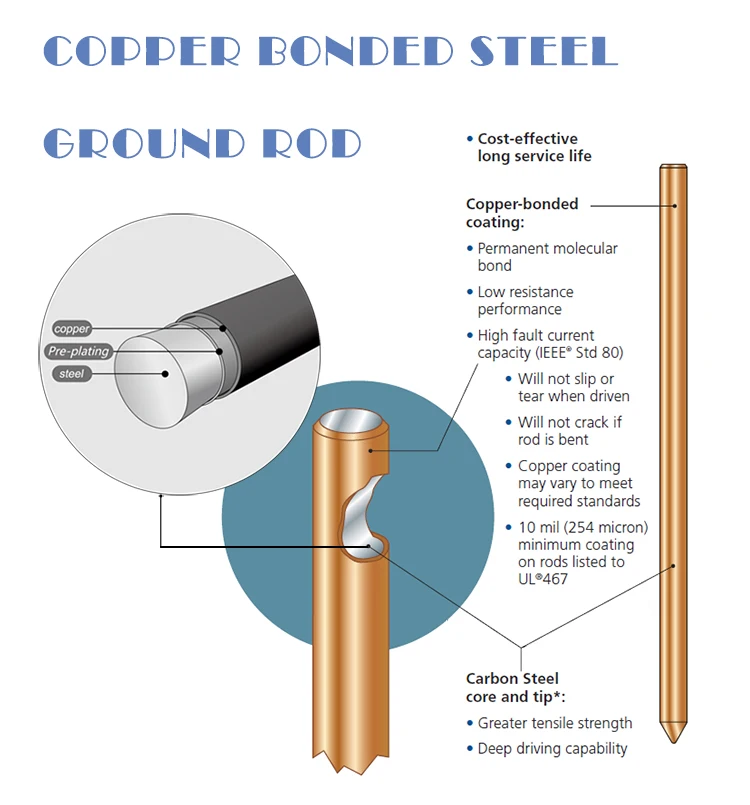

The copper bonded steel grounding rod is made of high-quality low carbon steel with good softness and carbon content of 0.10%-0.30%. The special process is used to evenly cover the high conductive electrolyzer copper on the surface of the round steel, and the thickness is 0.25-0.5mm. This process can effectively slow down the oxidation speed of the grounding rod in the underground. The single root can be pointed and flat, and can be pointed and threaded on the roll. The two ends of the combination need to be threaded on the roll. The thread is processed by the roller thread groove, which maintains the close connection between the steel and copper, ensures high strength, and has excellent electrical grounding performance.
Contact us today to get more details about our Copper Plated Grounding Earth Rod and discover how our expertise as a reliable Ground Rod & Earth Rod Supplier can support your project needs.
