Quick Details

• Single package size：

  20X10X10 cm
• Standard：

  ASTM A53, ASTM A106, API 5L and so on
• Invoicing：

  by theoretical weight
• Outer Diameter：

  DN8--DN600
• Commodity：

  Seamless Carbon steel pipes
• Special Pipe：

  Thick Wall Pipe
• Single gross weight：

  1.000 KG
• Wall Thickness：

  1.3mm--30.0mm ( sch40/ sch80/ sch160)
• Shipping Terms：

  FOB/ CIF/ CFR
• Oiled or Non-oiled：

  Non-oiled
• Secondary Or Not：

  Non-secondary
• Place of Origin：

  Tianjin, China
• Selling Units：

  Single item
• Tolerance：

  ±10%
• Grade：

  ASTMA53/A106/API 5L GR.B
• Material：

  Q195, Q235, Q345, #20
• Processing Service：

  Punching, Cutting
• Section Shape：

  ROUND
• Brand Name：

  YOUFA
• Thickness：

  1.3 - 15 mm
• Alloy Or Not：

  Non-Alloy
• Delivery Time：

  22-30 days
• Length：

  6m/5.8m or customized

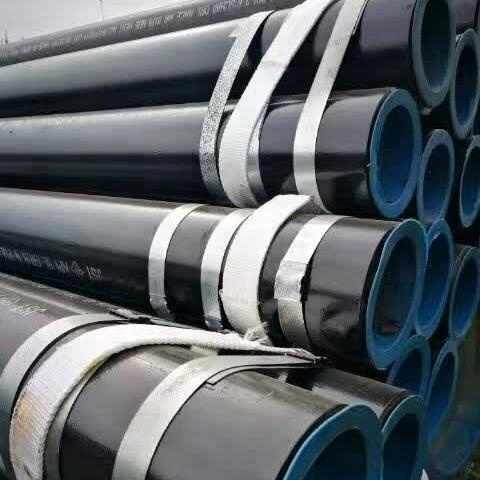

• Surface Treatment：

  black painted
• pipe ends：

  bevel ends or plain ends with caps
• Application：

  Low pressure fluid transport, construction,fence posts and conduit
• Certificate：

  API , ISO9001

Product Description

COMMODITY NAME	SEAMLESS STEEL PIPE/ TUBE
SIZE RANGE	DIAMETER: 21.3MM-610MM ; THICKNESS: 2.0MM--15.0MM
MATERIAL GRADE	Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2 Q355 = S355JR / A500 Grade B Grade C
STANDARD	API 5L ASTM A53 ( sch10; SCH40),  ASTM A500
PIPE SURFACE	Black Painted or GALVANIZED
PIPE ENDS	PLAIN ENDS / BEVEL ENDS WITH PLASTIC CAPS
TRADE TERMS	FOB/ CFR/ CIF/ EXW/ FCA
PAYMENT TERMS	30%&70% T/T ;  100% LC AT SIGHT (others can be negotiated)
DELIVERY TIME	30-45 DAYS AFTER RECEIVE DEPOSIT OR LC
BRAND	YOUFA  (HOT SALES)
HOT SALES MARKET	Southeast Asia, South Asia, Middle East, Europe, Middle&South America, Africa and Oceania

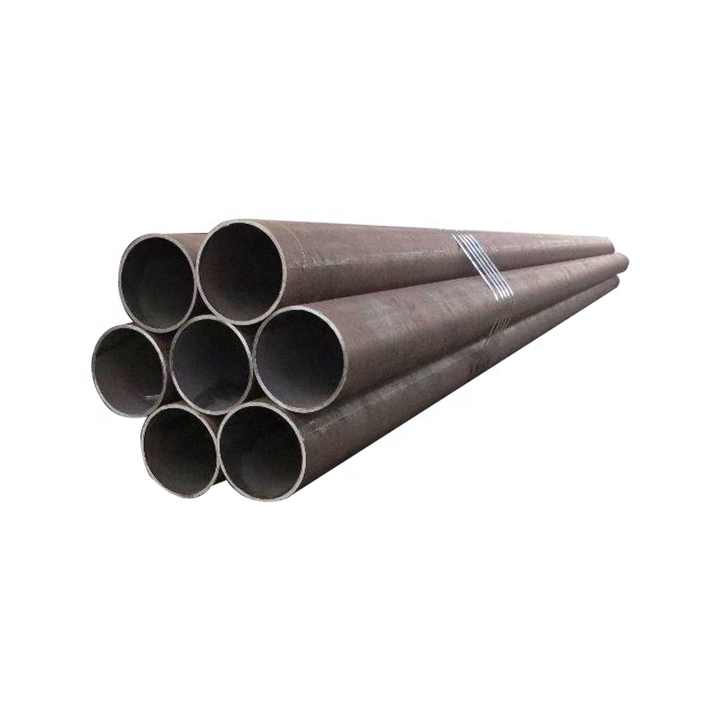

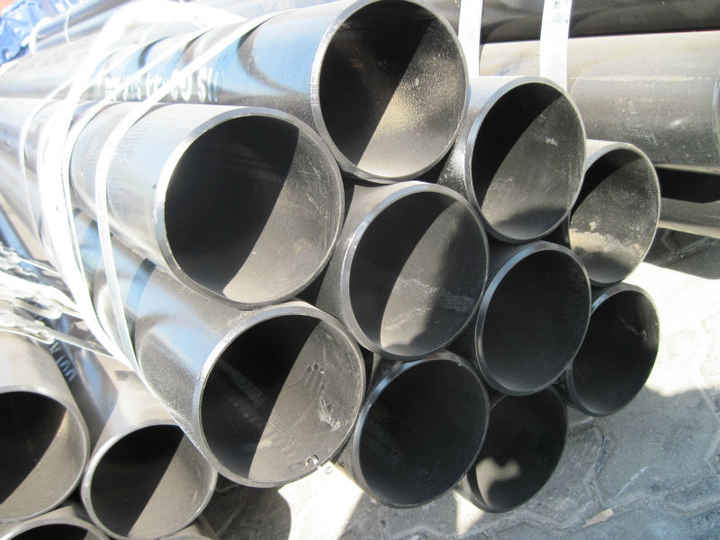

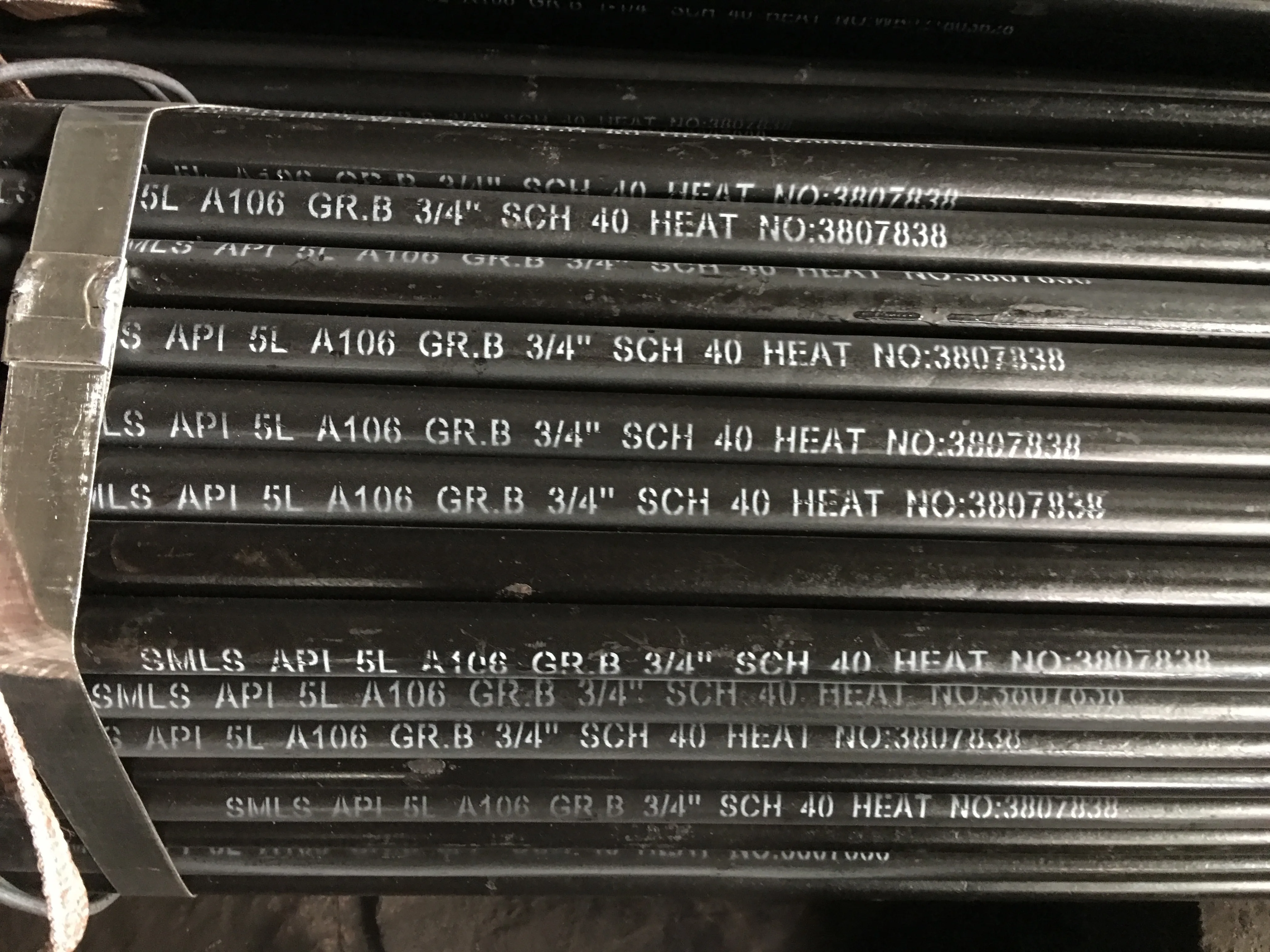

API 5L PSL 1 Grade B Steel Round Section Seamless Steel Pipe

ZINC COATING: 200g/m2 or customized(300G/M2 - 500G/M2)

Color painted on Galvanized steel pipe

3PE coated on Galvanized steel pipe

PIPE ENDS TREATMENT

THREADED BOTH ENDS ( BS or ASTM standard)

One end with plastic caps, and the other end with coupling

GROOVED ENDS (BS or ASTM standard)

PLAIN ENDS (regular situation)

Add plastic caps or not

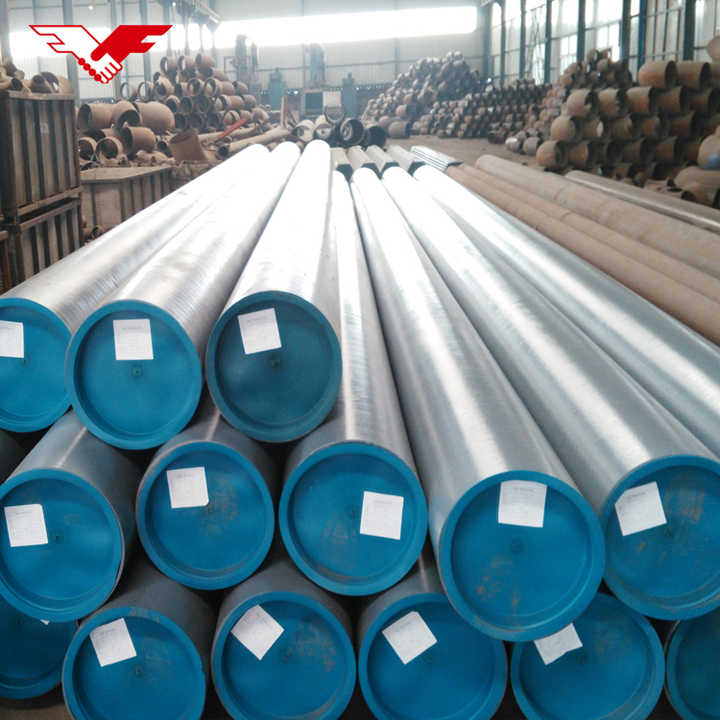

BEVEL ENDS WITH PLASTIC CAPS

30 degree bevel suitable to welding

OTHER PROCESS ALL CAN BE DISCUSS!

SEAMLESS STEEL PIPE USAGE

Delivery Steel Pipe: Low pressure liquid / water / gas / oil / line pipe,

Fire sprinkler steel pipe,

Structure Steel Pipe: Construction / building materials steel pipe,

Specification

DN	OD			ASTM A53 / API 5L / ASTM A106
						SCH10S	SCH20	STD SCH40	SCH60	SCH80	SCH100	SCH160
		MM	INCH	MM	MM	MM	MM	MM	MM	MM
15	21.3	1/2"	2.11		2.77		3.73		4.78
20	26.7	3/4“	2.11		2.87		3.91		5.56
25	33.4	1"	2.77		3.38		4.55		6.35
32	42.2	1-1/4"	2.77		3.56		4.85		6.35
40	48.3	1-1/2"	2.77		3.68		5.08		7.14
50	60.3	2"	2.77		3.91		5.54		8.74
65	73	2-1/2"	3.05		5.16		7.01		9.53
80	88.9	3"	3.05		5.49		7.62		11.13
90	101.6	3-1/2"	3.05		5.74		8.08
100	114.3	4"	3.05	4.5	6.02		8.56		13.49
125	141.3	5"	3.4		6.55		9.53		15.88
150	168.3	6"	3.4		7.11		10.97		18.26
200	219.1	8"	3.76	6.35	8.18	10.31	12.7	15.09	23.01
250	273.1	10"	4.19	6.35	9.27	12.7	15.09	18.26	28.58
	323.8	12"	4.57	6.35	10.31	14.27	17.48	21.44	33.32
	355	14"	6.35	7.92	11.13	15.09	19.05	23.83	36.71
	406	16"	6.35	7.92	12.7	16.66	21.44	26.19	40.49
	457	18"	6.35	7.92	14.27	19.05	23.83	29.36	46.24
	508	20"	6.35	9.53	15.09	20.62	26.19	32.54	50.01
	559	22"	6.35	9.53		22.23	28.58	34.93	54.98
	610	24"	6.35	9.53	17.48	24.61	30.96	38.89	59.54
Other specifications, contact with us freely.    website: www.chinayoufa.com

Packing & Delivery

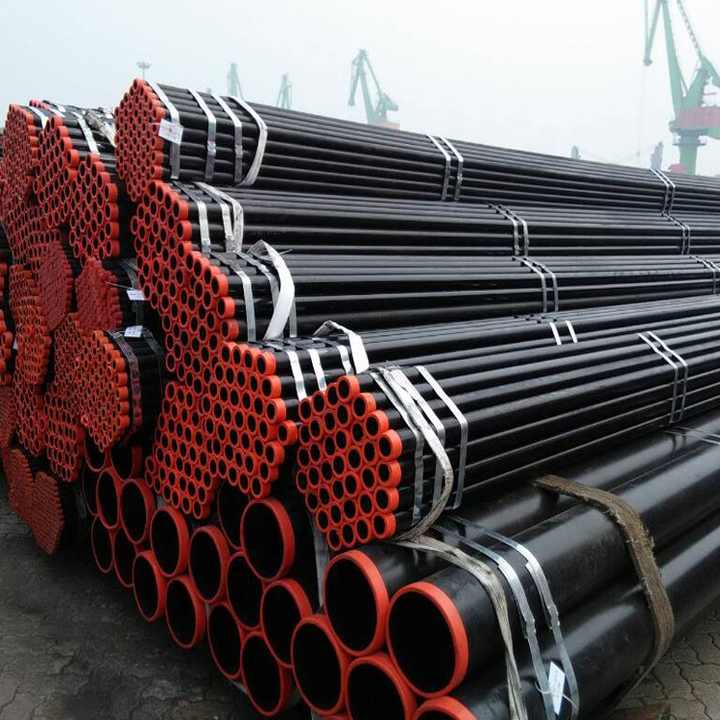

PACKING AND DELIVERY: -- Round hollow section pipe

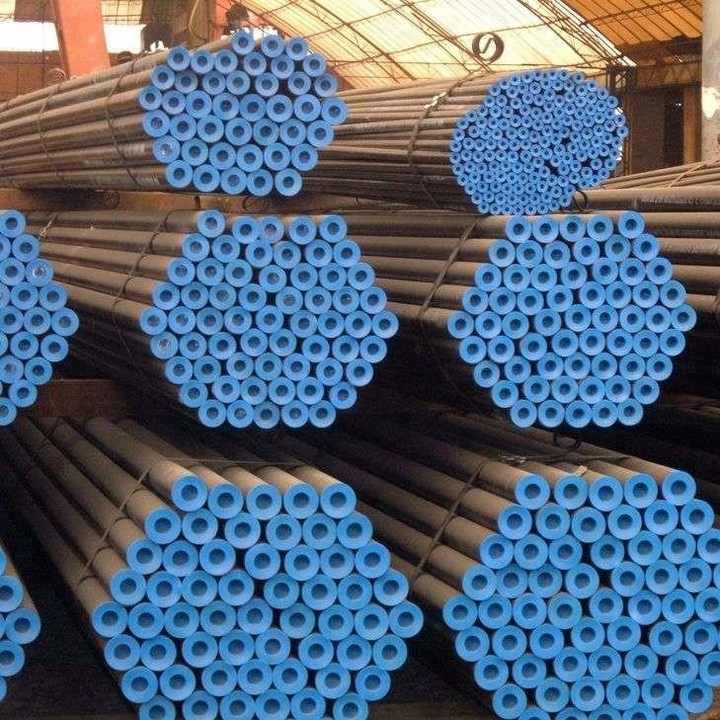

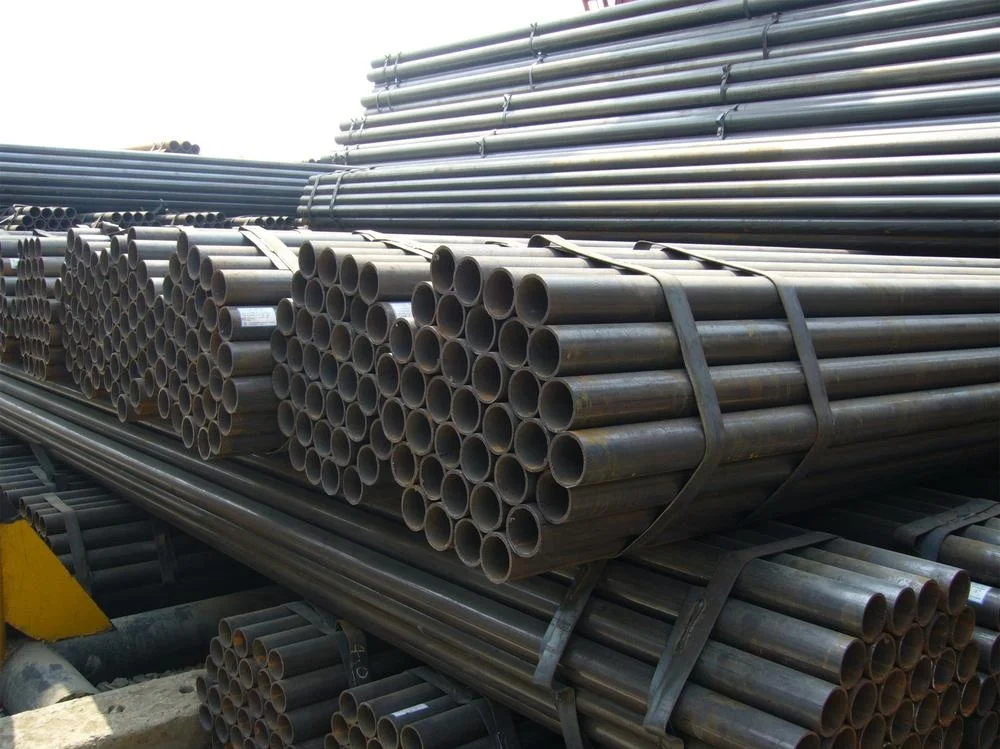

1. OD 219mm and below In hexagonal seaworthy bundles packed by steel strips, With two nylon slings for each bundles
2. above OD 219mm in bulk or according to custom opinion
3. 25 tons/container and 5 tons/size for a trial order;
4. For 20" container the max length is 5.8m;
5. For 40" container the max length is 11.8m.
