With high telecentricity and low distortion, OPTIGER bi-telecentric lenses are mainly applied to precision measurement and high-precision visual positioning fields.

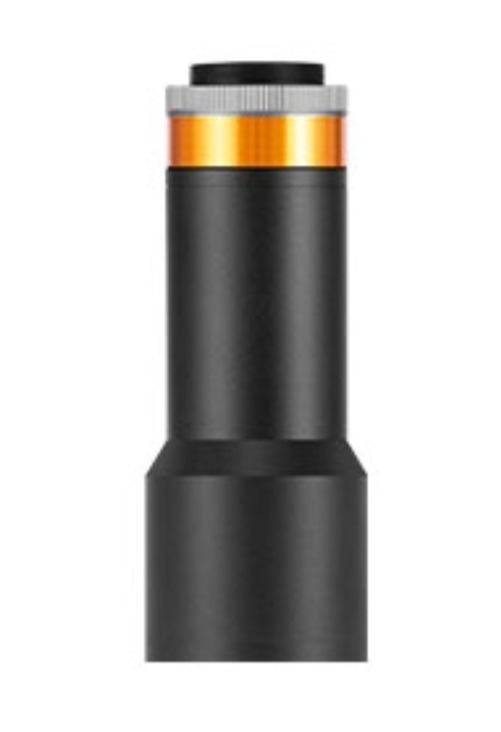

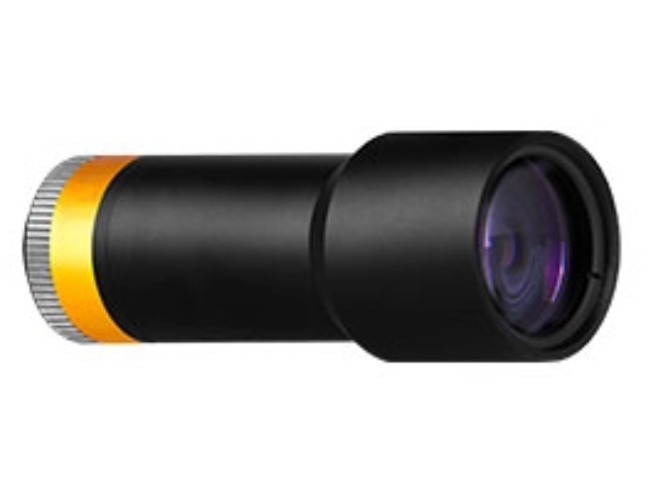

OPTIGER TTL06 Series Standard Bi-telecentric Lenses are standard C-mount lenses, available for industrial cameras with maximum sensor size of 1/3” (diagonal of 6mm).
>>Optical magnification: 0.52x-0.019x
>>FOV: 11.5mm -315mm, satisfying different requirements on field of view
>>WD: 25mm-545mm, satisfying different requirements on working distance
>>Distortion: <0.05%, telecentricity: <0.05°
>>Bi-telecentric design, very deep DOF, high resolution
>>Multi-layer coating, high transmittance
>>IP 65 for use in harsh industrial environments
>>Options between high resolution and deep DOF are available, satisfying different
>>Customized aperture is available
>>Working distance can be adjusted within certain limits as per customers’ requirements

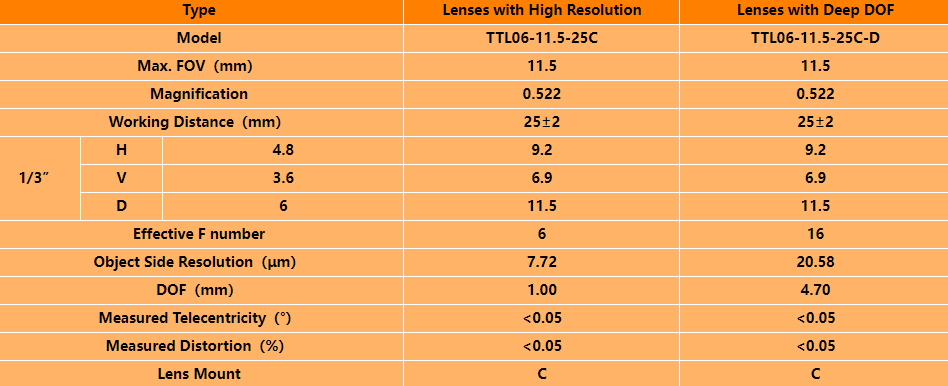

Specifications
OPTIGER Optoelectronics Technology Co., Ltd. (“OPTIGER” for short) is a high-tech enterprise focusing on machine vision products used for precision measurement and defect detection. OPTIGER not only provides high-precision bi-telecentric lenses, telecentric lenses, coaxial illumination lens systems, telecentric light sources and other product families, but also offers customized services.
OPTIGER’s products are designed by a team of experienced optical experts in Germany. Dr. Liu Lu, acting as CTO of OPTIGER, is a PhD degree holder of Oxford University with his research project funded by European Research Council, a top academic institution in Europe.
OPTIGER has sophisticated optical lens processing equipment, including an automatic centering machine made by Shonan in Japan and a NC grinding device made by Kojima Engineering in Japan, etc. The optical laboratory of OPTIGER is equipped with advanced and complete optical instruments, such as a laser interferometer from Zygo in the US, a spectrophotometer from PerkinElmer in the US, a spherometer from Hofbauer Optik in Germany, and a centering instrument from Kyoritsu Electric in Japan, etc.
OPTIGER also possesses cutting-edge optical vacuum coating machines which are manufactured by Satis in Switzerland and Leybold in Germany respectively. With a unique G+ coating technology, ghost and flare are eliminated more effectively and clearer image, higher transmittance and brighter view are attainable for lenses manufactured by OPTIGER. Besides, various coating types are available as per customers’ requirements, e.g., waterproof, anti-fog, anti-fouling, anti-scratch, laser damage resistant, near infrared, black optical wave, etc.
All lenses are delivered after strict quality control procedure and it is guaranteed by OPTIGER that for each one of the lenses:
* It meets design requirements within full range of wavelength.
*All the technical values provided are actual measured ones.
*Consistency in image quality in center and edge of the FOV is ensured.
* Luminance uniformity within full range of FOV is ensured.
* Its resolution meets design requirements within full range of FOV.
* It meets design requirements within full range of DOF.
