Electric Powertek Company Ltd.
Payment Terms: TT or LC
Ref Price : 6-3 USD/PIECE
Quality Product
Credit Purchasing
Credit Rating
Timely Delivery
Order On-line Tracking
Credit Services

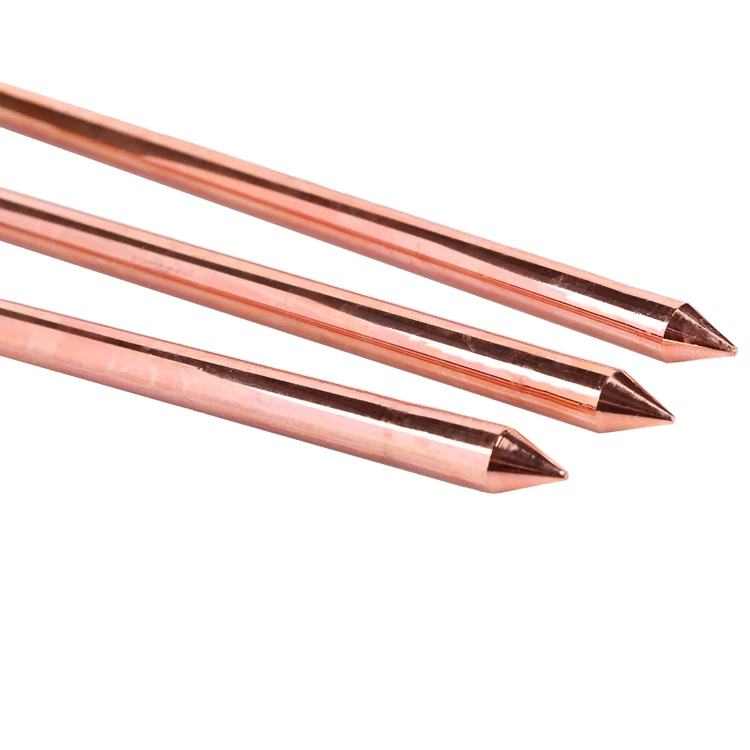

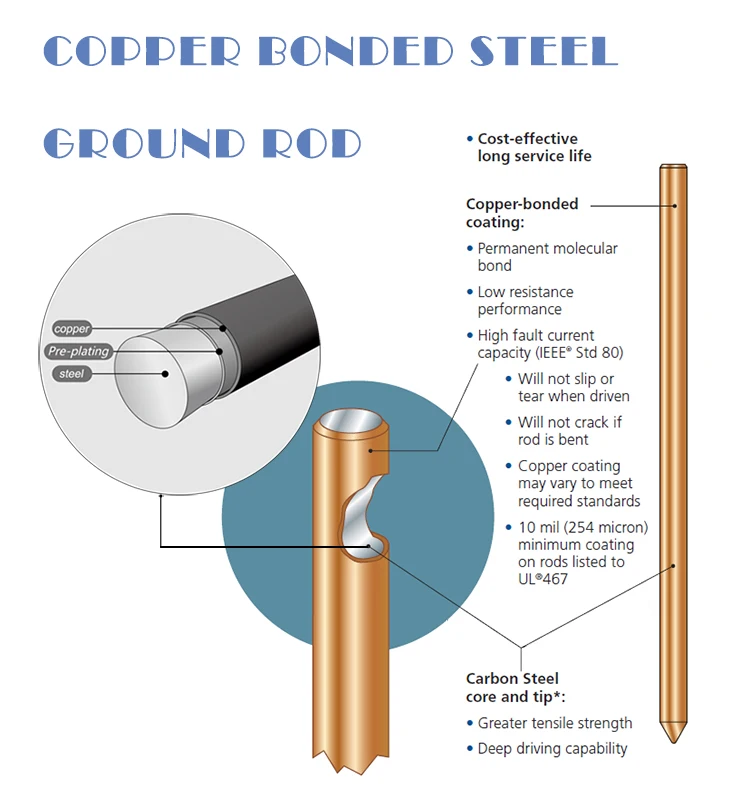

The Copper Bonded Ground Rod is engineered for superior conductivity and corrosion resistance, making it an essential component in any grounding system. Manufactured with a low carbon steel core, it is molecularly bonded with 99.9% pure electrolytic copper to ensure long-lasting performance in all soil conditions.
This ground rod is ideal for industrial, commercial, and residential applications. Its high tensile strength allows easy driving into the ground without bending or breaking. The copper cladding provides excellent resistance to oxidation, ensuring stable electrical performance over time.
As a trusted Ground Rod & Earth Rod Supplier, we ensure that every rod meets international standards, including ANSI, UL, and IEC requirements. Custom lengths and diameters are available to suit specific project needs.
Choose our Copper Bonded Ground Rods for dependable grounding performance, minimal maintenance, and extended service life. They are a cost-effective and environmentally friendly solution for grounding and lightning protection systems.
When requiring high speed production and enough copper coating at the same time, it needs copper ions deposit fast on the iron substrate. And, the good malleability and excellent bonding force put forward strict requirements of the manufacturing procedures. By using high concentration, high temperature, high current density and fully stirwith air, it achieves high speed deposition of the copper ions, qualifiedcopper coating (over 0.254mm), excellent bonding force,goodsmoothness and malleability of the copper coating.

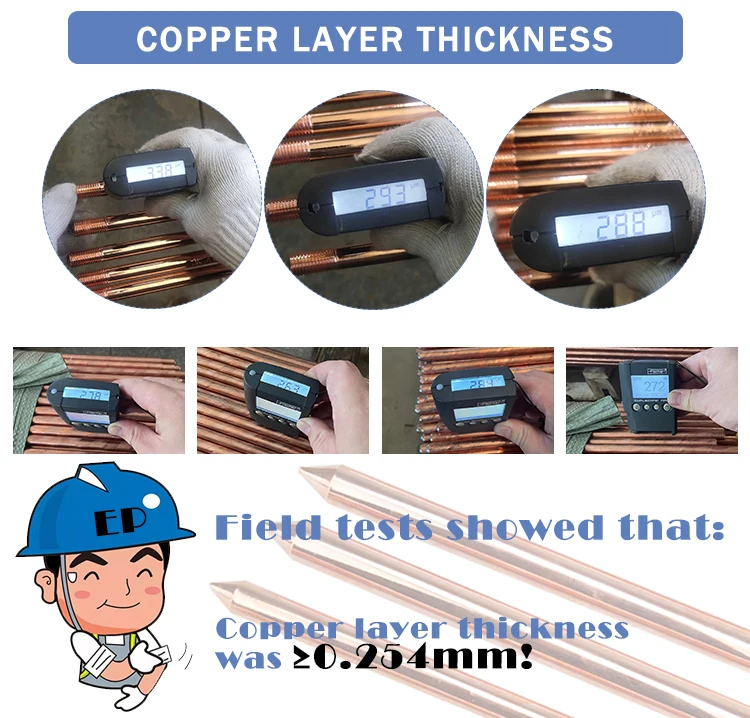

The thickness of the copper layer is very uniform, and the thickness difference of the copper layer at any point on a rod does not exceed 10um, which can completely avoid point corrosion and effectively extend the product life.
The steel core uses high-quality steel core with carbon content of 0.18%-0.2%, and the tensile strength is maintained at 650-700Mpa.
Perfect copper bonding force! Copper layer stripping test, copper and steel do not crack, processing thread copper layer does not fall off.

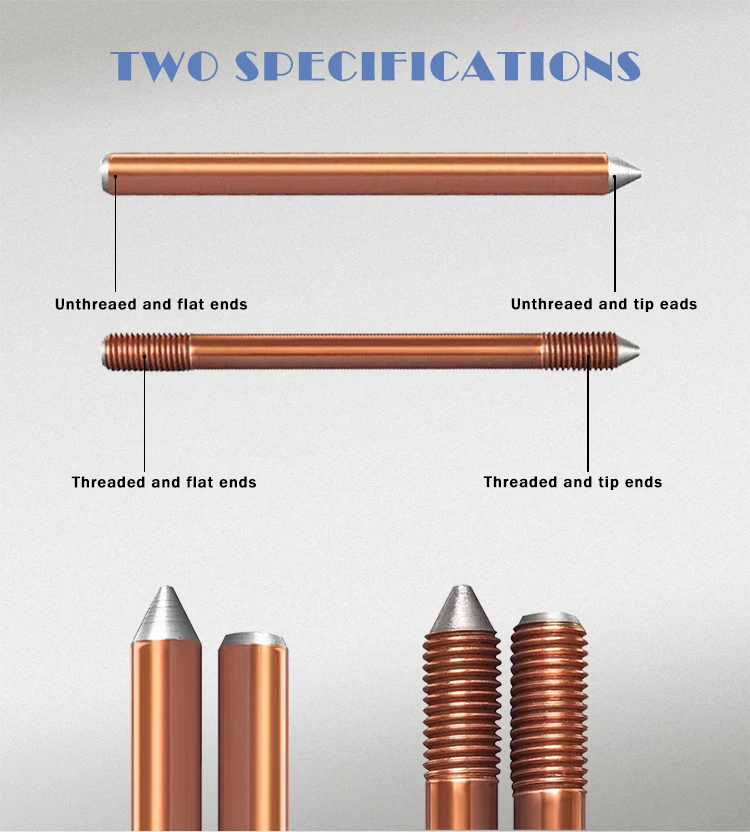

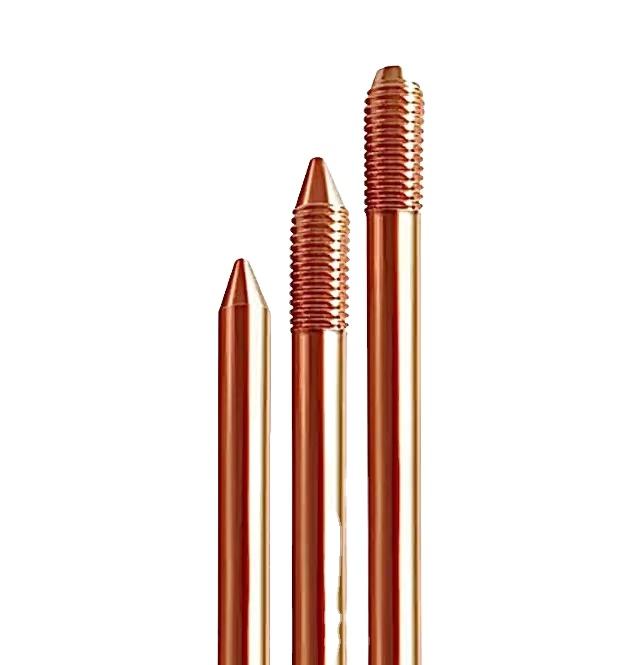

The copper bonded steel grounding rod is made of high-quality low carbon steel with good softness and carbon content of 0.10%-0.30%. The special process is used to evenly cover the high conductive electrolyzer copper on the surface of the round steel, and the thickness is 0.25-0.5mm. This process can effectively slow down the oxidation speed of the grounding rod in the underground. The single root can be pointed and flat, and can be pointed and threaded on the roll. The two ends of the combination need to be threaded on the roll. The thread is processed by the roller thread groove, which maintains the close connection between the steel and copper, ensures high strength, and has excellent electrical grounding performance.
Contact us today for product specifications, pricing, and expert guidance. Let us help you build a safer and more efficient grounding system.
Electric Powertek Company Ltd. was established on September 18, 2010, located in Liangzhao Power Industrial Area, Renqiu City, Hebei Province, just 110 kilometers from Tianjin Port. We mainly research, develop, and manufacture electric power line equipment, communication lines equipment, railway line fittings, electrical hardware, communication lines iron, electric iron fittings, ADSS, OPGW cable accessories, preformed guy grips, preformed spacer rods, optical fiber closures, optical fiber distribution frames, fiber optic cable transfer boxes, optical fiber cables, carbon fiber composite conductors, overhead insulated wire, ACSR, hot dip galvanized steel strand, power towers, steel tube rods, steel props, cable trays, plastic products, silicone rubber and porcelain insulators, lightning arresters, isolating switches, fuses, transformers, safety instruments, high and low voltage electrical appliances, and high and low voltage switchgear. Our factory covers an area of 36,000 square meters, providing users with thousands of electric power, communication, and railway products.
Our company strictly implements ISO9001:2008 and ISO14001. With first-class technological capabilities and a comprehensive pre-sales and after-sales service guarantee system, we have established a solid reputation among businesses and users. Based on honesty, responsibility, dedication, and flexibility, we continuously increase investment in technology and talent, relying on the strength of our company to strive for higher levels.
Our company has won bids in China's State Grid, railway, telecommunications, mobile, Unicom, radio and television, and other fields, becoming a designated manufacturer. Many of our products are exported to Russia, the United States, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil, Argentina, Chile, all nations of Southeast Asia, and other international markets.
We will work even harder to create value for customers and take responsibility for society. For inquiries and cooperation, please contact us.
