Tianjin Jianfeng Hydraulic Machinery Co.,LTD

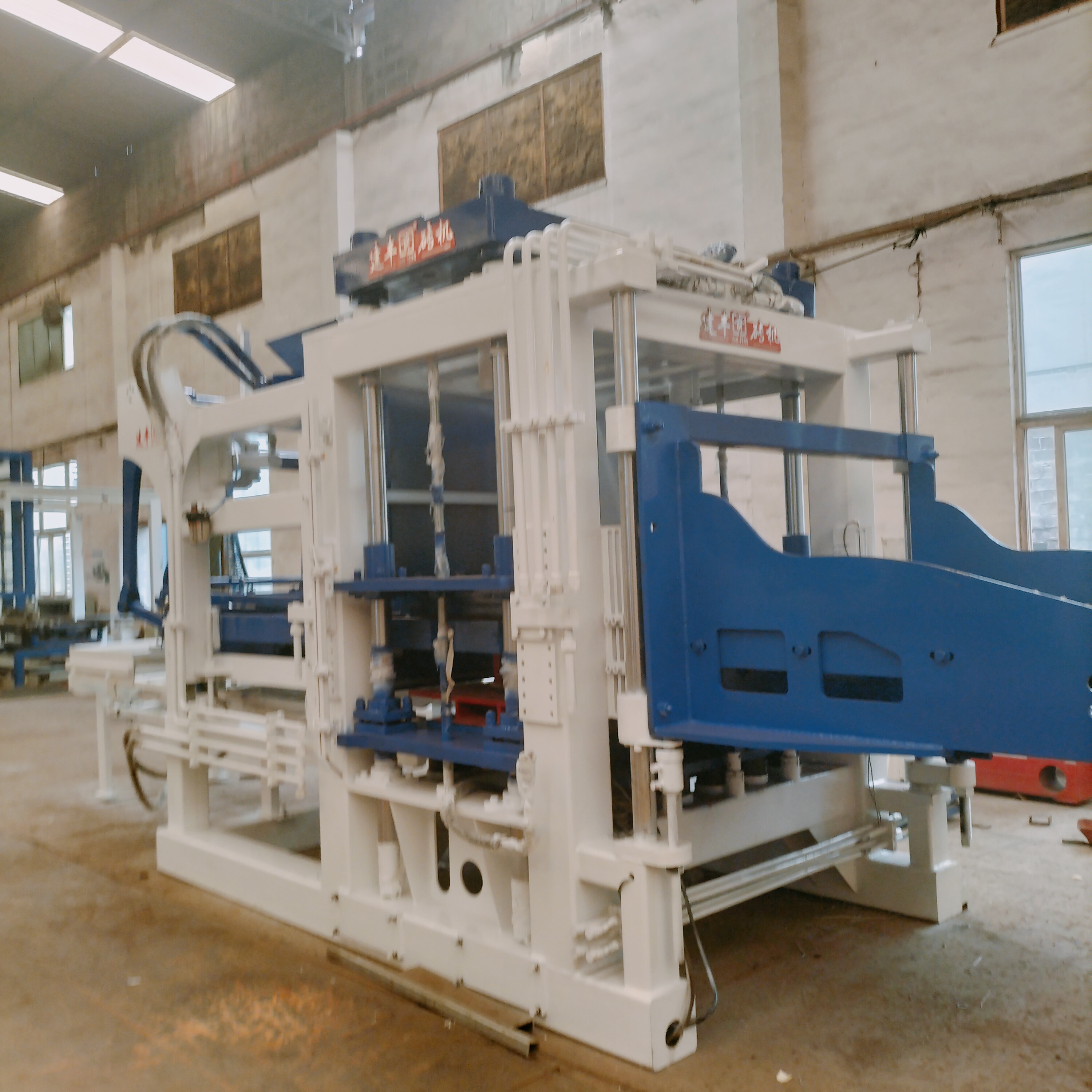

Multifunctional paver block machine

Payment Terms: TT or LC

Ref Price : 35000-90000 USD/SET

Supply Capability : 260 SET

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Specification:
    JF-QT10
  • Production:
    64800 pcs for paver block
  • Pallet size :
    1100*900
  • Payment Terms:
    TT , Others

Multifunctional paver block machine introduction


NO.

Main Technical Parameter

1

Actuating shock force

98KN

7

Installed capacity

44KW

2

Frequency of shock

6500(Time/Minute)

8

Weight of brick machine

10T

3

Amplitude

15mm

9

Maximum pressure

10T

4

Noise

95db(A)

10

Pallet size

1100×900× 25(mm)

5

Shock time

8(Second/Time)

11

Operation number

6 persons

6

Overall dimension

7265×2900×4100(mm)

12

Area size

≥5000 m2

Brick Type & Production

Product specification

(L ×W× H)mm

Brick picture

Pieces per Mould

Production per  hour

Produce period

Product specification

(L ×W× H)mm

Brick picture

Pieces per Mould

Production per  hour

Produce period

Solid brick

205* 105*60mm


45

Pieces

8100

Pieces

20Second/Time

Hollow block 390*140*120mm


12

Pieces

2160

Pieces

20Second

/Time

Hollow block 105*60*220mm


78

Pieces

14040

Pieces

20Second/Time

Hollow block 390*105*120mm



18

Pieces

3240

Pieces

20Second

/Time

Hollow block 115*75*170mm


60

Pieces

10800

Pieces

20Second/Time

Hexagonal block 230*200mm


12 Pieces

2160

Pieces

20Second

/Time

Hollow block

 80* 80*180mm


80

Pieces

14400

Pieces

20Second/Time

Octagonal block 240*240mm


12 Pieces

2160

Pieces

20Second

/Time

Tianjin Jianfeng Hydraulic Machinery Co., LTD was established in 1998,which is located in Jizhou District, Tianjin, China.We are professional brick & block machines and related machines manufacturer.Products including intelligent   new energy closed-loop production line ,automatic finger system,simple brick production line,different scale brick machines,automatic palletizer machine, packing machine,pallet stacker,brick mold and brick pallet etc. Our machine  is multifunctional and it could produce many kinds of bricks by changing molds.The equipment for processing brick machines,we have 23 sets CNC cars,3 sets large planer mill,4 sets plasma cutting machines,15 sets CNC machining centers, 65 sets whole plate line cutting equipment, 9 sets automatic vacuum carburizing heat treatment equipment ,more than 300 sets of grinding machines, drilling machines, boring machines and other processing equipment; At present,We've exported the machines to Nigeria,Japan,Kenya,Zambia,Mali,Oman,Vietnam,Mozambique,Laos,Albania,Russia,South Africa,Venezuela,Mongolia,etc more than 50 countries. The products are welcomed among domestic and overseas,thousands of customers benefit.On the basis of continuous development of company,we actively create the  enterprise brand of Jianfeng machinery. Obediencing to the integrity development,getting more profit for customers philosophy as the core strategy.We adhere to the management concept of sincerity,pursue higher quality.We sincerely join hands with our customers for common progress.Provide customers with continuously improved &real high-quality machines.Try to make larger contribution to construction, Strive for greater wealth for customers!
