Prefabricated Warehouse Hangar Workshop Building Light Steel Structure

Payment Terms: TT or LC

Ref Price : 800-1200 USD/TON

Supply Capability : 15000 TON

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

  • Quality Product Quality Product
  • Purchasing Credit Purchasing
  • Credit Rating Credit Rating
  • Timely Delivery Timely Delivery
  • Order On-line Tracking Order On-line Tracking
  • Credit Services Credit Services

Quick Details

  • Standard：
    AISI, ASTM, BS, DIN, GB, JIS
  • Grade：
    ASTM-A572, ST-52
  • Place of Origin：
    Tianjin, China (Mainland)
  • Brand Name:：
    Sino-Source
  • Type：
    Light
  • Application：
    Frame Part
  • Color：
    grey or customized
  • Surface Treatment：
    Painted or Hot-dipped galvanized

Product Detail


 Main Steel Frame  Column  Q235, Q345 Welded H Section Steel
 Beam  Q235, Q345 Welded H Section Steel
 Secondary Frame  Purlin  Q235 C and Z purlin
 Knee brace  Q235 Angle Steel
 Tie Rod  Q235 Circular Steel Pipe
 Brace  Q235 Round Bar
 Vertical and Horizontal Support  Q235 Angle Steel, Round Bar or Steel Pipe
 Maintenance system  Roof Panel  EPS Sandwich Panel /Glass Fiber Sandwich Panel /
 Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
 Wall Panel  Sandwich Panel / Corrugated Steel Sheet
 Accessories  Window  Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
 Door  Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
 Rainspout  PVC
 Live load on Roof  In 120kg/Sqm (Color steel panel surrounded)
 Wind Resistance Grade  12 Grades
 Earthquake-resistance  8 Grades
 Structure Usage  Up to 50 years
 Temperature  Suitable temperature.-50°C~+50°C
 Certification  CE, SGS,ISO9001:2008,ISO14001:2004
 Finishing Options  Vast array of colors and textures available
 Paint Options  Alkyd paiting, two primary painting, two finish painting
 (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.



Characteristics


1. Wide span: single span or multiple spans, the max span is 36m without middle column

2. Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to customers request

   3.Fast construction and easy installation: time saving and labor saving

   4.Long using lifespan: up to 50 years

   5. Nice appearance

   6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof, and energy conserving.

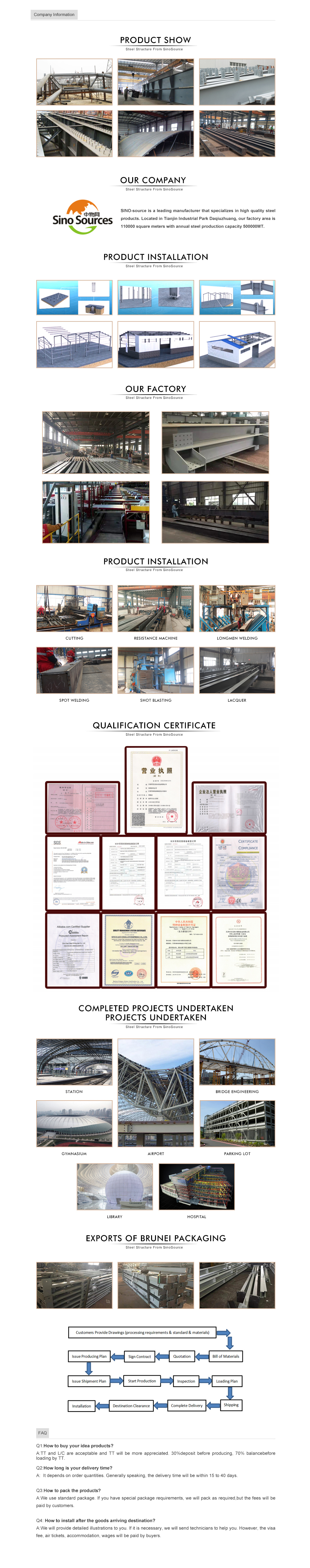

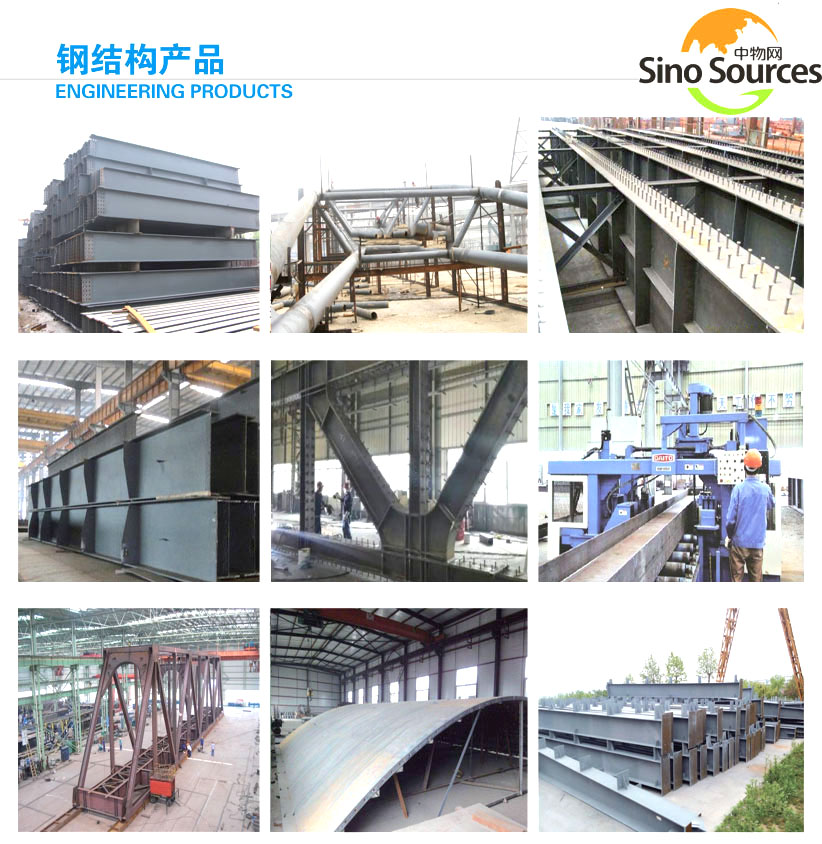

Products Show
