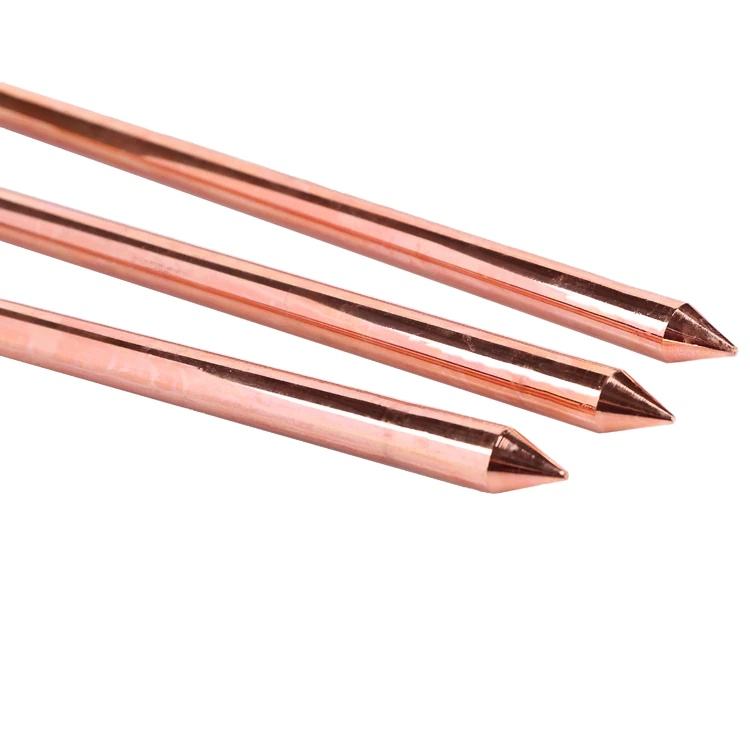

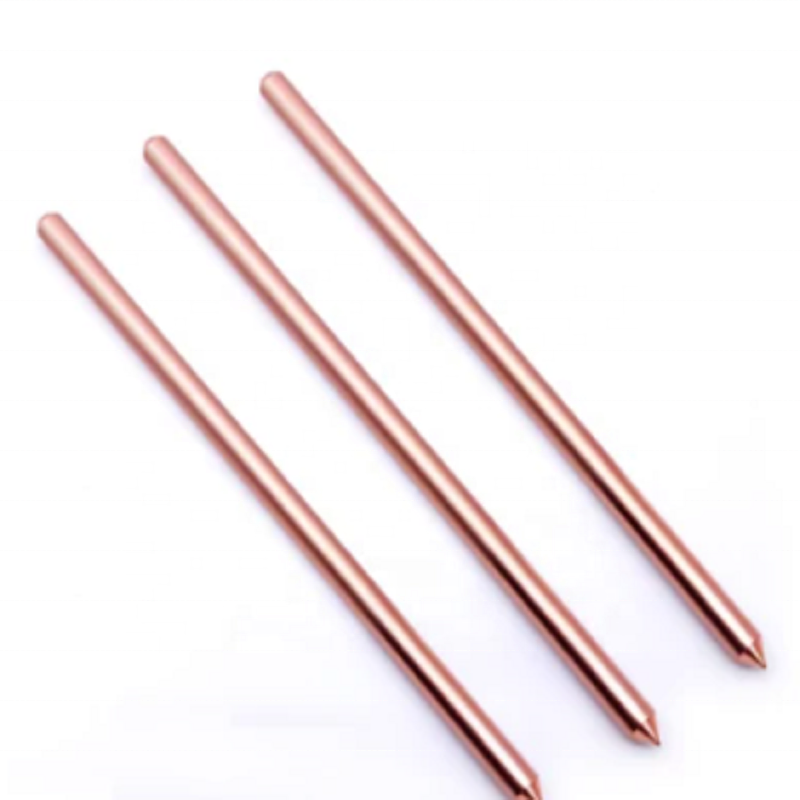

The Copper Clad Steel Electroplating Earthing Rod is engineered to provide long-lasting, reliable grounding for electrical systems in a wide range of applications. Constructed with a high-strength steel core and uniformly electroplated with pure copper, this earthing rod combines the conductivity of copper with the durability of steel. The result is a cost-effective and corrosion-resistant solution that meets international grounding standards.
This rod is ideal for use in telecommunications, power transmission, lightning protection, and construction sites. Its superior bonding between the copper and steel ensures no cracking or peeling, even under extreme environmental conditions. The electroplated finish offers consistent thickness, enhancing the rod's performance and lifespan.
As a trusted Ground Rod & Earth Rod Supplier, we provide products with excellent conductivity, mechanical strength, and resistance to corrosion. Our Copper Clad Steel Electroplating Earthing Rods are available in various lengths and diameters to suit specific grounding requirements.

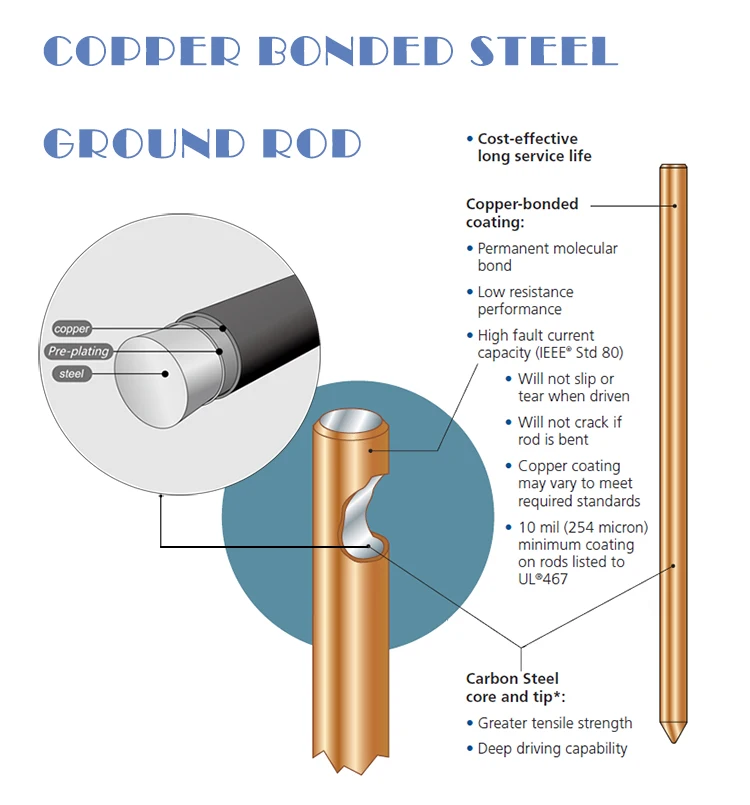

When requiring high speed production and enough copper coating at the same time, it needs copper ions deposit fast on the iron substrate. And, the good malleability and excellent bonding force put forward strict requirements of the manufacturing procedures. By using high concentration, high temperature, high current density and fully stirwith air, it achieves high speed deposition of the copper ions, qualifiedcopper coating (over 0.254mm), excellent bonding force,goodsmoothness and malleability of the copper coating.
The thickness of the copper layer is very uniform, and the thickness difference of the copper layer at any point on a rod does not exceed 10um, which can completely avoid point corrosion and effectively extend the product life.
The steel core uses high-quality steel core with carbon content of 0.18%-0.2%, and the tensile strength is maintained at 650-700Mpa.
Perfect copper bonding force! Copper layer stripping test, copper and steel do not crack, processing thread copper layer does not fall off.
If you're looking for a dependable solution for your grounding system, our expert team is ready to assist. Contact us today to learn more about our products, request a quote, or get guidance on the best earthing solution for your project.
Electric Powertek Company Ltd. was established on September 18, 2010, located in Liangzhao Power Industrial Area, Renqiu City, Hebei Province, just 110 kilometers from Tianjin Port. We mainly research, develop, and manufacture electric power line equipment, communication lines equipment, railway line fittings, electrical hardware, communication lines iron, electric iron fittings, ADSS, OPGW cable accessories, preformed guy grips, preformed spacer rods, optical fiber closures, optical fiber distribution frames, fiber optic cable transfer boxes, optical fiber cables, carbon fiber composite conductors, overhead insulated wire, ACSR, hot dip galvanized steel strand, power towers, steel tube rods, steel props, cable trays, plastic products, silicone rubber and porcelain insulators, lightning arresters, isolating switches, fuses, transformers, safety instruments, high and low voltage electrical appliances, and high and low voltage switchgear. Our factory covers an area of 36,000 square meters, providing users with thousands of electric power, communication, and railway products.
Our company strictly implements ISO9001:2008 and ISO14001. With first-class technological capabilities and a comprehensive pre-sales and after-sales service guarantee system, we have established a solid reputation among businesses and users. Based on honesty, responsibility, dedication, and flexibility, we continuously increase investment in technology and talent, relying on the strength of our company to strive for higher levels.
Our company has won bids in China's State Grid, railway, telecommunications, mobile, Unicom, radio and television, and other fields, becoming a designated manufacturer. Many of our products are exported to Russia, the United States, Australia, Canada, South Africa, Kenya, Tanzania, Zambia, Brazil, Argentina, Chile, all nations of Southeast Asia, and other international markets.
We will work even harder to create value for customers and take responsibility for society. For inquiries and cooperation, please contact us.
