Steel Structure Warehouse Drawings

< >

Collection

Steel Structure Warehouse Drawings

Payment Terms: TT or LC

Ref Price : 850-890 USD/TON

Supply Capability : 15000 TON

Loading Port : TianJin

Inquire Now

Global Trade Service Pledge

Quality Product
Credit Purchasing
Credit Rating
Timely Delivery
Order On-line Tracking
Credit Services

Product Detail
Company Profile

Quick Details

Standard：

Standard
Grade：

Q235 Q345 Low Carbon Steel
Dimensions：

Q345 China Standard Steel
Place of Origin：

China (Mainland)
Model Number：

FL-SS
Application：

Other
Product name：

Structural Steel
Material：

Q235Q345 Low Carbon Steel
Purlin：

C.Z Shape Steel Channel
Color：

Optional
Use：

Wareshouse
Surface treatment：

Hot Dip Gavalnized
Application Fields：

Steel Structure Workshop Warehouse Hangar House
Roofing：

Sandwich Panel. Single Steel Sheet
Certificate：

ISO9001:2008/ISO14001:2004

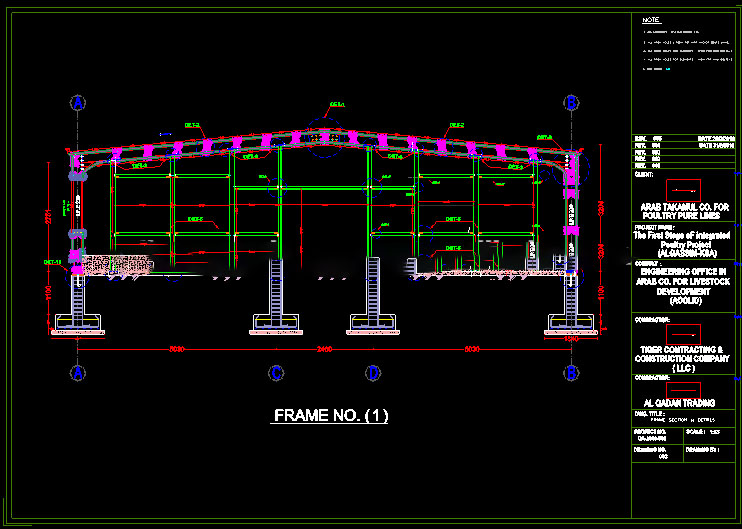

Steel Structure Drawing

Steel Structure Warehouse Drawings

Product Description

STEEL STRUCTURE

Steel structure building ware-house/workshop is a new type of light steel structure building system formed from a main steel framework comprised of H section, Z section and U section steel components, the roof and walls utilizing a variety of panels and other components such as windows, doors, and cranes.

STEEL BUILDING CHARACTERISTIC

1.Light-weightness and more resistance to earthquakes and strong winds.
2.Sustainability and less lifecycle cost thanks to low maintenance costs and highest quality materials, such as galvanized steel.
3.Shorter construction period with the help of modularity and error-free prefabrication of building    elements.
4.Environment-friendly thanks to reusable steel members and minimized wastes by efficient usage    of materials in the factory.
5.Functionality, provided by relocatable, replaceable and load carrying walls and efficient usage of    the space.

in Steel Frame	H,c, z,u section steel	Q235/Q345 steel
	Welding	Automatic submerged arc welding
	Rust removal	Sand blasting
	Surface finish	Alkyd paint or galvanized
	Intensive bolt	M20,Grade 10.9
Supporting System	Angle brace	L50x4,Steel Q235, processed and painted
	Horizontal brace	Steel Q235, processed and painted
	Column brance	Steel Q235, processed and painted
	Tie rod	Steel Q235, processed and painted
	Ordinary bolt	Galvanized bolt
Roof	Purlin	Steel Q235, galvanized and painted
	Roof panel	Sandwich panel or corrugated steel sheet
	Sky light	6mm thick PVC
	Accessories	Glass cement, self-tapping screws, etc.
	Edge cover	steel sheet profile trimming
	Gutter	sheet steel profile or galvanized sheet
	Down pie	Φ110PVC
Walls	Purlin	Steel Q235, painted
	Wall	Sandwich panel or corrugated steel plate
	Accessories	Glass cement, self-tapping screws, etc.
	Edge cover	steel sheet profile trimming
	Ventilation	Ventilation ball
	Doors & windows	Rolling door/sliding door PVC/alu/steel/window
