Quick Details

• hole distance：

  125 mm
• Warranty：

  2 years
• Place of Origin：

  Tianjin, China
• Value Core Material：

  Q195, Q215, Q235, Q345
• Selling Units：

  Single item
• Inspection：

  By SGS and by our QC department
• Single package size：

  1500X500X300 cm
• Material：

  q235 steel
• Project Solution Capability：

  Others
• Design Style：

  Industrial
• Model Number：

  scaffolding steel props
• type：

  heavy duty or light duty
• After-sale Service：

  Other
• MOQ：

  200pcs
• hole amount：

  18 - 20 pcs
• certification：

  BV certification
• Brand Name：

  YouFa Group
• Thickness：

  1.8mm, 2.0mm, 2.2mm, 2.4mm, 3.0mm
• Type：

  steel prop
• Single gross weight：

  10.000 KG
• Outer tube：

  48mm, 56mm, 60mm
• Application：

  Outdoor
• Inner tube：

  40mm, 48mm

Product Description

Adjustable galvanized formwork scaffolding steel prop for sale Detailed Description:

Scaffolding Galvanized Adjustable Steel Props Jack For Formwork System are widely used in different supporting areas. Slab formwork and table formwork with its high loading capacity may meet maximum stability for your site jobs. steel props also can be adjust to different sizes.

1.Diameter range on tube ( inner /outer): 40/48mm ; 48/56mm ; 48/60mm 2.Thickness range on tube: 1.6mm; 1.85mm; 2.0mm; 2.5mm; 3.0mm 3.Type: Heavy duty scaffolding prop/light duty scaffolding prop 4.Surface finish: painted, pre-galvanized, hot dip galvanized

Specification

Middle east Steel prop
Adjusted height	Outer/inner tube diameter	Tube thickness	Plate size	Surface treatment
1700-3000mm	48/60mm	1.6mm,1.8mm,2.0mm,2.2mm,2.5mm,3mm,3.5mm,4mm	120*120*4/5mm          150*150*4/5/6/8mm	painted             power coated electric galvanized pre galvanized        hot dip galvanized
1800-3200mm
2000-3600mm
2200-4000mm
3000-5000mm
Italian type steel prop
Adjusted height	Outer/inner tube diameter	Tube thickness	Plate size	Surface treatment
1600-2900mm	48/56mm	1.6mm,1.8mm,2.0mm,2.2mm,2.5mm,3mm,3.5mm,4mm	120*120*4/5mm 150*150*4/5/6/8mm	painted  power coated electric galvanized pre galvanized hot dip galvanized
1800-3200mm
2000-3600mm
2200-4000mm
Spanish type steel prop
	Outer/inner tube diameter	Tube thickness	Plate size	Surface treatment
1600-2900mm	40/48mm	1.6mm,1.8mm,2.0mm,2.2mm,2.5mm,3mm,3.5mm,4mm	120*120*4/5mm 150*150*4/5/6/8mm	painted  power coated electric galvanized pre galvanized hot dip galvanized
1800-3200mm
2000-3600mm
2200-4000mm

Exhibition

Certifications

Packing & Delivery

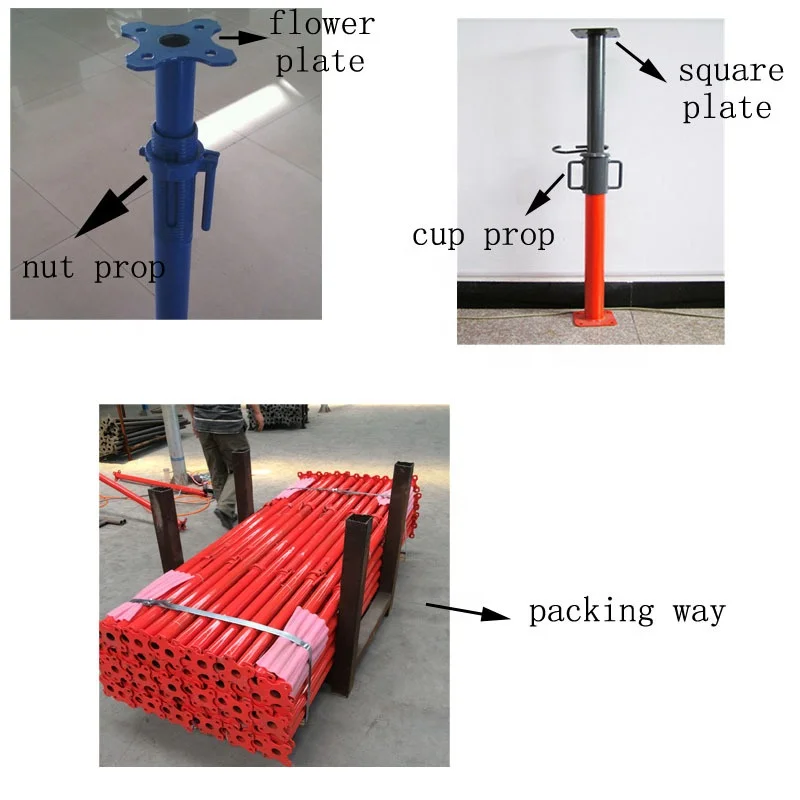

packed in bundle or according to clients requirement
